MANUS Metagloves Pro – Top Modules | Left & Right Pair
By MANUS
Replacement left and right electronics top modules for MANUS Metagloves Pro. Move modules between glove textiles for multi-user or multi-size deployments.
From$ 4,856.45
Pricing on request
Version: Metagloves Pro
Compatible Hardware
$ 6,277.85
Pricing on request
The MANUS Metagloves Pro are professional-grade motion capture gloves designed for high-precision finger tracking, reliable hand data, and repeatable motion capture across robotics, XR, research, simulation, and animation workflows.
Powered by MANUS’ advanced Electro Magnetic Field (EMF) tracking, Metagloves Pro capture detailed finger movement without optical occlusion, making them ideal for applications where hand motion must be tracked accurately even when cameras, markers, or line-of-sight tracking are limited.
With detachable top modules, swappable batteries, persistent calibration profiles, and support for multi-user glove textiles, Metagloves Pro scale from individual research setups to full production environments.
Features
- High-Precision EMF Tracking: Advanced EMF fingertip tracking captures detailed hand and finger motion with high accuracy, low latency, and no optical occlusion.
- 25 Degrees of Freedom: Captures a full anatomical hand model, including joint-level movement and subtle finger motion for detailed digital hand reconstruction.
- Fast Calibration: Persistent calibration profiles help reduce setup time and allow users to move between sessions, takes, glove textiles, or battery swaps with minimal interruption.
- Detachable Top Module: The electronics are built into a removable top module, allowing teams to share modules across different glove textiles and user sizes.
- Modular & Scalable Design: Swappable glove textiles, interchangeable batteries, and replaceable components support multi-user labs, production teams, and long-running research environments.
- Wired or Wireless Operation: Use USB-C for wired workflows or the MANUS wireless dongle for Bluetooth-based wireless operation up to 15 meters, depending on the environment.
- Professional Pipeline Integration: Stream glove data into Unreal Engine, Unity, MotionBuilder, Xsens MVN, OptiTrack, Qualisys, and other supported workflows, or export data for production and analysis.
- SDK & Custom Workflows: MANUS Core and SDK support allow teams to build custom integrations for robotics, XR interaction, motion science, digital twins, and AI training pipelines.
Technical Specifications
- Tracking Technology: 5 EMF fingertip sensors with 6 DOF tracking
- Data Output: 3-axis positional and 3-axis rotational data
- Degrees of Freedom: 25 DOF anatomical hand tracking
- Sampling Rate: 120Hz
- Motion-to-Data Latency: 30ms wired / 50ms wireless
- Connectivity: USB 2.0 Type-C wired connection
- Wireless Communication: MANUS wireless dongle via Bluetooth 5.0
- Wireless Range: Up to 15 meters / 49 feet, depending on environment
- Battery Type: Interchangeable Metagloves Pro battery
- Battery Life: Up to 3 hours of continuous use
- Charging Time: Approximately 2 hours
- Charging: USB Type-C, 5V / 0.5A
- Weight: 167 grams / 5.88 oz per medium glove with electronics and battery
- Glove Type: Full-finger textile glove
- Available Sizes: Multiple glove sizes available
- Software: MANUS Core 3.0 or later
Tracking Environment Note
MANUS Metagloves Pro use Electro Magnetic Field (EMF) tracking to deliver high-precision finger movement data. Like other EMF-based tracking systems, performance can be affected by strong magnetic fields, large conductive metal objects, magnetized tools, motors, or nearby electronic devices that interfere with the local tracking field.
For best results, avoid operating the gloves directly against large metal objects, active motors, magnetized tools, or electronics that may generate magnetic interference. In these environments, users may experience temporary tracking jitter, drift, or reduced positional accuracy. Performance typically improves when the gloves are moved away from the interfering object or device.
In the Box
- MANUS Metagloves Pro sensor gloves, left and right
- Metagloves Pro top modules
- MANUS wireless dongle
- Swappable batteries
- USB-C cables
- Reflective optical markers
- Getting Started Guide
- Travel case
Note: Third-party adapters, including VIVE and Xsens adapters, are sold separately.
Software
For new deployments, choose MANUS Core Motion Capture for motion capture, animation, previz, and XR workflows, or MANUS Core Robotics for teleoperation, data collection, robot learning, and developer workflows. Both are available as annual subscriptions or perpetual licenses. Existing Core 3 perpetual licenses continue to run; MANUS support and updates for Core 3 end December 31, 2026.
Use Cases
MANUS Metagloves Pro are ideal for detailed finger tracking in robotics research, teleoperation, VR training, motion capture, digital twins, motion science, ergonomic analysis, virtual prototyping, and human-machine interaction research.
For robotics and embodied AI workflows, the gloves provide high-fidelity human hand data that can support dexterous manipulation research, demonstration capture, imitation learning, and remote control of robotic hands.
FAQ
Are MANUS Metagloves Pro fully magnetically immune?
No. MANUS Metagloves Pro use EMF tracking, which is highly accurate in normal operating environments but can be affected by strong magnetic fields, large metal objects, magnetized tools, motors, or nearby electronics.
Can I use the gloves while holding metal objects?
Light interaction with small metal objects may work depending on the object and environment, but holding or working directly against conductive or magnetized metal may cause temporary tracking jitter, drift, or reduced accuracy.
What types of objects can interfere with EMF tracking?
Large metal surfaces, magnetized tools, active motors, robotic hardware, industrial machines, and electronic devices can interfere with the tracking field and affect sensor accuracy.
How do I get the best tracking performance?
Use the gloves in an open tracking area, keep the hand modules and fingertip sensors away from strong magnetic sources, and test the setup before production use if your workflow involves metal tools, robotic hands, or industrial equipment.
Are the gloves good for robotics and teleoperation?
Yes. Metagloves Pro are widely used for robotics research, teleoperation, motion data capture, and dexterous manipulation workflows. If the robot, tool, or workcell contains significant metal or active electronics, we recommend testing the gloves in the final environment and adjusting the setup to reduce interference.
Your Configuration
Total
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:Pricing on request
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
Replacement Top Modules for MANUS Metagloves Pro — supplied as a handed pair, left and right. The Top Module is the electronics half of the system: hand module, battery, and wireless dongle. It detaches from the sensor glove, so one set of modules can serve several users.
How the Metagloves Pro system splits
A complete Metagloves Pro set is two parts:
- Top Modules — this product. Electronics, batteries, wireless dongle.
- Sensor Gloves — the sized textile carrying the fingertip sensors.
Left and right are not interchangeable
Each module is moulded and marked for a specific hand — Left and Right. This product ships as a matched pair, so a single order covers both hands. The contact array and battery bay are mirrored between them.

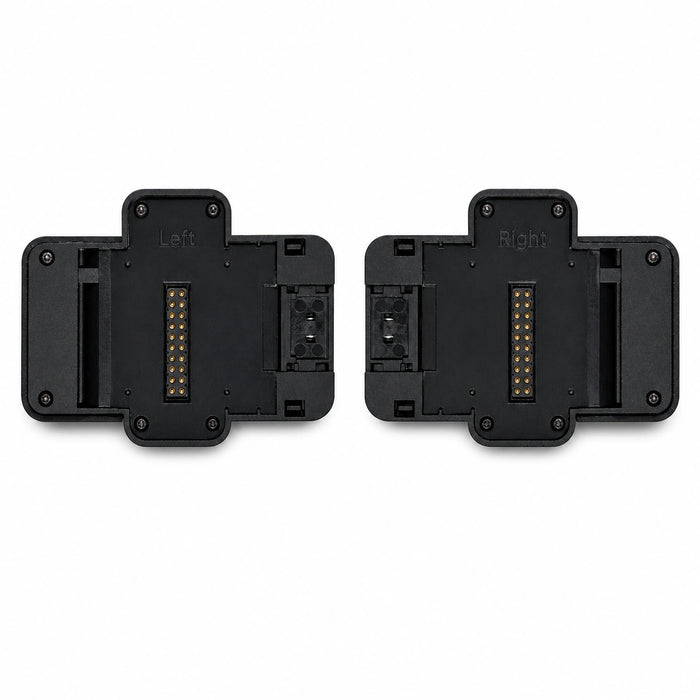

What's on the module
- Gold-plated contact array — data and power interface to the sensor glove
- Dedicated battery contact block with release latch and status LED
- USB-C port for wired operation and charging
- Power / pairing switch
- Glove status LED — green solid wired, blue solid wireless, blue breathing connecting, white blinking pairing, red blinking low battery
- Module release latch — three-step lock to the sensor glove, no tools
- Universal Adapter rail on the mounting face for Xsens, optical, VIVE, or Quest tracker adapters
Battery count changed July 2026
Top Modules ordered from 1 July 2026 include 2 batteries instead of 4. If you're matching an older set, budget an extra battery set.
When to order spares
- Add actors without buying complete systems — pair spare modules with existing sensor gloves
- Redundancy on production shoots where a failure stops the floor
- Shared labs rotating modules across sized gloves per student
- Repair after damage to the electronics rather than replacing the whole set
Compatibility
- MANUS Metagloves Pro Sensor Gloves — sizes XS, S, M, L
Not for Pro Haptic. The Haptic modules drive the finger actuators and are a different part — see Pro Haptic Top Modules. Requires MANUS Core 3.0 or later.
Ordering and support
Knoxlabs is an authorized MANUS reseller. MANUS item code 300122. Ships on the same purchase order as gloves, adapters, and MANUS Core licenses.
