XELA Robotics uSkin uSPa 46 tactile patch

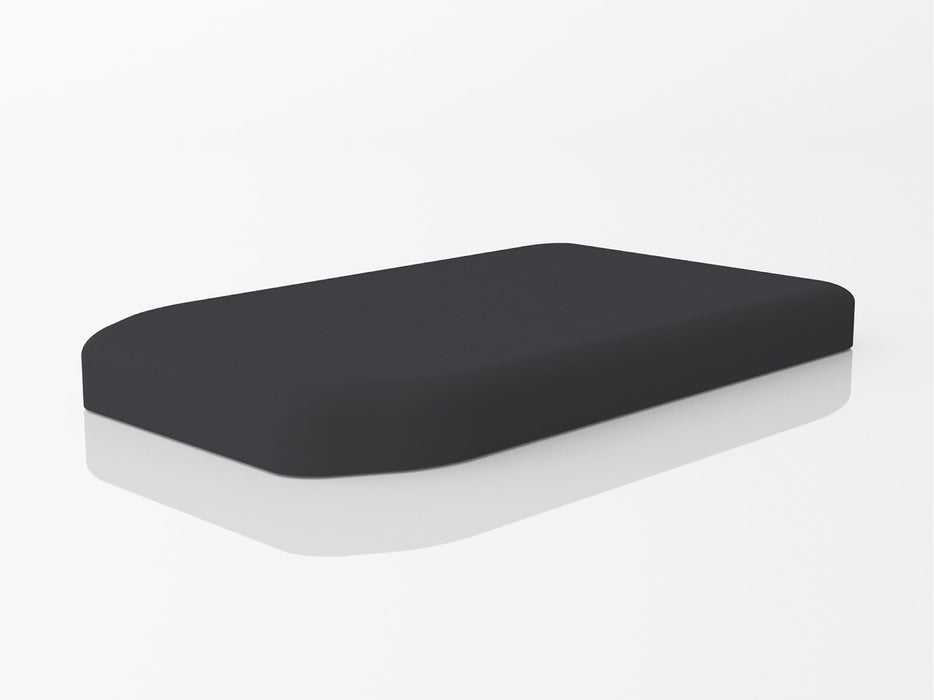

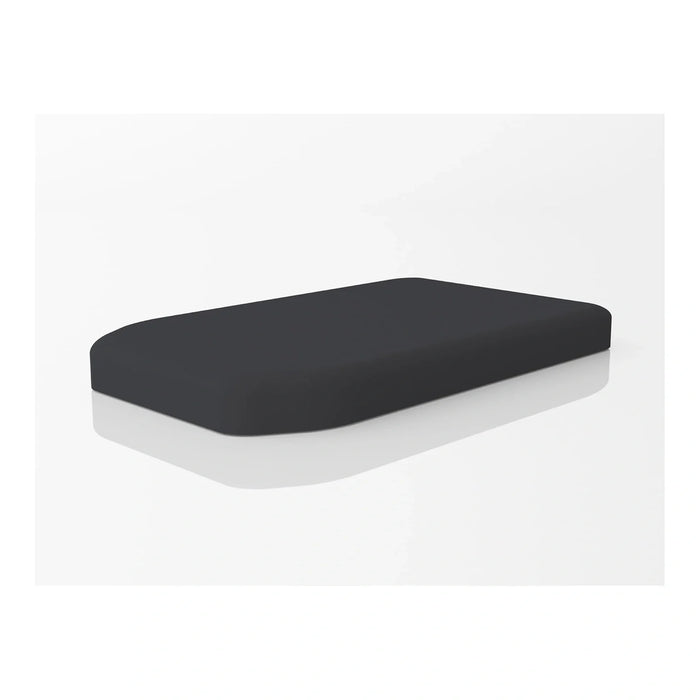

XELA Robotics uSkin uSPa 46 Tactile Patch

by XELA Robotics
Contact for Pricing

Contact for Pricing

Our team will respond within 1 business day with pricing and availability.

Return Policy
Shipping and delivery
Overview

The larger uSkin patch: 24 taxels across a 30.6 × 50.6 mm area at under 5 mm thick. Sized for a palm, a forearm, or a wide gripper pad where the uSPa 44 would leave most of the contact surface blind.

Specifications

  • 24 taxels across a 30.6 × 50.6 mm sensing area
  • 4.9 mm thick
  • 3-axis force per taxel (shear plus normal)
  • 500 Hz sampling rate
  • 1,500 gf per-point range, 3,000 gf overload
  • 0.1 gram-force resolution
  • CAN interface, daisy-chainable, single USB link to host
  • ROS and ROS 2 compatible

See also dexterous hands, grippers and the robotics hub.
