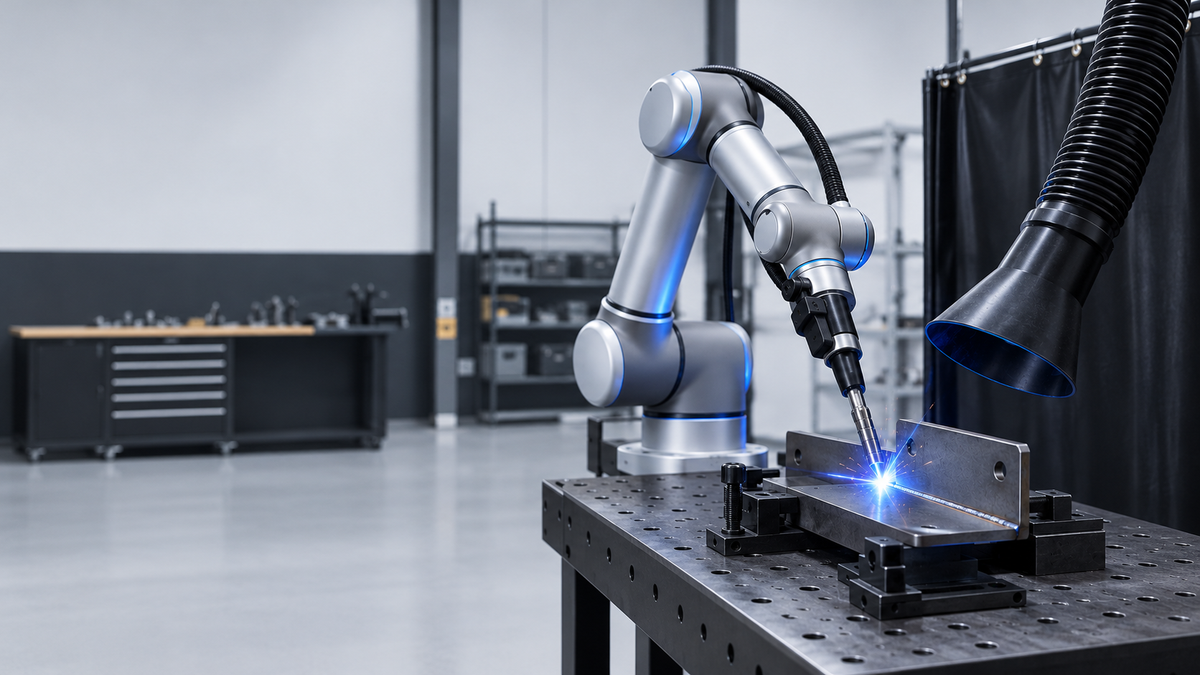

A cobot welding cell is more than a robot arm. The torch, power source, fixture, guarding and fume extraction decide whether it works on your part.
This guide is for shops that weld the same joint again and again and want to know whether a collaborative robot could take on part of that work. It does not promise results. Whether a weld can be automated, and at what quality, depends on the part, the process and testing on your application.
You may also see it called a robot welding cell, a cobot welding system or a welding cobot package. The names vary, but the roles do not: the arm moves the torch, and the cell makes the weld repeatable.
Work envelope, mounting and access must match your actual part and fixture.
Process, power source and torch must work together and suit the weld.
How the part is presented, how repeatably, and how fast it changes over.
Guarding and fume handling planned for your site and operator workflow.
Who programs, validates, commissions and maintains the job.
Part first, robot second. A good first review looks at the weld before the hardware: material and thickness, joint access, process, and how the operator loads and checks parts. The same logic applies to machine tending and pick-and-place or end-of-line palletizing.
Welding adds hazards that a collaborative robot’s design does not remove, so safety is planned for the whole cell, not only the arm.
To be fully collaborative, all risks must be reduced to a level acceptable for a person to work directly with the automation. The risk assessment should cover arcs, sparks, fumes, pinch points, UV light, heat and electrical shock (AWS). Where it is not collaborative, fences, light curtains and scanners stay important (SICK). Knoxlabs confirms guarding for your site and application.
ISO 10218-2:2025 covers integrating, commissioning, operating and maintaining robot cells. ISO states it does not cover hazards from processing material such as metal, or hazardous radiation, so the weld process needs its own safety review. SICK adds that the 2025 revision takes in the old ISO/TS 15066 collaborative requirements and recommends a risk assessment early.
The robot moves the torch, but welding still produces smoke with harmful metal fume and gases. OSHA says prolonged exposure may cause lung damage and several cancers (OSHA). Operators who load parts and check welds share the same air.
OSHA and AWS point to the same main control, local exhaust ventilation, which captures fume at its source.
General information, not a safety or compliance assessment. A qualified person should assess your cell before it goes into use.
Cells are quoted per application, so this guide lists no figures. These five things move the number.
Your existing power source and welding equipment, and whether they suit the process.
Work envelope, mounting and access for your part and fixture.
A part that is hard to present consistently adds work before the first arc.
Guarding, extraction and electrical needs, confirmed for your site.
Who programs, validates, commissions and maintains the cell.
For a current quote, send the material, part size, weld type, volume and the power supply you already have through a quote request, or talk through the welding task first.
A clear process and a repeatable part make the best starting point. If the same joint comes back across batches, it is worth reviewing.
| A good starting point | Needs more discussion first |
|---|---|
| The same joint comes back across batches | The part changes from job to job |
| Material and thickness are known | Material, thickness or joint access are unclear |
| A fixture plan presents the part the same way each time | No plan yet for how the part will be held |
| Named owners for fixture, safety and quality | Nobody yet owns safety or how the weld is judged |
A demonstration is not a qualified weld. Testing settles whether a cell can produce the weld you need. Agree how the application will be evaluated, and who owns the result, before the configuration is final.
Knoxlabs scopes feasibility first. Performance and weld quality are confirmed through testing on your application.
Share a photo or drawing, the material, the joint, the process and the batch size.
Review reach, equipment, fixturing, safety and who owns integration.
Agree how the application will be evaluated before a final configuration is committed.
You do not need a finished specification. An early idea or an equipment list is enough to start.
There is no single figure. Knoxlabs quotes each cell for the application, and the price depends on what you already own, reach, fixturing, safety and fume extraction, and who programs and commissions the cell. Send your part details through a quote request.
Not automatically. A cobot’s design does not make a welding application collaborative. That depends on a risk assessment of the whole cell, including the arc, spatter, heat and fume. Knoxlabs confirms guarding for your site and application.
Some configurations support hand-guided teaching. Knoxlabs confirms the exact hardware and workflow rather than assuming it fits every weld.
The aim of a review is to look at repeatable tasks and the operator’s workflow, not to promise labor replacement.
No. An early-stage use case is enough. A photo can start the discussion, though a responsible quote may also need drawings, process details and a fixture review.
Review box flow, pallets, floor space and shift pattern before choosing a cobot cell.
Explore palletizing →Scope the arm, end effector, tooling, sensing and controls around the station.
Explore cobot cells →Bring together robot components, sensing and the practical configuration work between them.
Explore robotics solutions →If the same joint returns across batches, show us the part, process, fixture and quality criteria. Knoxlabs can scope candidate robot and welding hardware, then identify what must be proven on your application. A drawing or part photo is a good first step.
Final recommendations depend on application review.
