XELA Robotics uSkin uSPa 21 Tactile Patch
Cable Length: 300 mm
Magnetic Compensation: None
Force Calibration: Standard
Your Configuration
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview

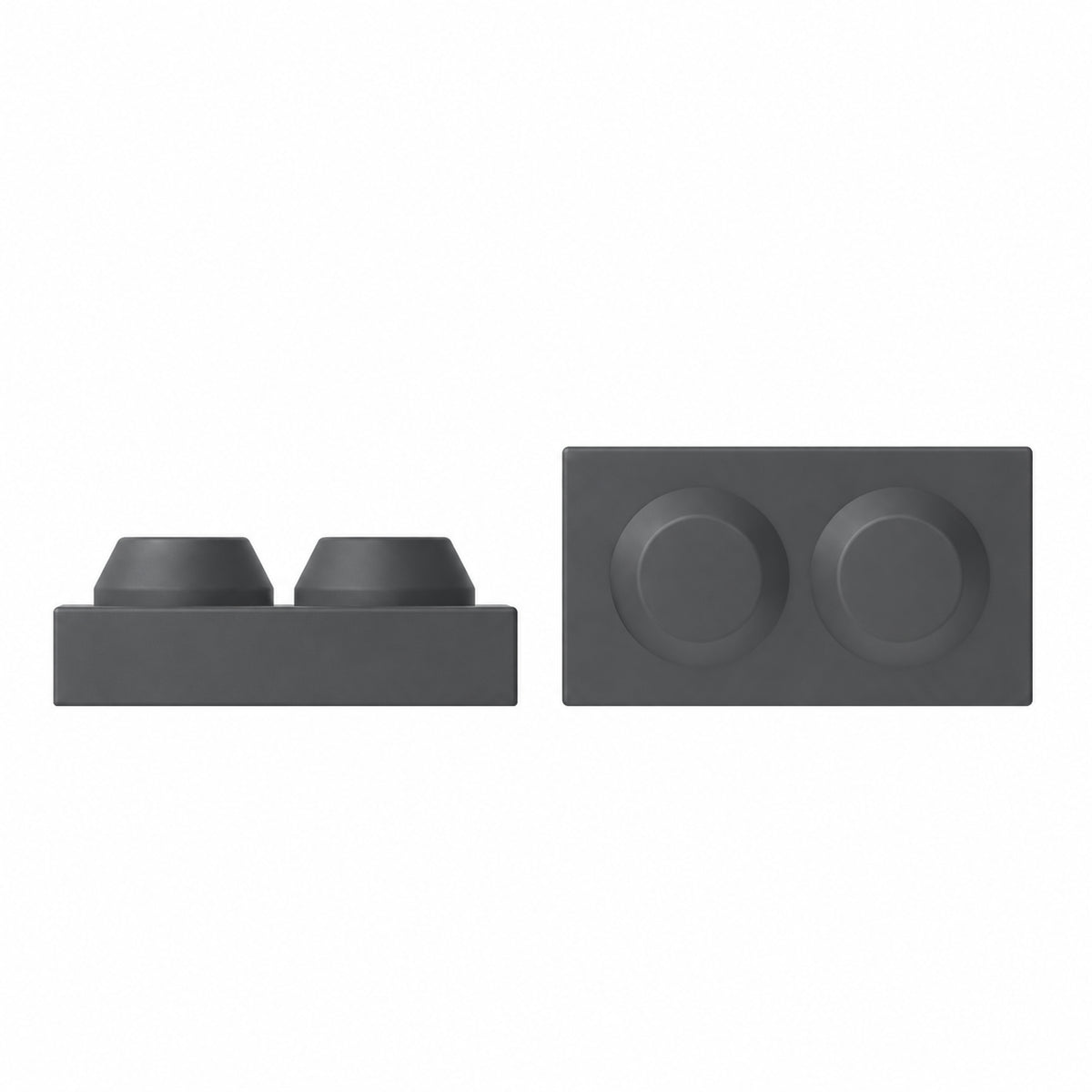

XELA Robotics uSPa 21 is a uSkin tactile patch with 2 taxels, measuring shear force in X and Y and normal force in Z. Choose the cable length and sensor options for your application.
Specifications and compatibility
- 2 taxels
- 6.3 × 11 × 4.7 mm
- 4-wire sensor connection
- 3-axis tactile sensing: shear in X/Y and normal force in Z
What is included
Readout/visualization software and standard cables included; microcontroller sold separately.
Software and calibration
XELA readout and visualization software is included as described below. The catalog describes tactile measurement support for Windows, Linux, ROS and ROS 2. Host support depends on the selected CAN-USB adapter: ESD supports Windows and Linux; VSCOM supports Linux.
Standard calibration uses XELA’s universal parameters. Individual calibration is a paid option for configurations where offered. Magnetic compensation is an optional feature for configurations where offered. Ask Knoxlabs to confirm your complete sensor, controller and adapter setup.
Standard configurations
| Supplier product code | Configuration |
|---|---|
| X0B00000A | Cable Length: 300 mm; Magnetic Compensation: None; Force Calibration: Standard |
| X0B00100A | Cable Length: 300 mm; Magnetic Compensation: None; Force Calibration: Individual |
| X0B01000A | Cable Length: 300 mm; Magnetic Compensation: Corner; Force Calibration: Standard |
| X0B01100A | Cable Length: 300 mm; Magnetic Compensation: Corner; Force Calibration: Individual |
| X0B10000A | Cable Length: 500 mm; Magnetic Compensation: None; Force Calibration: Standard |
| X0B10100A | Cable Length: 500 mm; Magnetic Compensation: None; Force Calibration: Individual |
| X0B11000A | Cable Length: 500 mm; Magnetic Compensation: Corner; Force Calibration: Standard |
| X0B11100A | Cable Length: 500 mm; Magnetic Compensation: Corner; Force Calibration: Individual |
| X0B20000A | Cable Length: 900 mm; Magnetic Compensation: None; Force Calibration: Standard |
| X0B20100A | Cable Length: 900 mm; Magnetic Compensation: None; Force Calibration: Individual |
| X0B21000A | Cable Length: 900 mm; Magnetic Compensation: Corner; Force Calibration: Standard |
| X0B21100A | Cable Length: 900 mm; Magnetic Compensation: Corner; Force Calibration: Individual |
Custom configurations — request a quote
These supplier configurations require a project-specific quotation. Share the product code, quantity, target robot and desired delivery date with Knoxlabs.
| Supplier product code | Configuration |
|---|---|
| X0B90000A | uSPa 21 Custom No No |
| X0B90100A | uSPa 21 Custom No Yes |
| X0B91000A | uSPa 21 Custom Corner No |
| X0B91100A | uSPa 21 Custom Corner Yes |
Application notes
Nearby magnetic fields, magnets and ferromagnetic materials can influence measurements. Confirm suitability in your application; reference sensing and magnetic compensation may be appropriate. Follow XELA’s operating limits and installation guidance. XELA’s sensor remarks state a maximum of 30 N perpendicular force per sensor cell and a shear-pressure limit of 15 kPa.
Pricing, availability and delivery
Request a quote for current pricing, availability, lead time and the complete configuration. Shipping, local taxes, import fees and duties are not included in XELA’s listed product prices and must be confirmed for your order.
