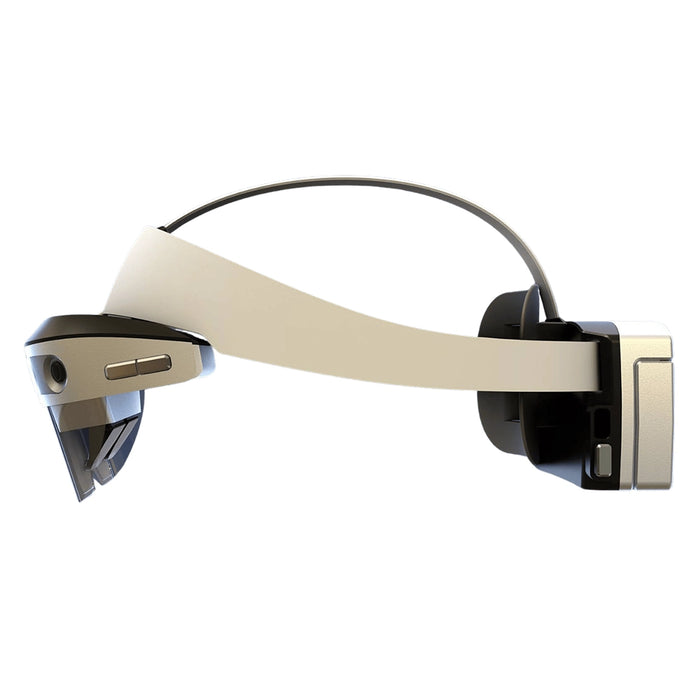

HMS SiNGRAY G2 Enterprise AR Glasses

Three Core Challenges of Industrial AR, Solved!
• Lightweight
• High Clarity
• Comfortable Fit
Delivers sharp visuals a n d seamless interaction in mission-critical settings.

BirdBath Optical System for All-Day Wear
Comfort Meets Endurance
Ready for long shifts and nonstop performance.

G2-Enterprise AR Glasses for Professional Solutions

Unmatched Visual Clarity
• Dual 1920 x 1200 SONY Micro-OLED Displays
• 1000 cd/m? peak brightness for full visibility

Ultra-Precision Optical Capture
• DFOV 51° BirdBath Optical System
• <1.5% Dynamic Distortion
• 100,000:1 Contrast Ratio

Smarter Faster Processing
• Multi-modal architecture with heterogeneous
processing power
Qualcomm QCS8550 + Intel Myriad X VPU

Industrial-Grade Spatial Tracking
• Kilohertz-Level SLAM
• Switchable 6DOF Tracking Modes
• $0.5° Tracking Accuracy @ 3m

Advanced Sensor Fusion
• Quad DFOV 166°Fisheye Cameras
• High-Res 8MP RGB Camera
• 9 axis IMU

Designed for Industrial Use
• Swappable 7.6V / 2500mAh Battery
• Voice control enabled

Tough Enough for Any Job
• Engineered for factory floors, fieldwork, and high-intensity logistics environments.

Optical VST Method
Bird Bath Optical System

Display Panel
1920 x 1200 x 2 / SONY Micro OLED

Frame Rate
90Hz

FOV
D: 51°, H: 45° ,V: 28°

Contrast Ratio
100,000:1

Light-blocking Lens
Electrochromic

PPD
43 / Pixels Per Degree

Eye Box
12mm x 8mm

Interpupil Distance
63 mm

CPU
Qualcomm QCS8550 (8Gen2)
RAM 12GB, ROM 256GB, TF/MicroSD Card: 2TB

VPU
Intel Movidius Myriad X

Camera Sensors
- Stereo VSLAM Fisheye Cameras / 640x480@50fps, DFOV166°
- RGB Camera - Depth ToF Camera / AF, 8MP@30fps, DFOV79°
- Depth ToF Camera / VGA/QVGA@30fps, 0.2 - 4 Meters

IMU Sensor
9 axis 1000Hz

Other Sensors
Geomagnetic, Proximity, Ambient Light

SLAM Engine
100 Hz, 6DoF

Audio
Stereo SPK | Mic / For voice control UACAPI

Battery
2500mAh, 7.6V / Replaceable
Hot-Swappable Battery / Support 3-Minute Swap

Water/Dustproof
IP65

External Interface
USB Type-C

Connectivity
BT 5.2; Wi-Fi 6, GPS

Indicator Light
Monochrome Light x 1

Main Chassis
Aluminium + Plastic

SDK
SnapDragon Spaces SDK + Unity Native SDK
