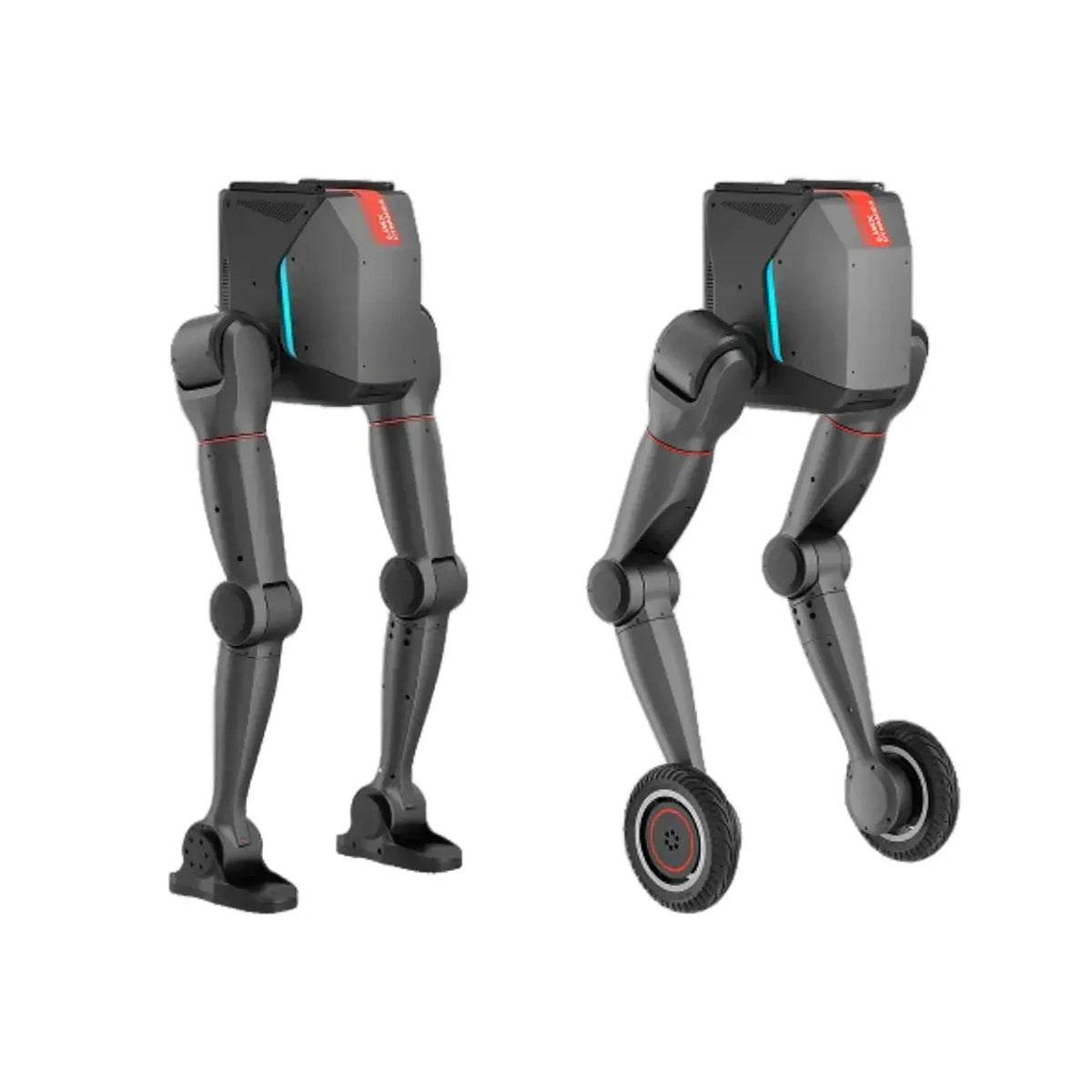

LimX TRON 2 Two-in-One Motion Suit - EDU Edition
A modular TRON 2 motion-development configuration for bipedal and wheeled robotics research, reinforcement learning, navigation, control, and education.
From$ 22,999.99
Pricing on request
US freight/customs: $4,200 per robot at checkout; international delivery by quote.
Bundle: Bundle #2 - Two-in-One Motion Suit
Your Configuration
Total
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
Ships within 5-10 days
- Payment in full is required before supplier shipment.
- US freight and customs: $4,200 per robot, charged separately at checkout. The charge includes the supplier's freight/customs amount plus handling. International destinations and special delivery requirements need a separate quote. Sales tax, if applicable, is calculated at checkout.
- Supplier Bundle #2, EDU Edition.
- Bundles #2 and #3 are not upgradeable to the Three-in-One configuration. Select Bundle #1 if you need both manipulation and mobility.
- US Wi-Fi setup is required. Review the FCC documentation and model-specific supplier instructions below.
Product details
Overview
A modular TRON 2 motion-development configuration for bipedal and wheeled robotics research, reinforcement learning, navigation, control, and education.
- Interchangeable motion configurations
- Sole and wheeled control functions
- Supports Python, C++, ROS 1, and ROS 2 development
- SDK and simulator resources for secondary development
- Designed for mobility, control, and embodied-intelligence research
Ordering and delivery
Available to order from the supplier. Availability and dispatch timing are reconfirmed after order; no immediate shipment is promised.
Supplier Bundle #2, EDU Edition.
US freight and customs: $4,200 per robot, charged separately at checkout. The charge includes the supplier's freight/customs amount plus handling. International destinations and special delivery requirements need a separate quote. Sales tax, if applicable, is calculated at checkout.
Payment in full is required before shipment. Optional commissioning, training and integration services are quoted separately.
Bundle #2 contents
- 1 TRON2 base body with two upper arms
- 2 forearm extremities with closed-status grippers

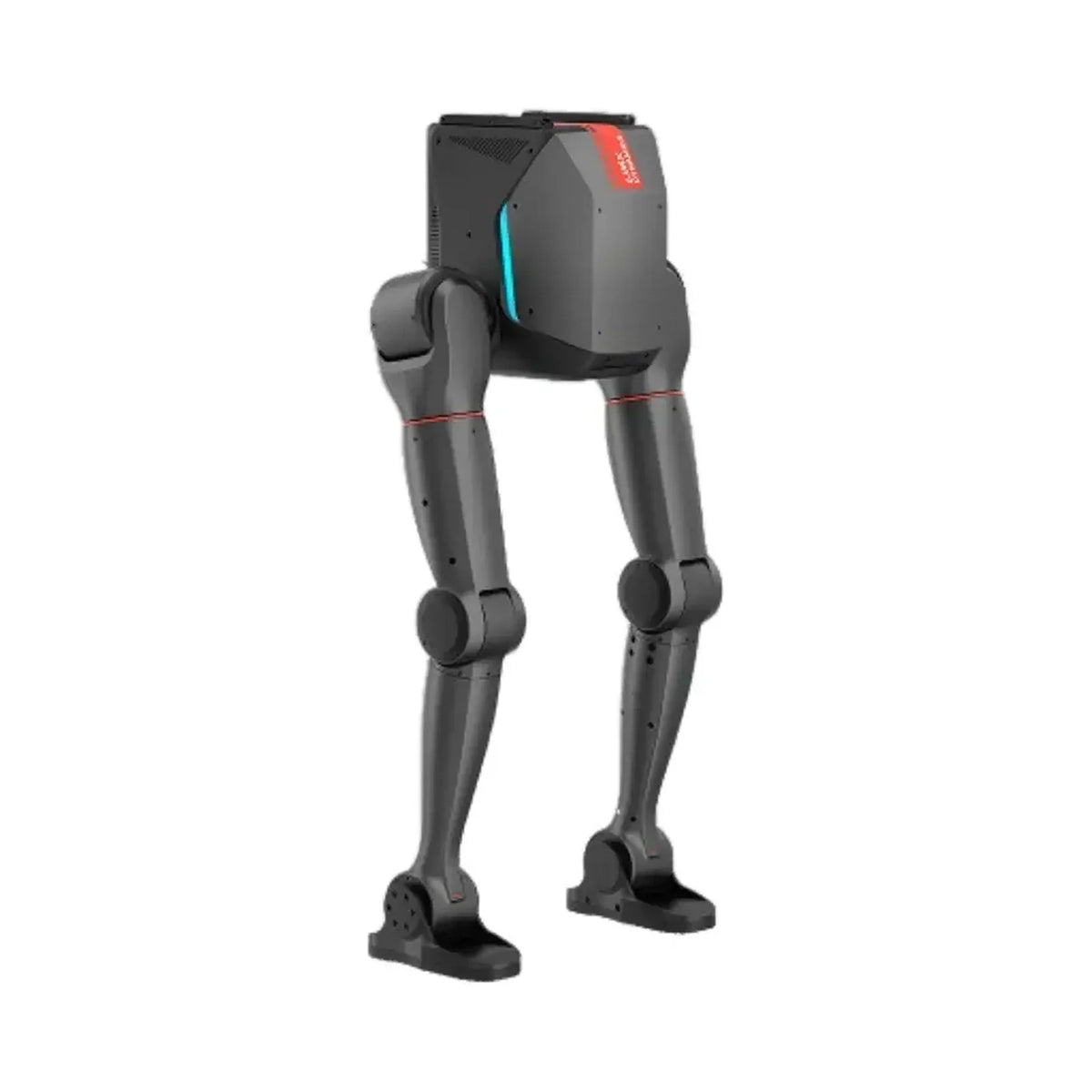

- 2 foot extremities with lower legs

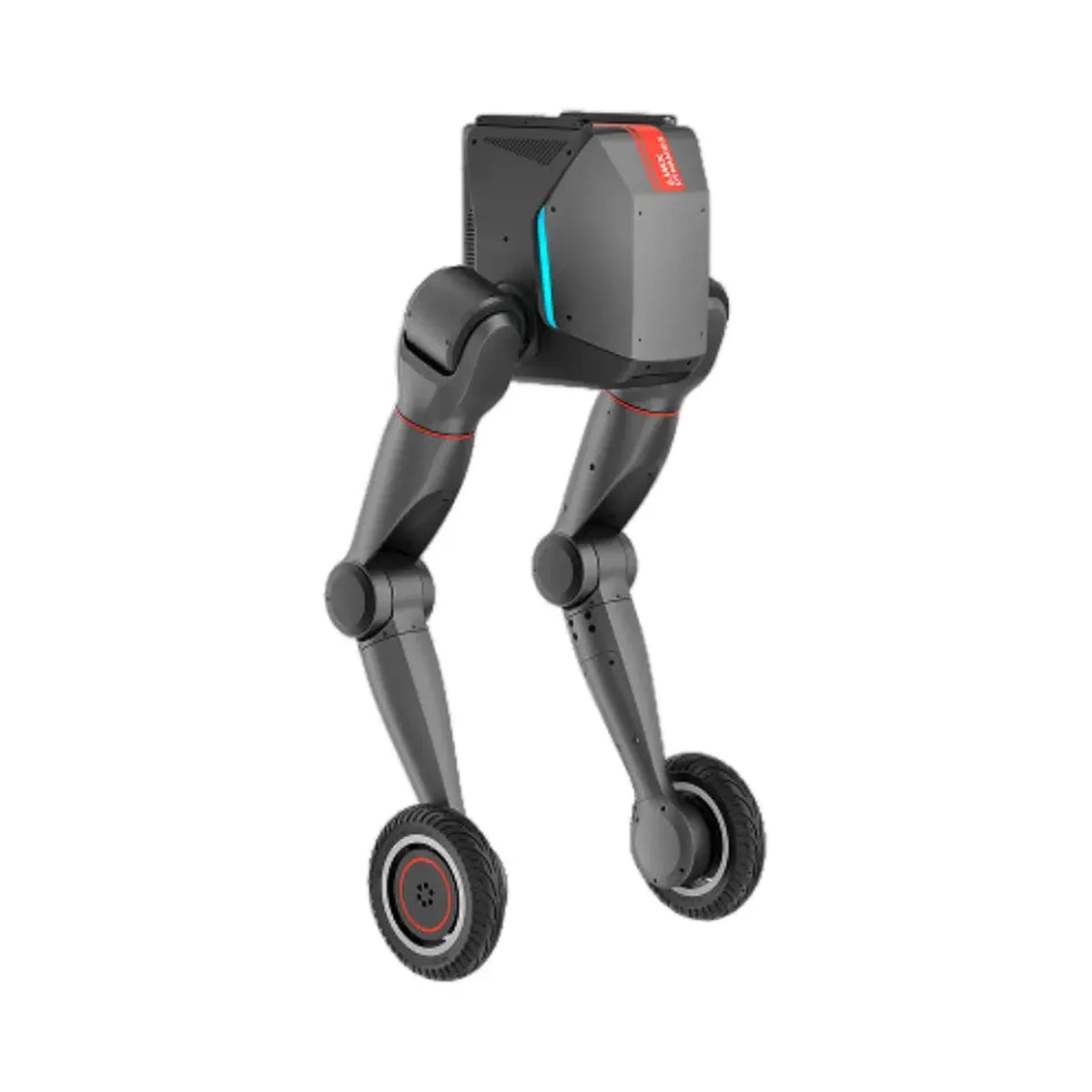

- 2 wheeled-leg extremities with lower legs
- Three-in-One installation tool kit
- 4 lanyards with eyebolts
Bundles #2 and #3 are not upgradeable to the Three-in-One configuration. Choose Bundle #1 for manipulation and mobility in one package.
FCC documentation and US setup
Supplier-provided FCC Part 15 Subpart B documentation identifies TRON2 Dual-Arm, model TRON2-B-DA-EDU-US, report N26091006501E, dated September 28, 2026. It applies to the tested configuration; it does not establish wireless-radio approval or coverage for every bundle or add-on. Per the distributor's October 14 guidance, disable the factory Wi-Fi and install your own compliant network hardware for US deployment. Confirm the supplier's model-specific setup instructions before use.
Download FCC declaration (PDF) · Download FCC EMC test report (PDF)
Features
- Interchangeable motion configurations
- Sole and wheeled control functions
- Supports Python, C++, ROS 1, and ROS 2 development
- SDK and simulator resources for secondary development
- Designed for mobility, control, and embodied-intelligence research
Technical Specifications
Product specifications, requirements, and deployment details.
Mechanical
- Single leg dof
- 5
- Active vision head dof
- 2
- Sole speed m s
- 2-3
- Wheeled speed m s
- 3-5
- Sole max slope deg
- 15
- Wheeled max slope deg
- 30
- Max step height cm
- 20
Compute & sensors
- Sensors
- waist RGBD camera, IMU
- Development resources
- SDK, Studio, simulation examples
Power & battery
- Battery voltage v
- 46.8
- Battery capacity ah
- 9
- Max battery power w
- 2800
- Replaceable battery
- Yes
- Charging time
- 20-80% in 30 minutes; 20-100% in 54 minutes
Software & interfaces
- SDK languages
- Python, C++
- Operating systems
- Linux, Ubuntu 20.04 reference environment, Windows low-level SDK availability
- Middleware & frameworks
- ROS 1, ROS 2, WebSocket JSON API
- Simulators
- NVIDIA Isaac Sim, MuJoCo, Gazebo
- Communication interfaces
- Ethernet, USB 3.0, EtherCAT, RS485
- Power interfaces
- 12V output, 24V output, 48V output, External power input
Integration requirements
- Details
Confirm included sole and wheeled modules, control software, sensors, battery, controller, and EDU development entitlements before deployment.
Related robotics products
Bundle #2 contents
- Included
- 1 TRON2 base body with two upper arms
- Included
- 2 forearm extremities with closed-status grippers
- Included
- 2 foot extremities with lower legs
- Included
- 2 wheeled-leg extremities with lower legs
- Included
- Three-in-One installation tool kit
- Included
- 4 lanyards with eyebolts
FCC documentation and US setup
- Tested model
- TRON2-B-DA-EDU-US
- Declaration
- FCC declaration (PDF)
- Test report
- N26091006501E (PDF)
- US deployment
- Supplier-provided FCC Part 15 Subpart B documentation identifies TRON2 Dual-Arm, model TRON2-B-DA-EDU-US, report N26091006501E, dated September 28, 2026. It applies to the tested configuration; it does not establish wireless-radio approval or coverage for every bundle or add-on. Per the distributor's October 14 guidance, disable the factory Wi-Fi and install your own compliant network hardware for US deployment. Confirm the supplier's model-specific setup instructions before use.
Ordering and delivery
- Configuration
- Supplier Bundle #2, EDU Edition.
- Availability
- Available to order from the supplier. Availability and dispatch timing are reconfirmed after order; no immediate shipment is promised.
- Freight and customs
- US freight and customs: $4,200 per robot, charged separately at checkout. The charge includes the supplier's freight/customs amount plus handling. International destinations and special delivery requirements need a separate quote. Sales tax, if applicable, is calculated at checkout.
- Payment
- Payment in full before shipment
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Need help with deployment?
Knoxlabs also handles the deployment.
Device setup
Integration planning
Asset tagging
Shipping coordination
Training and onboarding
Deployment consulting
FAQ
How is this configuration supplied?
Supplier-fulfilled configuration. Payment in full is required before shipment. Availability and dispatch timing are confirmed after order. Optional setup, training and third-party integrations are quoted separately.
How much are shipping and customs?
US freight and customs: $4,200 per robot, charged separately at checkout. The charge includes the supplier's freight/customs amount plus handling. International destinations and special delivery requirements need a separate quote. Sales tax, if applicable, is calculated at checkout. The supplier's freight/customs charge already includes customs duties; those duties are not added a second time to the robot price.
Which TRON 2 bundle is this?
Bundle #2 - Two-in-One Motion Suit, EDU Edition. The four bundles are separate complete purchase configurations. Bundles #2 and #3 are not upgradeable to Bundle #1.
What FCC documentation is available?
Supplier-provided FCC Part 15 Subpart B documentation identifies TRON2 Dual-Arm, model TRON2-B-DA-EDU-US, report N26091006501E, dated September 28, 2026. It applies to the tested configuration; it does not establish wireless-radio approval or coverage for every bundle or add-on. Per the distributor's October 14 guidance, disable the factory Wi-Fi and install your own compliant network hardware for US deployment. Confirm the supplier's model-specific setup instructions before use.
