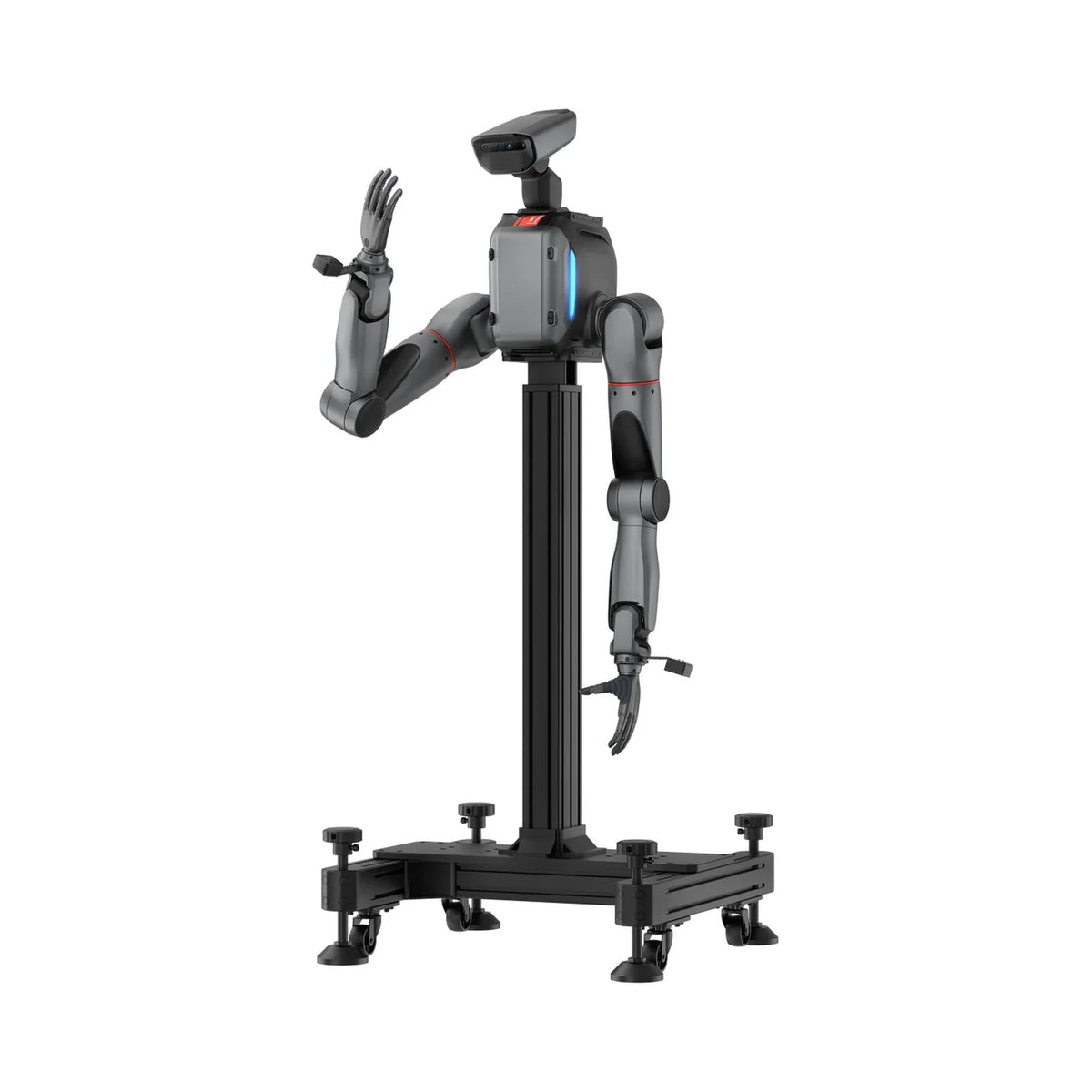

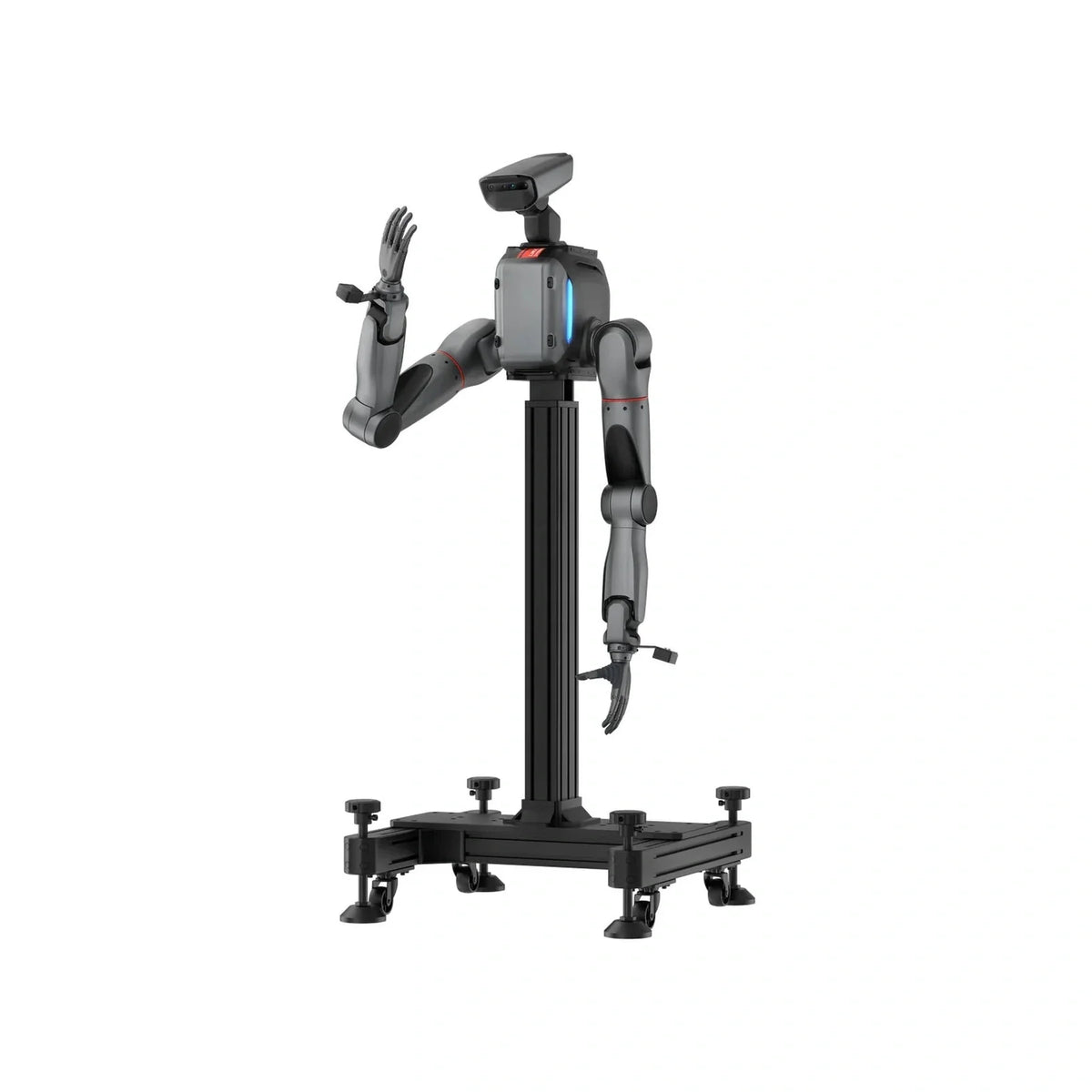

Dual-arm robotics platform
LimX TRON 2 Dual-Arm Robot - EDU Edition
A stationary dual-arm TRON 2 configuration for manipulation research, dexterous-hand development, teleoperation, lab automation, and embodied-AI data collection.
Available as: Stationary dual-arm robot · Manipulation platform
Current reseller-sheet MSRP: $24,999.99. Freight/customs is quoted separately.
Related Robotics Products
Contact for pricing
This platform is configured and quoted to your requirements. Freight, customs, and integration scope are confirmed before order.
- 100% deposit required under current reseller terms
- Freight and customs quoted separately
- Third-party hand and teleoperation integrations require validation
🛠
Deployment Expertise
XR & robotics specialists on staff
⚙
Integration Support
SDK, ROS & simulator guidance
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Freight & customs coordinated
Spec Highlights
- Two 7-DoF arms
- Maximum 5 kg end-effector load per arm; 3 kg extended
- Up to 5 m/s end-effector speed
- 36 m/s² maximum acceleration
- ±0.5 mm repeat positioning accuracy
- Published 100 ms teleoperation delay
Technical Specifications
Mechanical, compute, power, SDK, and interface details for research and deployment.
Mechanical
- Arms
- 2
- Single arm dof
- 7
- Max end effector load per arm kg
- 5
- Extended load per arm kg
- 3
- Max end effector speed m s
- 5
- Max end effector acceleration m s2
- 36
- Repeat positioning accuracy mm
- ±0.5
- Teleoperation delay ms
- 100
Compute & Sensors
- Development compute
- Intel Core Ultra module option
- Storage
- 2 TB on development module
- Sensors
- waist RGBD camera, IMU, head RGBD camera, wrist RGBD cameras
Power & Battery
- Battery voltage v
- 46.8
- Battery capacity ah
- 9
- Max battery power w
- 2800
- Replaceable battery
- true
Software & Interfaces
- SDK languages
- Python, C++
- Operating systems
- Linux, Ubuntu 20.04 reference environment, Windows low-level SDK availability
- Middleware & frameworks
- ROS 1, ROS 2, WebSocket JSON API
- Simulators
- NVIDIA Isaac Sim, MuJoCo, Gazebo
- Communication interfaces
- Ethernet, USB 3.0, EtherCAT, RS485, CAN FD reported at end-effector; details pending
- Power interfaces
- 12V output, 24V output, 48V output, External power input
Product details
Overview
A stationary dual-arm TRON 2 configuration for manipulation research, teleoperation, dexterous-hand experimentation, lab automation, and embodied-AI data collection.
- Two 7-DoF robotic arms
- Up to 5 kg maximum end-effector load per arm; 3 kg in extended configurations
- Maximum end-effector speed up to 5 m/s
- Repeat positioning accuracy rated at ±0.5 mm
- Supports Python, C++, ROS 1, ROS 2, SDK, and simulation workflows
Integration note: LimX has tested BrainCo hands. Tesollo, MANUS, SenseGlove, and other third-party integrations require configuration-specific engineering and validation.
Purchase note: Freight, customs, lead time, training, and integration requirements are confirmed during quotation. A 100% deposit is required under the current reseller terms.
Need More Than Hardware?
Knoxlabs also handles the deployment.
Device setup
SDK & ROS onboarding
Integration validation
Freight & customs
Teleoperation setup
Robotics deployment consulting
