BrainCo Revo2 Basic Dexterous Hands
By BrainCo
A compact dexterous hand for humanoid robotics, manipulation research, teleoperation, and embodied AI development. The Revo2 Basic is designed for teams integrating hand control into custom robotics platforms.
From$ 13,457.60
Pricing on request
Your Configuration
Total
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:Pricing on request
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
A compact dexterous hand for humanoid robotics, manipulation research, teleoperation, and embodied AI development. The Revo2 Basic is designed for teams integrating hand control into custom robotics platforms.

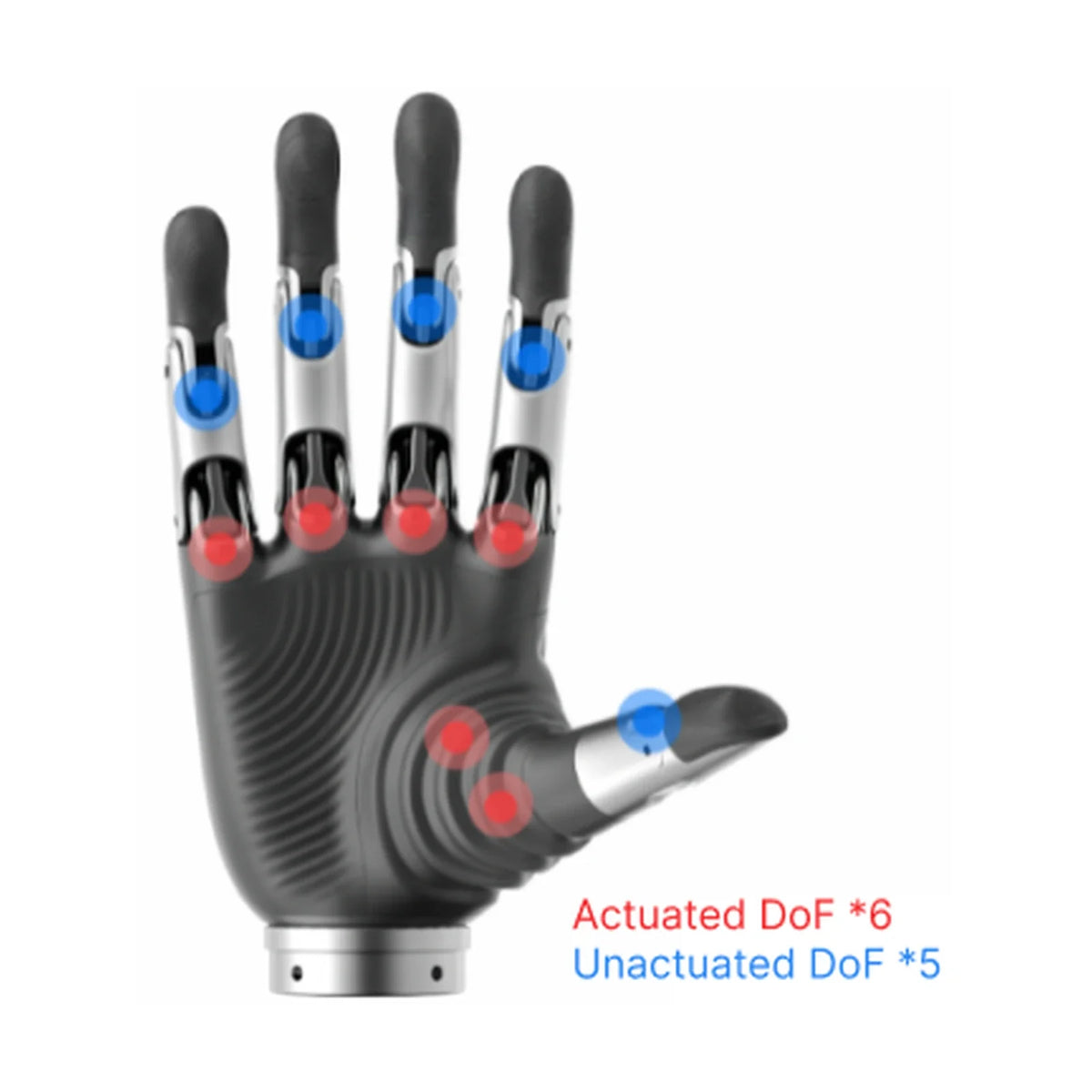

- 11 degrees of freedom with 6 active joints per hand
- 383 g hand weight
- Whole-hand gripping force rated at 50 N or greater
- RS485 and CAN FD communication on the Basic edition
- Python/C SDK with Linux, Windows, and ROS support
Contact Knoxlabs to confirm handedness, quantity, mounting, power, software integration, and current availability for your project.
Features
- 11 degrees of freedom with 6 active joints per hand
- 383 g hand weight
- Whole-hand gripping force rated at 50 N or greater
- RS485 and CAN FD communication on the Basic edition
- Python/C SDK with Linux, Windows, and ROS support
Technical Specifications
Product specifications, requirements, and deployment details.
Mechanical

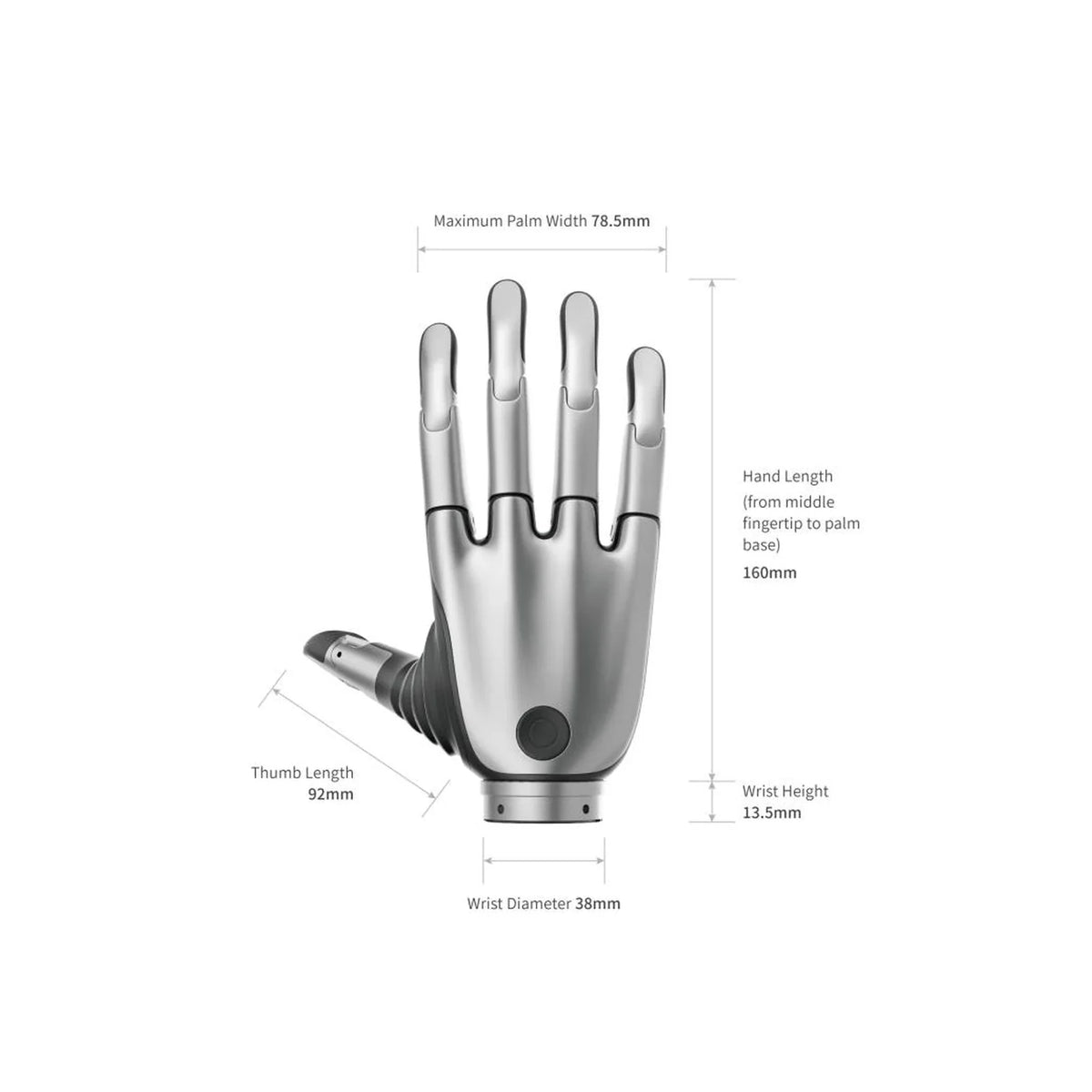

- Height mm
- 160
- Weight g
- 383
- Dof
- 11
- Active joints
- 6
- Whole hand grip force n
- ≥50
- Single finger pinch force n
- ≥15
- Positioning accuracy deg
- 0.1
Compute & sensors
- Control modes
- position, speed, current
- Tactile sensing
- none on Basic edition
- Protection
- overcurrent, stall, high temperature, collision
Power & battery
- Voltage v
- 12-28 on Basic edition
Software & interfaces
- SDK languages
- Python, C
- Operating systems
- Linux, Windows
- Middleware & frameworks
- ROS, BrainCo SDK

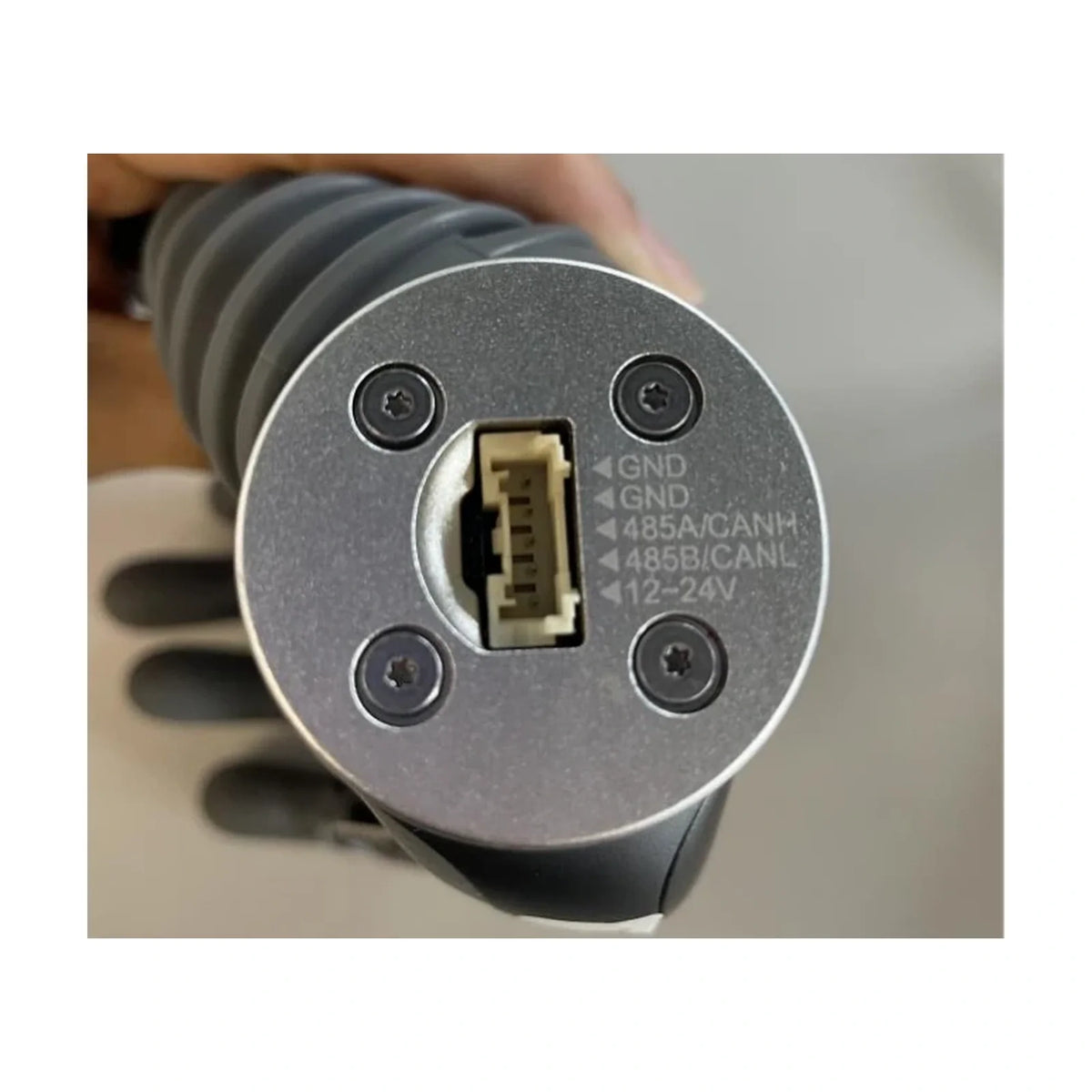

- Communication interfaces
- RS485, CAN FD
Integration requirements
- Details
LimX reports testing BrainCo on TRON 2, but Knoxlabs still needs the exact tested Revo2 edition, handedness, quantity, mounting adapter, wiring, power path, control architecture, and warranty terms. The reseller sheet’s plural “Hands” must be confirmed as a left/right pair.
Resources & documents
- Details
Official product specifications: https://www.brainco.cn/en-US/products/revo2
