XR Controller
Haption TREX Teleoperation Bundle
By Haption
A configured combination of a Virtuose 6D TAO, TREX Box and one supported robot-type license. The robot, SDK and project-specific integration are quoted separately.
Pricing and availability confirmed with your configuration quote.
Bundle: TREX Teleoperation Bundle
Accessories
Haption ERGO Handle
The side-mounted shaft can be arranged for left- or right...
Add-ons
Haption TREX SDK Permanent Site License
Add SDK access when the integration requires it.
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
- Ships from France. Configuration and lead time are confirmed before order.
- Hardware, software and integration are itemized in the final quotation.
- Quoted hardware pricing includes an estimated import allowance. Final freight, tax and customs treatment are confirmed on quote.
Product details
Overview
A configured combination of a Virtuose 6D TAO, TREX Box and one supported robot-type license. The robot, SDK and project-specific integration are quoted separately.
Key capabilities
- Bilateral control: Use Haption force-feedback devices to control supported robots at a distance.
- Scaling and clutching: Configure movement scaling, force scaling, rotation and clutch behavior.
- Robot integration: Match the license and controller prerequisites to one verified robot type.

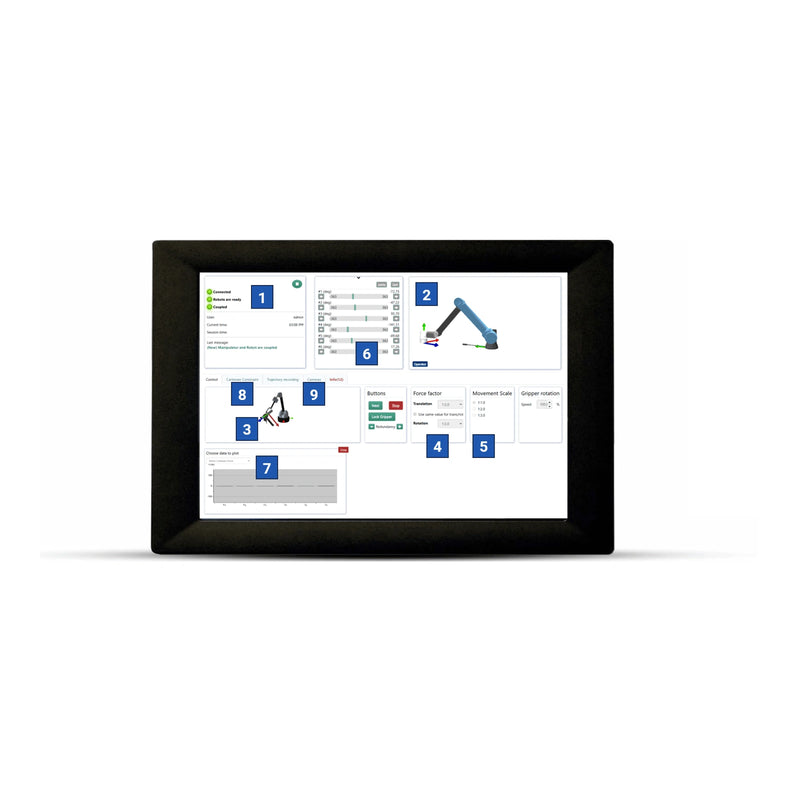

- Configuration interface: The TREX interface supports setup and system configuration.
Technical specifications
| Purpose | Generic controller for Haption force-feedback robot teleoperation |
|---|---|

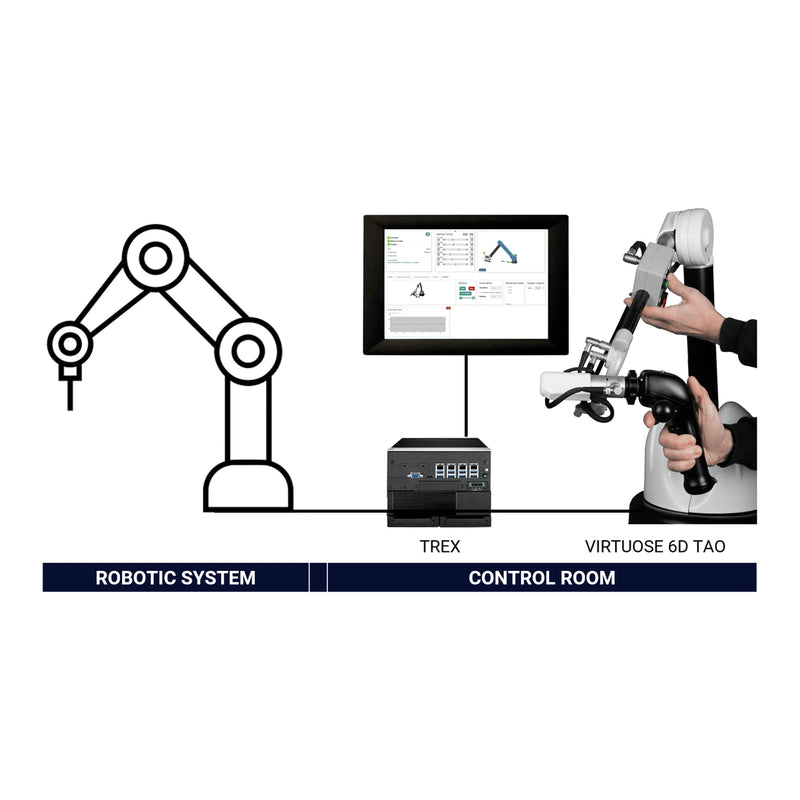

| System elements | TREX Box, robot-specific license, compatible leader device and a verified robot integration |
| Feedback | Dynamic feedback; interactive contact feedback requires compatible force measurement |
| Communication | Ethernet/UDP; network architecture is project-specific |
| Robot compatibility | Confirm model, controller, firmware and required interfaces against the current supplier matrix |
| SDK | SDK is excluded from the commercial bundle and quoted separately when needed |

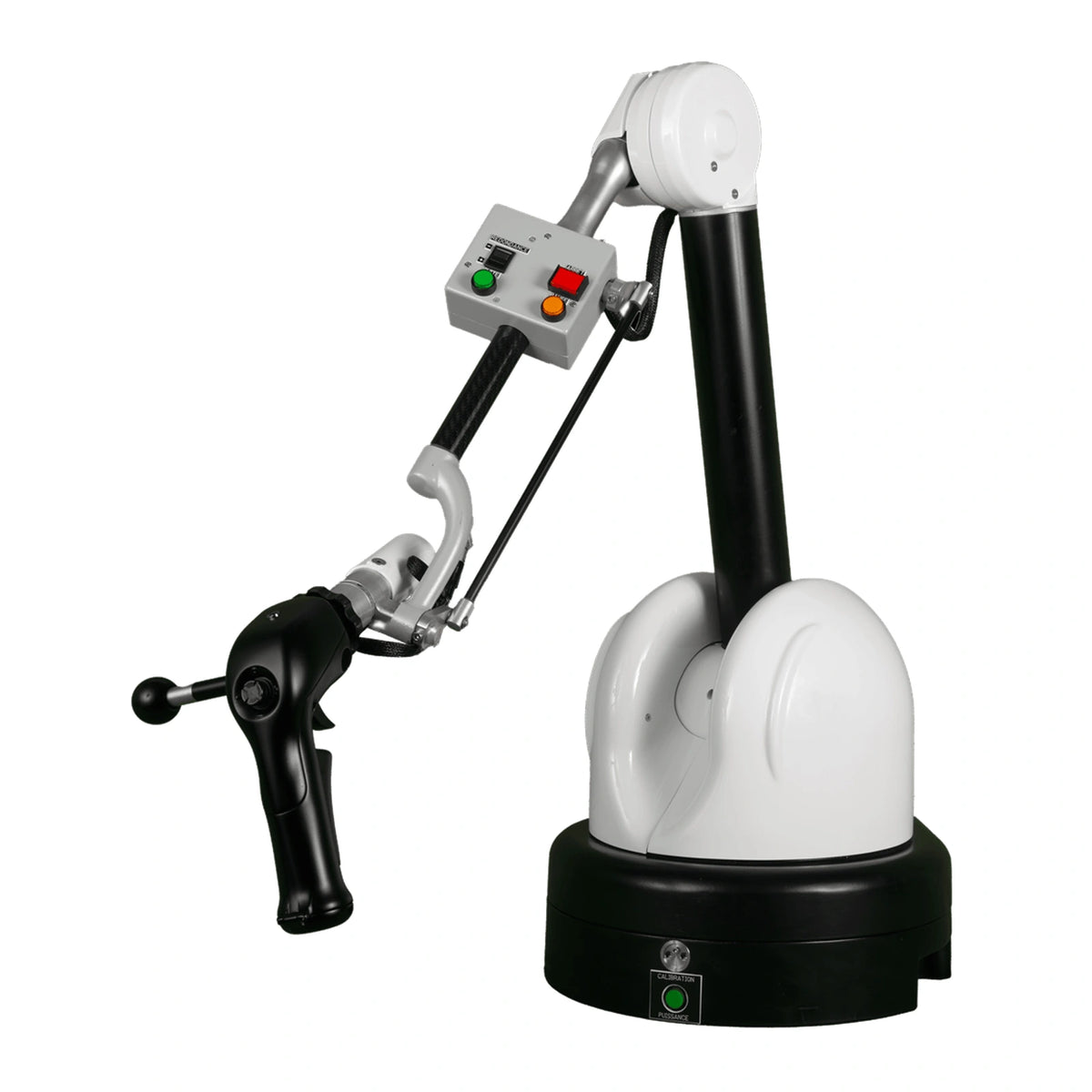

| Included leader device | Virtuose 6D TAO |

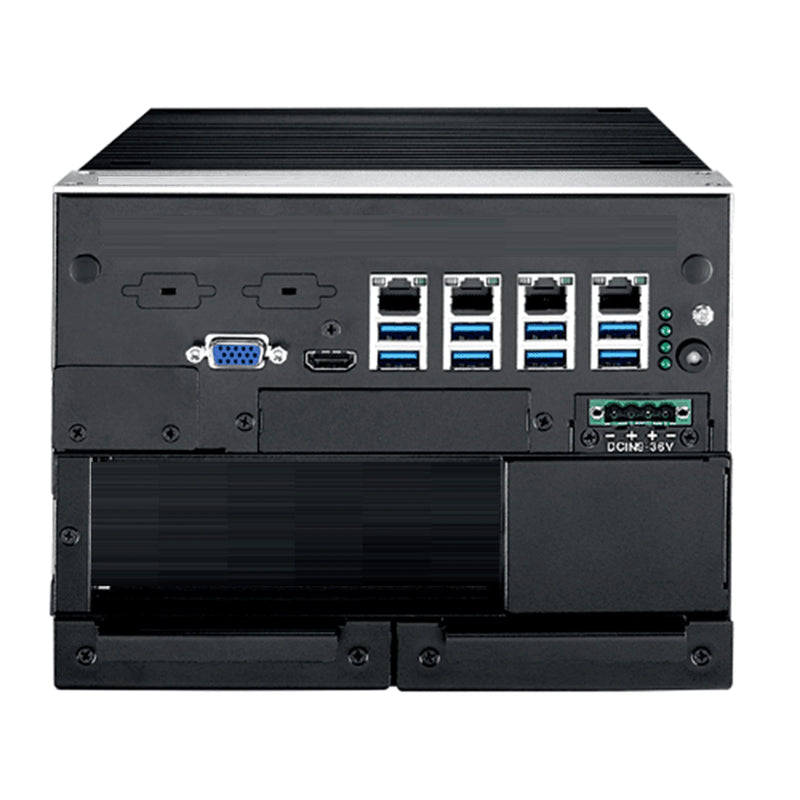

| Included controller | TREX Box |
| Included software | TREX license for one approved robot type |
| Excluded | Follower robot, SDK, optional force/torque sensor and project-specific integration unless itemized |
| Configuration restriction | Standard bundle lists UR3e, UR5e and Franka FR3; FR3 plug-and-play status is inconsistent across the supplied table and requires confirmation |
| Supply route | Ships from France; availability and dispatch timing confirmed with Haption |
| Price basis | Configuration-specific quotation |
Configuration and delivery
- Ships from France. Configuration and lead time are confirmed before order.
- Hardware, software and integration are itemized in the final quotation.
- Quoted hardware pricing includes an estimated import allowance. Final freight, tax and customs treatment are confirmed on quote.
Features
- Bilateral control—Use Haption force-feedback devices to control supported robots at a distance.
- Scaling and clutching—Configure movement scaling, force scaling, rotation and clutch behavior.
- Robot integration—Match the license and controller prerequisites to one verified robot type.
- Configuration interface—The TREX interface supports setup and system configuration.
Technical Specifications
Everything you need to know about tracking, performance, connectivity, and deployment hardware.
Technical specifications
- Purpose
- Generic controller for Haption force-feedback robot teleoperation
- System elements
- TREX Box, robot-specific license, compatible leader device and a verified robot integration
- Feedback
- Dynamic feedback; interactive contact feedback requires compatible force measurement
- Communication
- Ethernet/UDP; network architecture is project-specific
- Robot compatibility
- Confirm model, controller, firmware and required interfaces against the current supplier matrix
- SDK
- SDK is excluded from the commercial bundle and quoted separately when needed
- Included leader device
- Virtuose 6D TAO
- Included controller
- TREX Box
- Included software
- TREX license for one approved robot type
- Excluded
- Follower robot, SDK, optional force/torque sensor and project-specific integration unless itemized
- Configuration restriction
- Standard bundle lists UR3e, UR5e and Franka FR3; FR3 plug-and-play status is inconsistent across the supplied table and requires confirmation
- Supply route
- Ships from France; availability and dispatch timing confirmed with Haption
- Price basis
- Configuration-specific quotation
Robot compatibility and prerequisites
- ABB GoFa 10
- Not plug-and-play in the supplied matrix; native interactive feedback supported.
- Agile Robots Diana7
- Robot software v2.19; plug-and-play listed; native interactive feedback supported.
- Doosan H Series
- Plug-and-play listed; native interactive feedback supported.
- FANUC M20iB-35S / M20iD25 / M710iC-45M
- R30iPlus controller, v9.30 P13, RAM upgrade and Stream Motion at 4 ms; interactive feedback case-by-case with force/torque sensor. The supplied sheet writes the controller designation as R30iPlus; confirm its exact model and options with Haption.
- FANUC LR Mate / M / R Series
- R30iPlus controller, v9.30 P13, RAM upgrade and Stream Motion at 4 ms; interactive feedback requires force/torque sensor. The supplied sheet writes the controller designation as R30iPlus; confirm its exact model and options with Haption.
- Franka Emika/Panda
- Robot System 4.2.1 with Franka Control Interface libFranka 0.9.1; not plug-and-play; native interactive feedback supported.
- Franka FR3
- Robot System 5.7.2 with Franka Control Interface libFranka 0.15.0; table says not plug-and-play although bundle note lists FR3. Confirm with Haption.
- Kawasaki RS015X
- Controller F02; not plug-and-play; interactive feedback is not listed.
- Kinova Gen3, 6 and 7 DOF
- Plug-and-play listed; native interactive feedback supported.
- KUKA LBR iiwa 7 R800 / 14 R820
- Sunrise 1.16 or newer with FRI and GripperToolbox; not plug-and-play; native interactive feedback supported.
- KUKA KR4R600 / KR10R900 / KR20R1800 / KR20R3100
- KRC4 or KRC5 with RobotSensorInterface; not plug-and-play; interactive feedback case-by-case using motor current or force/torque sensing.
- Stäubli TX2
- CS9 with VAL3; not plug-and-play; interactive feedback is not listed.
- Universal Robots URe: UR3e / UR5e / UR10e / UR16e / UR20
- PolyScope 5.x with minor version 9 or newer (5.9+ within the 5.x series); plug-and-play listed; native interactive feedback supported. Other major versions require confirmation.
- Feedback distinction
- Dynamic feedback covers inertia, drag and limits. Contact, weight and friction feedback requires suitable robot-side force measurement.
Why Teams Choose TREX Teleoperation Bundle
Choose a configuration around your application, workspace and integration requirements.
Bilateral control
Use Haption force-feedback devices to control supported robots at a distance.
Scaling and clutching
Configure movement scaling, force scaling, rotation and clutch behavior.
Robot integration
Match the license and controller prerequisites to one verified robot type.
Configuration interface
The TREX interface supports setup and system configuration.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Need More Than Hardware?
Knoxlabs also handles the deployment.
Device setup
Integration planning
Asset tagging
Shipping coordination
Training and onboarding
Deployment consulting
FAQ
How do I order this configuration?
Request a quote with the application, quantity, destination and required software. Knoxlabs will confirm the exact configuration, lead time and final delivered price with Haption.
What is included?
The listed bundle combines a Virtuose 6D TAO, TREX Box and TREX license for one approved robot type. The follower robot, SDK license, optional force/torque sensor, displays, network equipment and project-specific integration are separate unless itemized in the quote. Confirm robot compatibility and installation scope with Haption.
Where does it ship from?
Hardware ships from France. Dispatch dates and delivery terms are confirmed on quote.
What warranty is available?
Haption confirmed a standard 12-month hardware warranty. Start date, exclusions and RMA handling are confirmed in the final order terms.
What needs configuration review?
The price sheet describes FR3 in the standard bundle but marks it non-plug-and-play in the compatibility table. FR3 integration is subject to Haption confirmation.
