Motion Capture
Xsens Awinda Wireless Full-Body Motion Capture System
By xsens
Wireless inertial motion capture ecosystem with full-system and Starter configurations, plus replacement sensors, attachments, charging, receiving and transport accessories.
From
Original price
Current price$ 10,032.00
Save $ -10,032.00
Pricing on request
Request a quote. Public pricing is not displayed.
Configuration: Awinda Full System
Your Configuration
Total
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:Pricing on request
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
- Quote required. Knoxlabs confirms availability, lead time and the selected configuration before ordering.
Product details
Selected configuration
Configuration: Awinda Full System

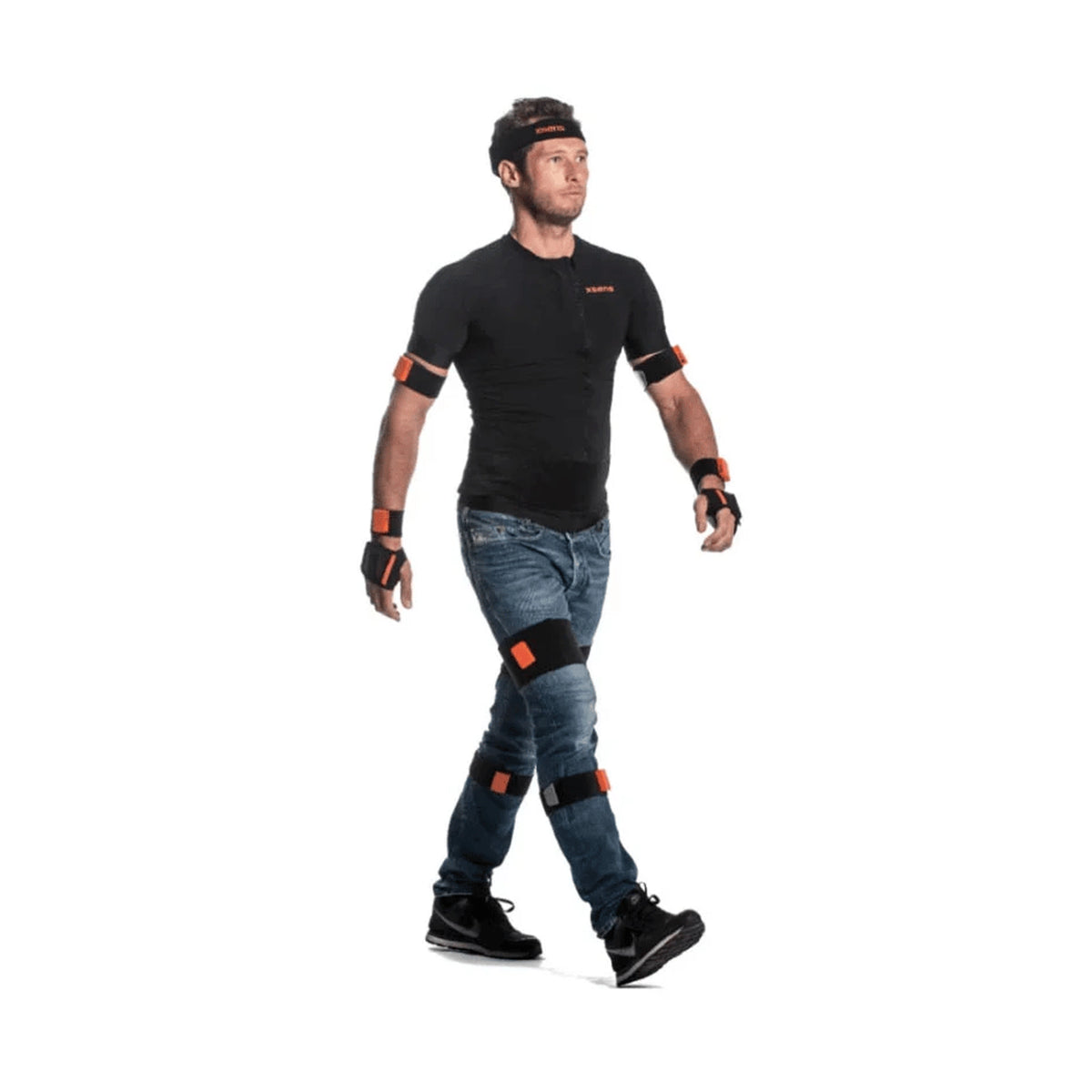

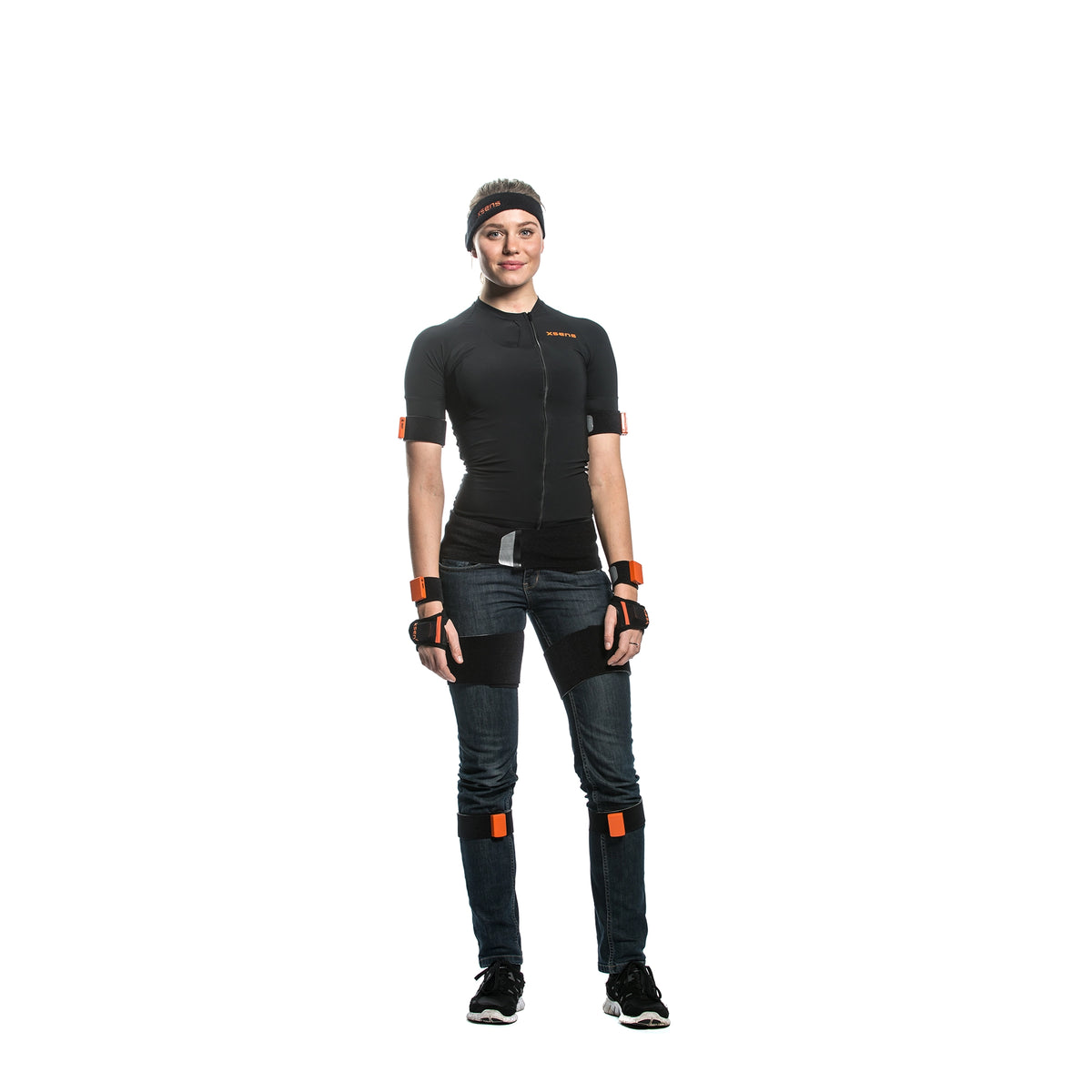

Xsens Awinda is a flexible wireless full-body motion capture system with 17 MTw Awinda trackers mounted using adjustable straps and fitted shirts. It is designed for fast subject changes and dependable capture in studios, labs, clinics, workplaces, and classrooms.
Key features
- 17 wireless body trackers plus support for a prop tracker
- Up to 60 Hz full-body update rate
- Up to 50 m wireless range with the Awinda Station
- Approximately 12 hours of tracker battery life
- 30 ms latency and magnetic-immunity processing
Compatibility
Use with Xsens Animate, Xsens Analyze, or Xsens Humanoid software according to the application. Finger tracking integrations are available separately.
What is included
Awinda system hardware, body attachment set, and case as configured by Xsens. Software is quoted separately unless explicitly included.
Ordering and configuration
This is a quote-only Xsens product. Knoxlabs will confirm system compatibility, license type, lead time, and the correct configuration before order placement.
Request a quote: Availability, lead time, licensing eligibility, and the final configuration are confirmed before ordering. Public pricing is not displayed.
Features
- 17 wireless body trackers plus support for a prop tracker
- Up to 60 Hz full-body update rate
- Up to 50 m wireless range with the Awinda Station
- Approximately 12 hours of tracker battery life
- 30 ms latency and magnetic-immunity processing
Technical Specifications
Product specifications, requirements, and deployment details.
Selected configuration
- Product
- Xsens Awinda Wireless Full-Body Motion Capture System
- Configuration
- Awinda Full System
Technical details
- Performance
- 60 Hz; approximately 30 ms latency; up to approximately 50 m wireless range.
- Body sensors
- Both systems use 17 wireless body sensors. Full Awinda lists an additional prop sensor; Starter lists no prop sensor.
- Battery generation
- Old-generation sensors are approximately 6 hours; newer generation approximately 12 hours.
- Receiver and charging
- Full Awinda uses a station and charging stations; Starter uses a USB receiving dongle and sensor USB charging cables.
- Clothing and finger tracking
- Hardware overview lists straps and three shirts for each system; finger tracking is optional and not included.
- Care
- Straps, tracker gloves and headband: hand-wash at 30°C. Shirt: synthetic machine wash at 30°C; dry flat; no bleach, tumble drying, ironing or dry cleaning.
Compatibility and deployment
- Compatibility
- Xsens capture software required. Hardware sync needs the appropriate station; maximum two Awinda systems per recording session.
- Scope / supplied item

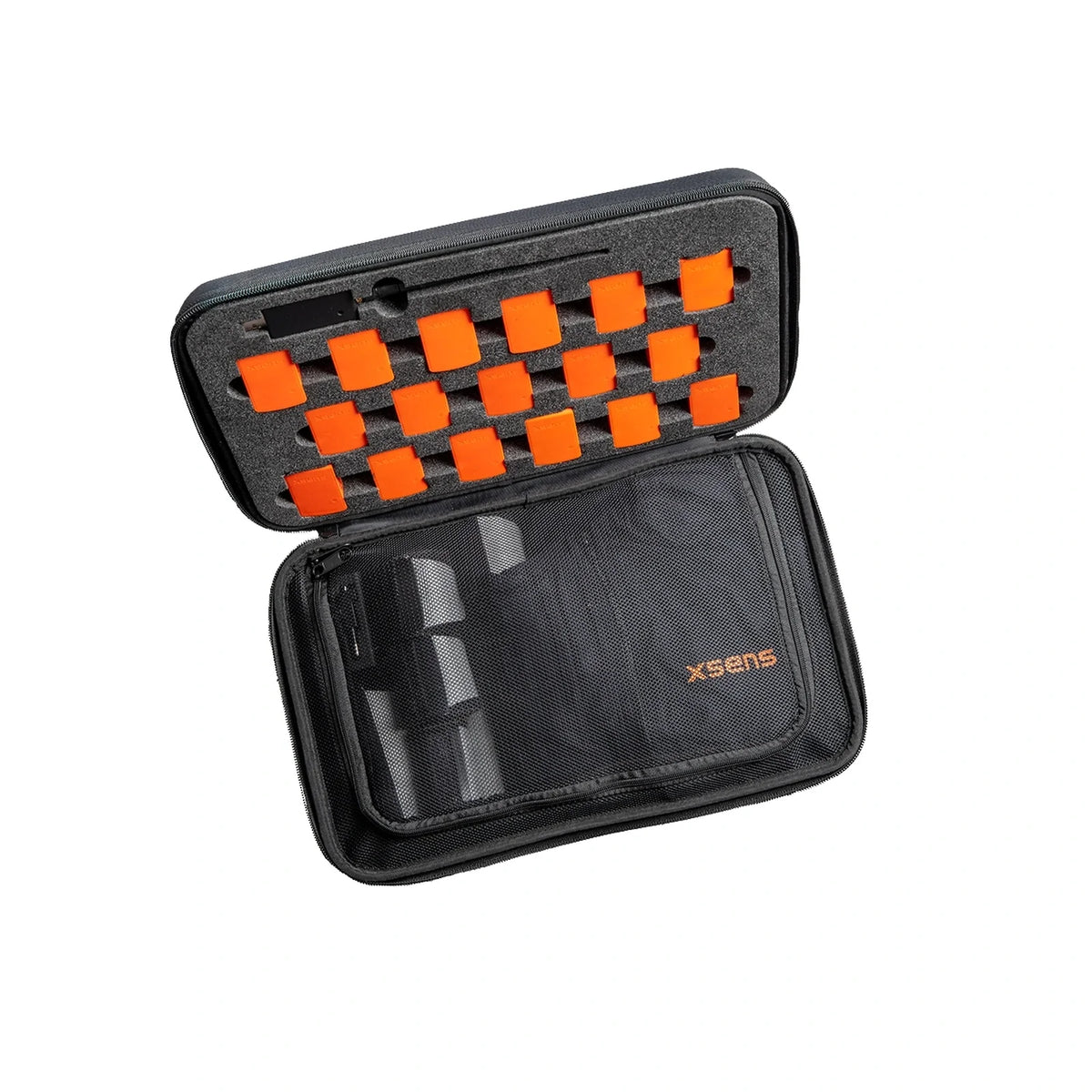

- Published full-system configuration: 17 body sensors plus prop, recording station, charging stations, straps/shirts and carrying case. Confirm quotation contents.
- Setup / care
- Recalibrate after changing sensor placement; follow Awinda textile/sensor care.
Setup & deployment
- Details
Xsens capture software required. Hardware sync needs the appropriate station; maximum two Awinda systems per recording session.
Recalibrate after changing sensor placement; follow Awinda textile/sensor care.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Need help with deployment?
Knoxlabs also handles the deployment.
Device setup
Integration planning
Asset tagging
Shipping coordination
Training and onboarding
Deployment consulting
FAQ
Which configuration is this listing for?
Xsens Awinda Wireless Full-Body Motion Capture System. Selected option: Awinda Full System.
What should be confirmed before ordering?
Xsens capture software required. Hardware sync needs the appropriate station; maximum two Awinda systems per recording session. Quote required. Knoxlabs confirms availability, lead time and the selected configuration before ordering.
What is included?
Published full-system configuration: 17 body sensors plus prop, recording station, charging stations, straps/shirts and carrying case. Confirm quotation contents.
Where should I start with setup and care?
Recalibrate after changing sensor placement; follow Awinda textile/sensor care.
