Accessory

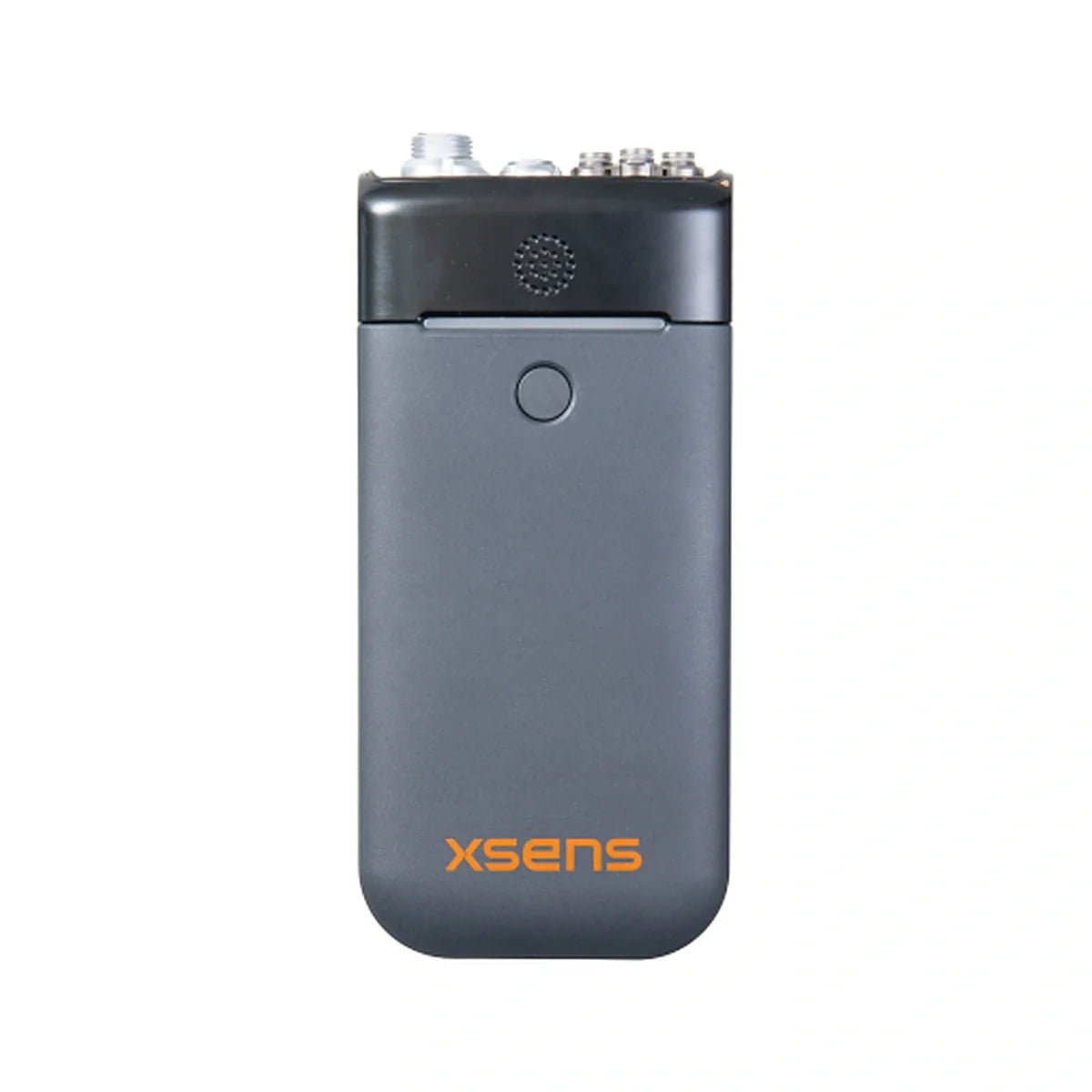

Xsens Hub for Next-Generation Xsens Link
By xsens
Next-generation central Hub with speaker and LED feedback.
From
Original price
Current price$ 3,696.00
Save $ -3,696.00
Pricing on request
Request a quote. Public pricing is not displayed.
Your Configuration
Total
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:Pricing on request
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
- Quote required. Knoxlabs confirms availability, lead time and the selected configuration before ordering.
Product details
Selected configuration
Configuration: Hub for Next-Generation Xsens Link
Replacement Xsens Hub for wireless streaming, feedback, recording, and power management.
Key features
- Genuine Xsens replacement or expansion accessory
- Supports serviceability and longer system life
- Configuration verified by Knoxlabs before ordering
Compatibility
Next-Generation Xsens Link
What is included
One Xsens Hub for Next-Generation Xsens Link in the selected configuration.
Ordering and configuration
This is a quote-only Xsens product. Knoxlabs will confirm system compatibility, license type, lead time, and the correct configuration before order placement.
Request a quote: Availability, lead time, licensing eligibility, and the final configuration are confirmed before ordering. Public pricing is not displayed.
Features
- Genuine Xsens replacement or expansion accessory
- Supports serviceability and longer system life
- Configuration verified by Knoxlabs before ordering
Technical Specifications
Product specifications, requirements, and deployment details.
Selected configuration
- Product
- Xsens Hub for Next-Generation Xsens Link
- Configuration
- Hub for Next-Generation Xsens Link
Technical details
- Performance
- Wi-Fi 6E, USB-C connectivity, internal battery and up to 50 h recording capacity; LED/speaker feedback.
- Connectivity
- Wi-Fi 6E across 2.4, 5 and 6 GHz; router-based receiving setup.
- Power
- Hub battery: 3–4 hours; external battery: 7–8 hours.
- Storage versus buffering
- Hub stores up to 50 hours of on-body recording; communication buffering is a separate 10-minute specification.
- Buffering
- Up to 10 minutes of on-body buffering.
- Remote on-body recording
- The dedicated next-generation OBR guide says synchronized remote OBR is not currently available on the Hub.
- OBR GNSS
- The next-generation OBR guide says GNSS data is legacy MVN Link only; select no GNSS data for Xsens Link.
- 2026.8 Hub connection workflow
- Configure Wi-Fi through XS Hub Web Admin instead of the removed software Wi-Fi tab. Hub firmware 1.18.0 uses DHCP with a 10-second link-local fallback.
Compatibility and deployment
- Compatibility
- Not the legacy BPACK/BPACK-V2.
- Setup / care
- For software 2026.8 / Hub firmware 1.18.0, use XS Hub Web Admin for Wi-Fi setup; factory reset deletes stored recordings.
Setup & deployment
- Details
Not the legacy BPACK/BPACK-V2.
For software 2026.8 / Hub firmware 1.18.0, use XS Hub Web Admin for Wi-Fi setup; factory reset deletes stored recordings.
Resources & documents
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Need help with deployment?
Knoxlabs also handles the deployment.
Device setup
Integration planning
Asset tagging
Shipping coordination
Training and onboarding
Deployment consulting
FAQ
Which configuration is this listing for?
Xsens Hub for Next-Generation Xsens Link. Selected option: Hub for Next-Generation Xsens Link.
What should be confirmed before ordering?
Not the legacy BPACK/BPACK-V2. Quote required. Knoxlabs confirms availability, lead time and the selected configuration before ordering.
Where should I start with setup and care?
For software 2026.8 / Hub firmware 1.18.0, use XS Hub Web Admin for Wi-Fi setup; factory reset deletes stored recordings.
Does on-body recording include remote synchronization or GNSS?
The dedicated next-generation Hub guide does not currently support synchronized remote on-body recording. Its GNSS recording option applies to legacy MVN Link, not next-generation Xsens Link.
