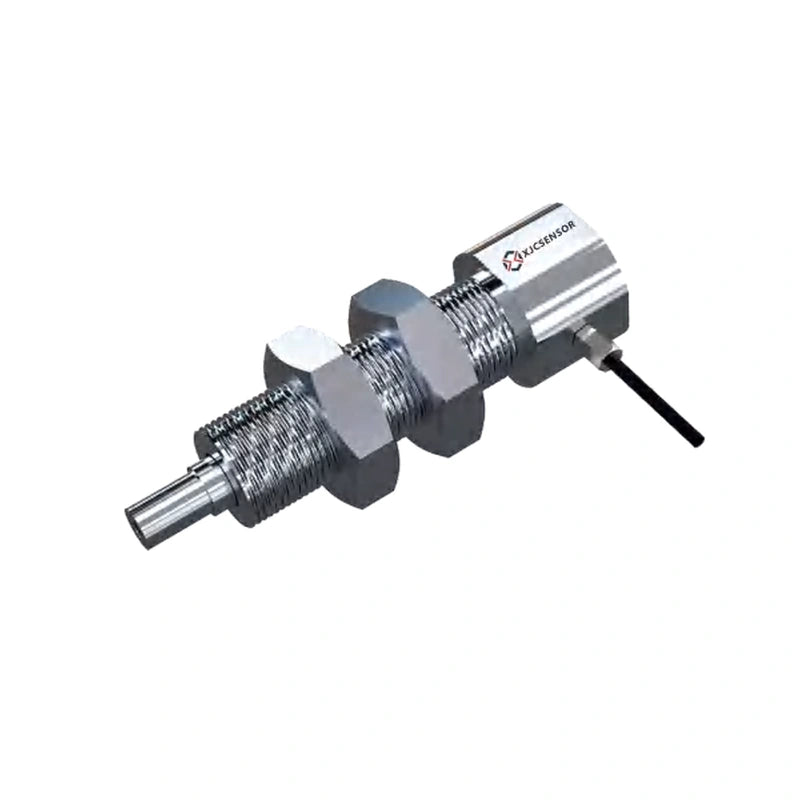

XJCSENSOR X-ZL18 Shaft Head Tension Sensor, threaded body M25×1.5, 10–1000 N
By XJCSENSOR
Model: X-ZL18
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
The XJCSENSOR X-ZL18 is a shaft head tension sensor for web tension measurement, available from 10N to 1000N, with mV/V (1.0±0.1 mV/V rated output) output.
Features
- Easy to install, high measurement accuracy
- Accurate measurement under low tension
- Low temperature drift, good linearity and repeatability
- Small footprint
Specifications
| Capacity | 10N; 20N; 30N; 40N; 50N; 100N; 300N; 500N; 1000N (by pin size, see table) |
|---|---|
| Output | mV/V (1.0±0.1 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP54 |
| Safe / ultimate load | 500% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.02% F.S./°C |
| Insulation | ≥2000 MΩ/100 VDC |
| Dimensions | Ø34 flange; M25×1.5 body 72 long (25 / 32); pin ØD 5–12, A 12.9–24.9 (see table) |
| Mounting | M25×1.5 external thread with nuts |
| Connection | Ø4×5 m |
Capacity options and dimensions (mm)
| Model no | Capacity (N) | A | B | C | D | E |
|---|---|---|---|---|---|---|
| X-ZL18-□-5 | 10, 20, 30, 40 | 12.9 | 9.9 | 3 | 5 | 6 |
| X-ZL18-□-8 | 10, 20, 50, 100, 300 | 15.9 | 11.9 | 4 | 8 | 6 |
| X-ZL18-□-10 | 10, 20, 50, 100, 500 | 20.9 | 15.9 | 5 | 10 | 8 |
| X-ZL18-□-12 | 10, 20, 50, 100, 500, 1000 | 24.9 | 19.9 | 6 | 12 | 10 |
Applications
Tension measurement and control of paper, label, tape, battery electrode, high-performance film and other narrow web materials; the signal is not affected by the position of the coiled material on the roller.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
🛠
