XJCSENSOR X-ZL17 Shaft Head Tension Sensor, 10–300 N, Ø40 flange
By XJCSENSOR
Model: X-ZL17
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

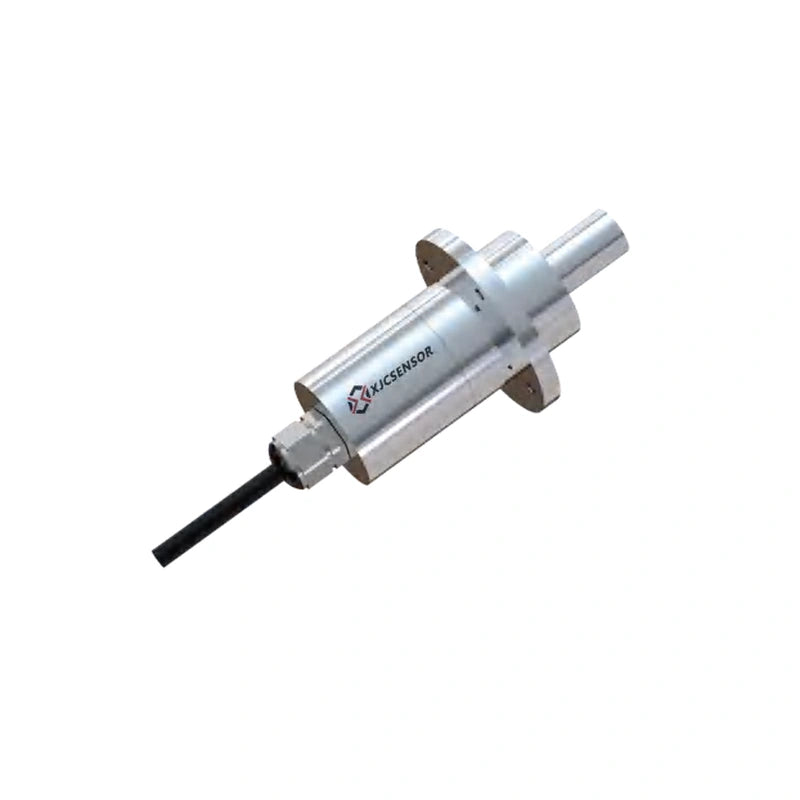

The XJCSENSOR X-ZL17 is a shaft head tension sensor for web tension measurement, available from 10N to 300N, with mV/V (1.0±0.1 mV/V rated output) output.
Features
- Easy to install, high measurement accuracy
- Accurate measurement under low tension
- Low temperature drift, good linearity and repeatability
- Small footprint
Specifications
| Capacity | 10N; 20N; 50N; 100N; 300N |
|---|---|
| Output | mV/V (1.0±0.1 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP54 |
| Safe / ultimate load | 500% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.02% F.S./°C |
| Insulation | ≥2000 MΩ/100 VDC |
| Dimensions | Ø40 flange; Ø23.8 body; 38.2 / 11.3 / 4 / 5 shaft; pin ØA 6 or 10, L 14.5 or 17.5 |
| Mounting | 4×M3 through on Ø32 PCD |
| Connection | Ø5×5 m |
Capacity options and dimensions (mm)
| Model no | Capacity (N) | A | B | L |
|---|---|---|---|---|
| X-ZL17-10-6 / -20-6 / -50-6 / -100-6 / -300-6 | 10 / 20 / 50 / 100 / 300 | 6 | 6 | 14.5 |
| X-ZL17-10-10 / -20-10 / -50-10 / -100-10 / -300-10 | 10 / 20 / 50 / 100 / 300 | 10 | 9 | 17.5 |
Applications
Tension measurement and control of paper, label, tape, battery electrode, high-performance film and other narrow web materials; the signal is not affected by the position of the coiled material on the roller.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
