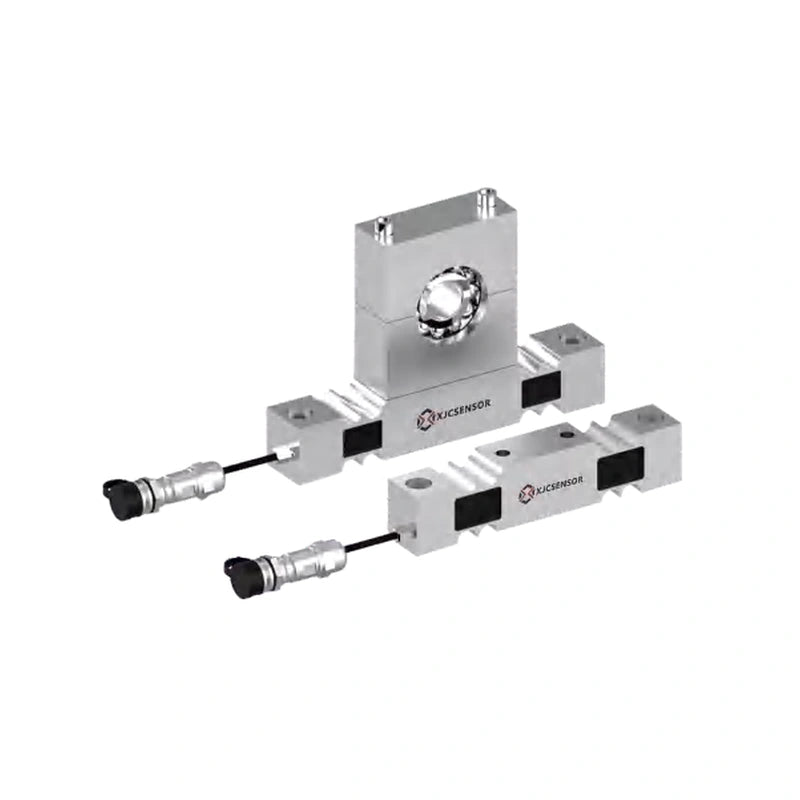

XJCSENSOR X-ZL16 Pillow Block Bearing Tension Sensor, 5–100 kg
By XJCSENSOR
Model: X-ZL16
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-ZL16 is a pillow block bearing tension sensor for web tension measurement, available from 5kg to 100kg, with mV/V (2.0±0.004 mV/V rated output) output.
Features
- Easy to install; bearing and tension roller easy to replace
- Small footprint
- Low temperature drift, good linearity and repeatability
- Strong connections for long-term reliability
Specifications
| Capacity | 5kg; 15kg; 25kg; 50kg; 100kg |
|---|---|
| Output | mV/V (2.0±0.004 mV/V rated output) |
| Nonlinearity | ≤0.25% F.S. |
| Repeatability | ≤0.15% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP63 |
| Safe / ultimate load | 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.02% F.S./°C |
| Insulation | ≥2000 MΩ/100 VDC |
| Dimensions | 149 × 30 block (X-ZL16), 110 hole spacing, 64 top pad; X-ZL16-B: 148 long with 64 wide bearing block (Ø40 bearing, 26 thick) |
| Mounting | 2×Ø6.5 through with Ø11 depth 6.5 counterbore; 2×M8 depth 9 (back) |
| Connection | Ø5×5 m (connector pigtail) |
Capacity options
| Model no | Capacity (kg) |
|---|---|
| X-ZL16-5 | 5 |
| X-ZL16-15 | 15 |
| X-ZL16-25 | 25 |
| X-ZL16-50 | 50 |
| X-ZL16-100 | 100 |
| X-ZL16-B-5 | 5 |
| X-ZL16-B-15 | 15 |
| X-ZL16-B-25 | 25 |
| X-ZL16-B-50 | 50 |
| X-ZL16-B-100 | 100 |
Ordering code: X-ZL16-B-50: Series / Capacity.
Rated load applies to a single sensor; twice the value when installed on both sides.
Applications
Tension measurement and control of paper, label, tape, battery electrode, high-performance film and other narrow web materials; the signal is not affected by the position of the coiled material on the roller.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
