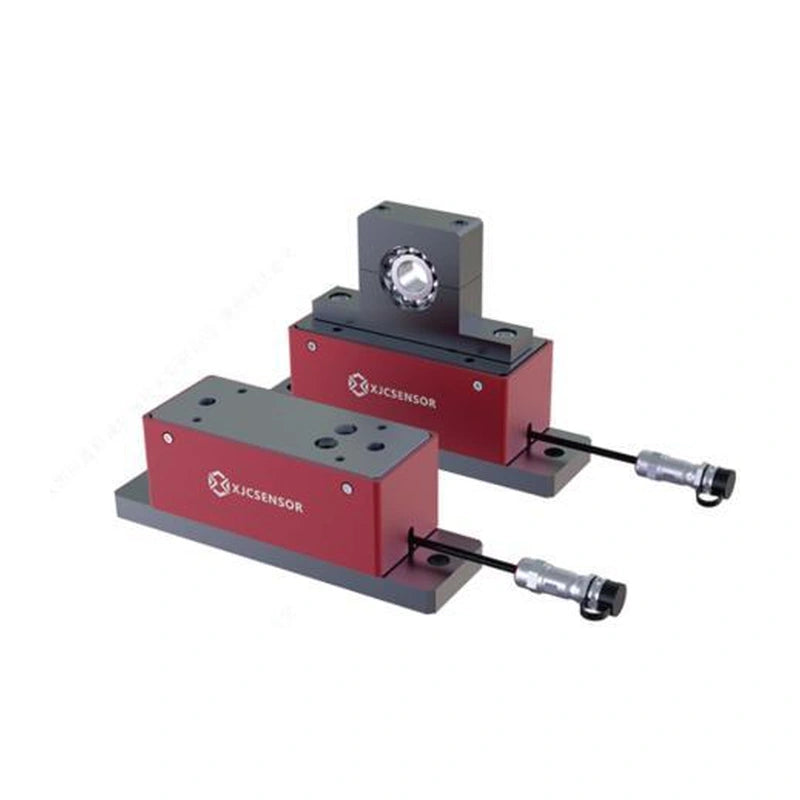

XJCSENSOR X-ZL09 Flange Tension Sensor, block type, 5–100 kg
By XJCSENSOR
Model: X-ZL09
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-ZL09 is a flange tension sensor for web tension measurement, available from 5kg to 100kg, with mV/V (1.0–2.0 mV/V rated output) output.
Features
- Easy to install; bearing and roller easy to replace
- Built-in mechanical 10× anti-overload protection
- Low temperature drift, good linearity and repeatability
- Strong connections for long-term reliability
- Drilling and tapping can be customized on request
Specifications
| Capacity | 5kg; 15kg; 25kg; 50kg; 100kg |
|---|---|
| Output | mV/V (1.0–2.0 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP63 |
| Safe / ultimate load | 300% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.02% F.S./°C |
| Insulation | ≥2000 MΩ/100 VDC |
| Dimensions | ≈134 × 46 base; sensing block ≈120.6 long; X-ZL09-B adds a bearing housing with Ø17 bore |
| Mounting | 2×Ø10.7 through; 2×M10×1.5 depth 16; 4×M6 depth 12 (96.3±0.1 spacing); drilling/tapping customizable |
| Connection | Ø5×5 m (connector pigtail) |
Capacity options
| Model no | Capacity (kg) |
|---|---|
| X-ZL09-5 | 5 |
| X-ZL09-15 | 15 |
| X-ZL09-25 | 25 |
| X-ZL09-50 | 50 |
| X-ZL09-100 | 100 |
| X-ZL09-B-5 | 5 |
| X-ZL09-B-15 | 15 |
| X-ZL09-B-25 | 25 |
| X-ZL09-B-50 | 50 |
| X-ZL09-B-100 | 100 |
Ordering code: X-ZL09-B-100: Series / Capacity.
Load direction: F = T × cos(α/2) + G, where T = web tension, α = wrap (envelope) angle (30° ≤ α ≤ 180°), F = force seen by the load cell, G = roller self-weight. The rated load applies to a single sensor; with sensors on both roller ends the system rating is twice the value.
Applications
Tension measurement and control of paper, label, tape, battery electrode, high-performance film and other narrow web materials; the signal is not affected by the position of the coiled material on the roller.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
