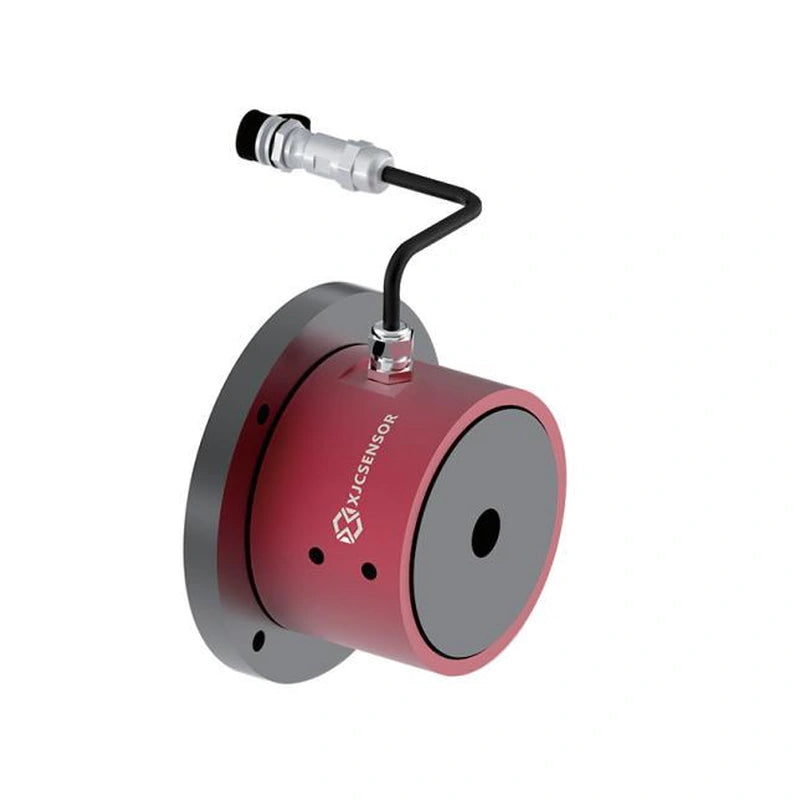

XJCSENSOR X-ZL05-B Cantilever Tension Sensor, 2.5–50 kg, Ø15/Ø25 roller shaft
By XJCSENSOR
Model: X-ZL05-B
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
The XJCSENSOR X-ZL05-B is a cantilever tension sensor for web tension measurement, available from 2.5kg to 50kg, with mV/V (1.0±0.1 mV/V rated output) output.
Features
- Easy installation, small size and small installation space
- Detection signal not affected by the coil position on the roller
- Accurate measurement under low tension
- Built-in 10× anti-overload structure
- Small temperature drift, good linearity and repeatability
Specifications
| Capacity | 2.5kg; 5kg; 10kg; 15kg; 25kg; 50kg |
|---|---|
| Output | mV/V (1.0±0.1 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP54 |
| Safe / ultimate load | 300% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.02% F.S./°C |
| Insulation | ≥2000 MΩ/100 VDC |
| Dimensions | Ø104 flange (≈Ø120 OD) × 68; Ø38 body; roller shaft ØD 15 or 25; 12 flange |
| Mounting | 4×Ø6.5 through EQS on Ø104 flange |
| Connection | Ø5×5 m (connector pigtail) |
Capacity options and dimensions (mm)
| Model no | Capacity (kg) | D (shaft Ø) |
|---|---|---|
| X-ZL05-B-2.5-15 | 2.5 | 15 |
| X-ZL05-B-5-15 | 5 | 15 |
| X-ZL05-B-10-25 | 10 | 25 |
| X-ZL05-B-15-25 | 15 | 25 |
| X-ZL05-B-25-25 | 25 | 25 |
| X-ZL05-B-50-25 | 50 | 25 |
Ordering code: X-ZL05-B-50-25: Series / Capacity / Diameter of roll.
Applications
Tension measurement and control of paper, label, tape, battery electrode, high-performance film and other narrow web materials; the signal is not affected by the position of the coiled material on the roller.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
🛠
