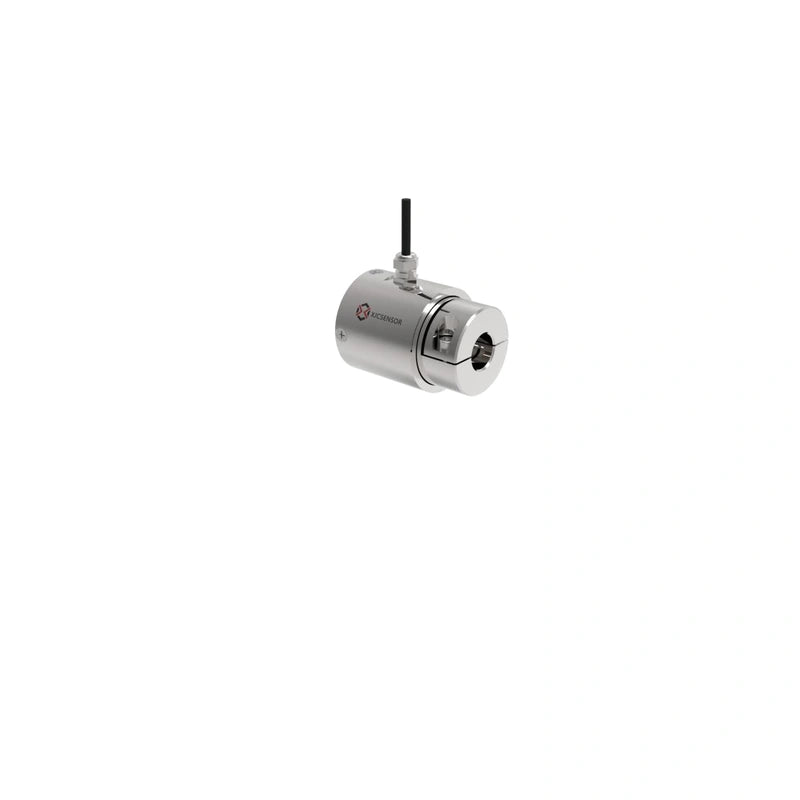

XJCSENSOR X-ZL01-X-B Cantilever Tension Sensor, through-shaft, 10–50 kg
By XJCSENSOR
Model: X-ZL01-X-B
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-ZL01-X-B is a cantilever tension sensor for web tension measurement, available from 10kg to 50kg, with mV/V (1.0±0.2 mV/V rated output) output.
Features
- Multiple installation modes
- Detection signal not affected by the coil position on the roller
- Built-in mechanical 10× anti-overload protection
- Low temperature drift, good linearity and repeatability
- Small footprint
Specifications
| Capacity | 10kg; 20kg; 30kg; 50kg |
|---|---|
| Output | mV/V (1.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC |
| Protection | IP54 |
| Safe / ultimate load | 300% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.02% F.S./°C |
| Insulation | ≥2000 MΩ/100 VDC |
| Dimensions | Ø60 body (Ø52 step) × 55; Ø50 end flange; Ø20 shaft stub 28 (22); 82 overall |
| Mounting | 4×M6 depth 12 EQS on Ø38 PCD; M12 depth 10 centre |
| Connection | Ø5×10 m |
Capacity options
10kg; 20kg; 30kg; 50kg
Ordering code: X-ZL01-X-B: Series / Capacity.
Applications
Tension measurement and control of paper, label, tape, battery electrode, high-performance film and other narrow web materials; the signal is not affected by the position of the coiled material on the roller.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
