Product details
Overview

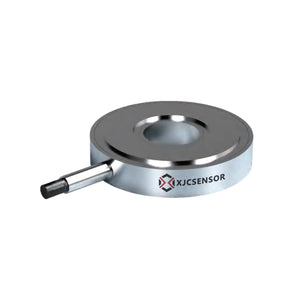

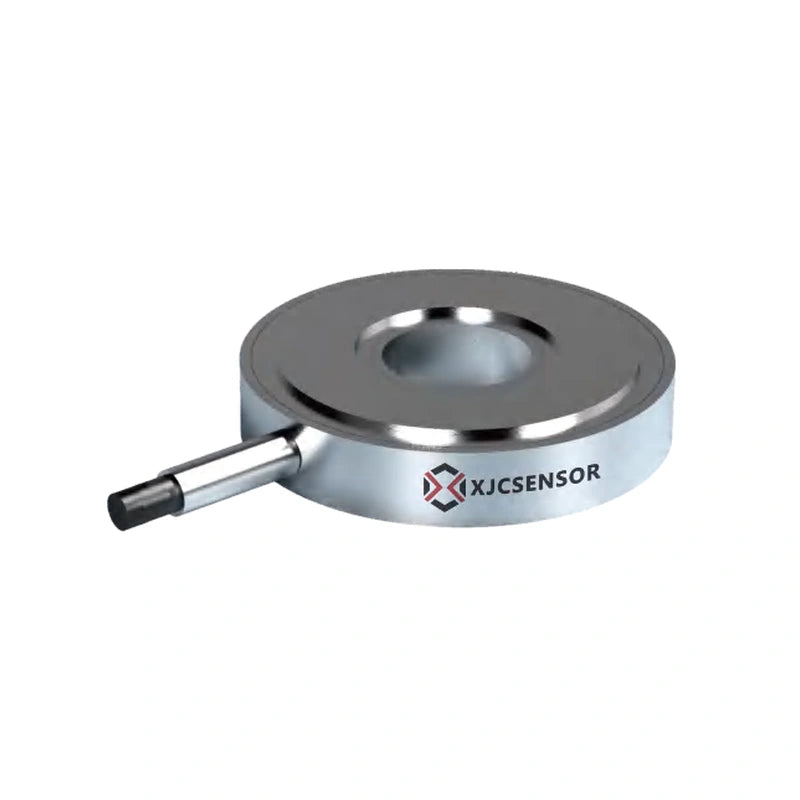

The XJCSENSOR X-YD05-B-D is a piezoelectric ring force sensor (Ø19 × 4±0.02 mm), rated 2 t, with charge output of about 4.1 pC/N for high-speed dynamic force measurement.
Features
- Preloading and calibration are required after installation
- Linearity error ≤±1%
- Compact, ultra-thin design with very high rigidity
- Wide operating temperature range, high IP rating, long lifespan
- Suitable for high-speed dynamic measurement applications
Specifications
| Capacity | 2t |
|---|---|
| Output | charge (pC/N) (≈4.1±0.3 pC/N) |
| Nonlinearity | ≤1% F.S. |
| Repeatability | ≤1% F.S. |
| Hysteresis | ≤1% F.S. |
| Protection | IP66 |
| Safe / ultimate load | ≤120% F.S. (overload capacity) |
| Operating temperature | −20~150 °C |
| Temperature effect on output / zero | ≤0.05% F.S./°C |
| Insulation | ≥10 TΩ |
| Material | Stainless steel |
| Dimensions | Ø19 × 4±0.02; Ø15 / Ø9 faces; Ø6.6 bore |
| Mounting | Through-bore washer, preloaded |
| Connection | Ø1.9×0.3 m + M5 RF connector (female) |
Capacity options
2t
Applications
Monitoring pressing force during assembly and testing; stamping and forming force; large forces in force distribution.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
