XJCSENSOR X-TS-PP Brake Pedal Force Sensor, 70 × 70 mm plate, 20–150 kg, 0–5 V
By XJCSENSOR
Model: X-TS-PP
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

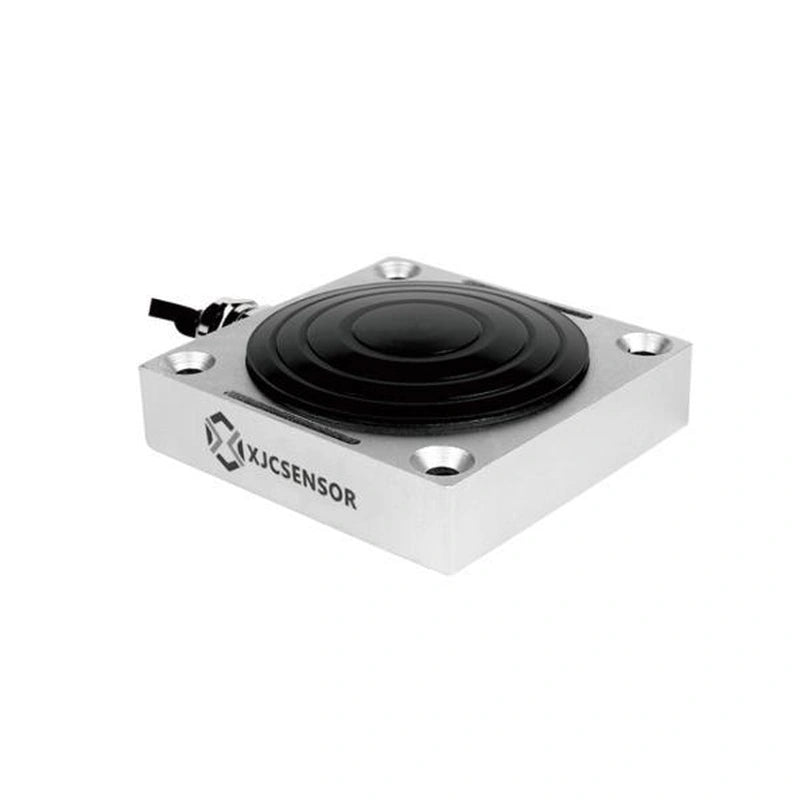

The XJCSENSOR X-TS-PP is a brake pedal force sensor (70 × 70 plate × 16 overall mm), available from 20kg to 150kg, with 0–5 V output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–150 kg
- High accuracy with high side-load tolerance
- Compact structure, easy to install
Specifications
| Capacity | 20kg; 50kg; 100kg; 150kg |
|---|---|
| Output | 0–5 V |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.1% F.S. |
| Hysteresis | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 24 VDC (max 24 VDC) |
| Protection | IP65 |
| Safe / ultimate load | 120% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.2% F.S. |
| Input / output impedance | 750±50 Ω / 700±10 Ω |
| Insulation | ≥2000 MΩ/50 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Aluminum alloy |
| Dimensions | 70 × 70 plate × 16 overall (12 plate); Ø60 dome pad; 4×C3 corners |
| Mounting | 4×Ø6.5 through with Ø11.2 counterbores on 57 mm centres |
| Connection | Ø4×4 m |
Capacity options
20kg; 50kg; 100kg; 150kg
Applications
Brake pedal force measurement in automotive development.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
