Product details
Overview

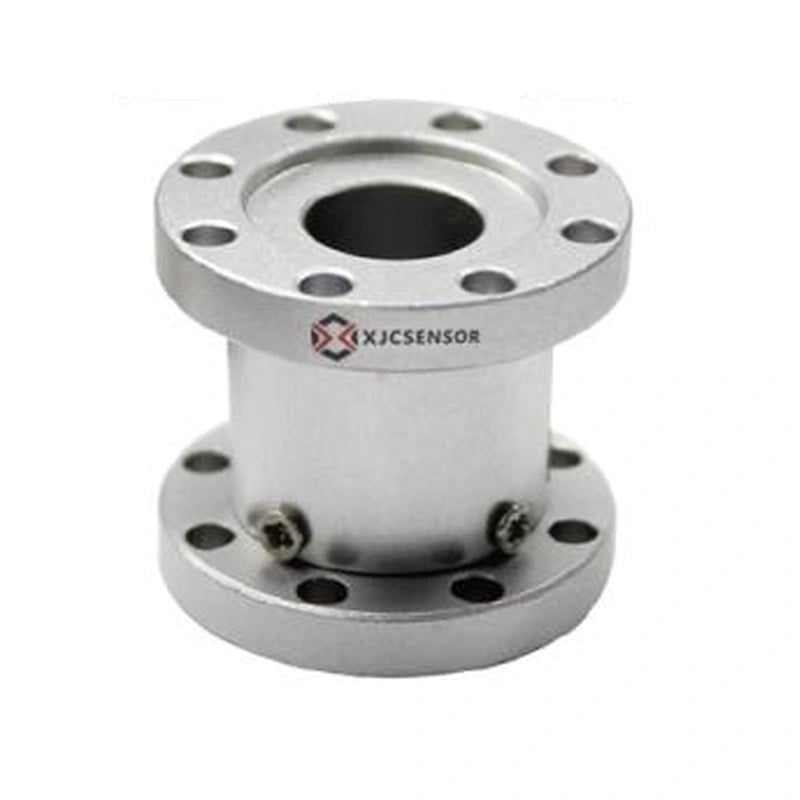

The XJCSENSOR X-ST32-H28-A is a miniature static torque sensor (Ø27 flanges × 28 overall mm), available from 1N.m to 10N.m, with mV/V (1.0±0.2 mV/V rated output) output.
Features
- High accuracy and stable performance for low-range torque measurement
- Static torque measurement; both ends flange-connected for easy installation
Specifications
| Capacity | 1N.m; 2N.m; 5N.m; 10N.m |
|---|---|
| Output | mV/V (1.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.2% F.S. |
| Hysteresis | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP54 |
| Safe / ultimate load | 120% F.S. / 150% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.5% F.S./10 °C / ≤0.5% F.S./10 °C |
| Creep (30 min) | ≤0.2% F.S. |
| Input / output impedance | 350±10 Ω / 350±10 Ω |
| Insulation | ≥2000 MΩ/50 V(DC) |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Aluminum / Stainless steel |
| Dimensions | Ø27 flanges × 28 overall; Ø20 column; 5 mm end steps |
| Mounting | 8×Ø3.2 through EQS on ≈Ø22.5 PCD (both flanges) |
| Connection | Ø2×2 m |
Capacity options
1N.m; 2N.m; 5N.m; 10N.m
Applications
Force/torque detection in industrial automation, automotive industry, bolt tightening technology, electric motors and pumps.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Ex+ Red; Ex- Black; Sig+ Green; Sig- White (full bridge with shield).
