XJCSENSOR X-ST32-H24-A Miniature Static Torque Sensor, flange type, 0.5–1 Nm
By XJCSENSOR
Model: X-ST32-H24-A
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

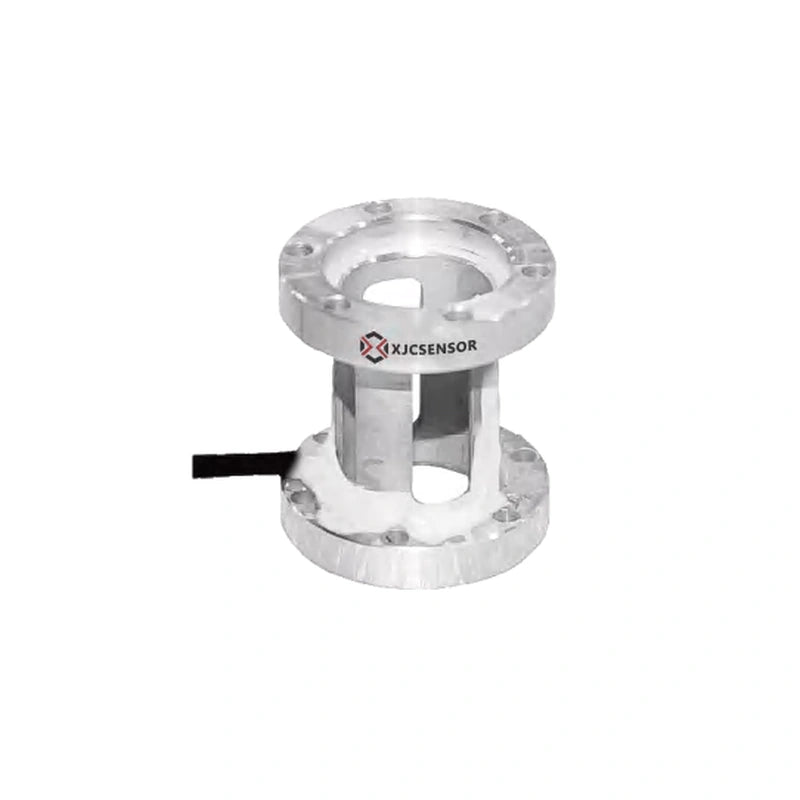

The XJCSENSOR X-ST32-H24-A is a miniature static torque sensor (Ø22 flanges × 24 mm), ranges 0.5Nm, 1Nm, with mV/V output.
Features
- High accuracy and stable performance for low-range torque measurement
- Static torque measurement; both ends flange-connected for easy installation
Specifications
| Capacity | 0.5Nm; 1Nm |
|---|---|
| Output | mV/V (0.5–2.5 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.2% F.S. |
| Hysteresis | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP54 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.5% F.S./10 °C / ≤0.5% F.S./10 °C |
| Creep (30 min) | ≤0.2% F.S. |
| Input / output impedance | 350±10 Ω / 350±10 Ω |
| Insulation | ≥5000 MΩ/100 V(DC) |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Aluminum |
| Dimensions | Ø22 flanges × 24 (4 mm flanges); Ø15 / Ø12 column |
| Mounting | 6×Ø2.2 through EQS on Ø19 PCD (both flanges) |
| Connection | Ø2×200 mm |
Capacity options
0.5Nm; 1Nm
Applications
Industrial automation force measurement, automotive industry, bolt tightening, electric motors and pumps.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Ex+ Red; Ex- Black; Sig+ Green; Sig- White (bridge with shield).
