XJCSENSOR X-ST207-D Joint Torque Sensor, 98 Nm, Ø83 mm, 0.5–4.5 V
By XJCSENSOR
Model: X-ST207-D
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

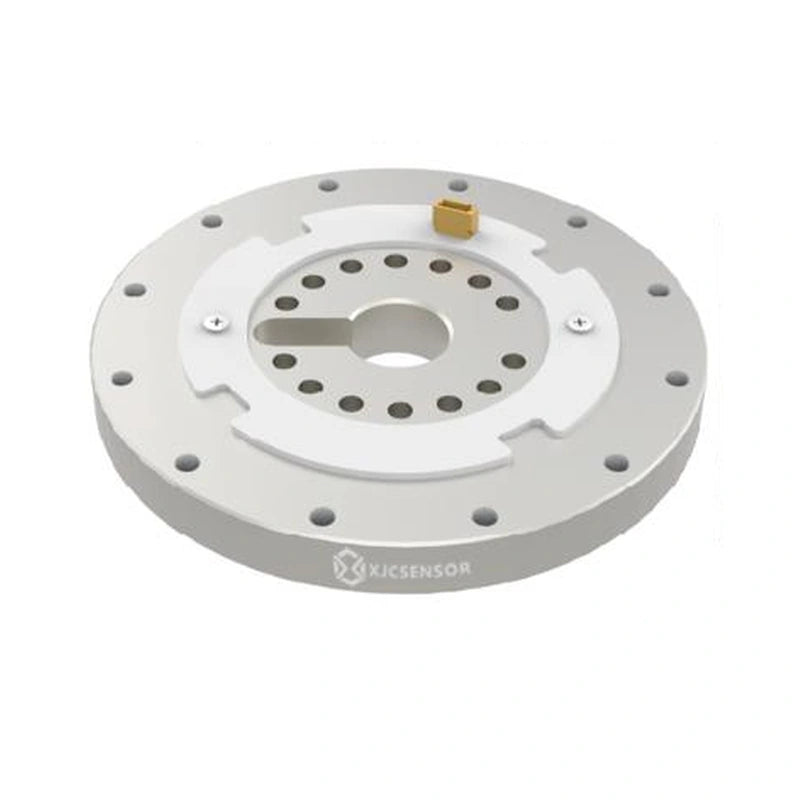

The XJCSENSOR X-ST207-D is a joint torque sensor (Ø83 × 9 mm), rated 98N.m, with 0.5–4.5 V output.
Features
- Various communication/output options available
- High sampling frequency, quick response, strong anti-interference
- High precision based on the resistance strain principle
- Small size and thin profile with high torsional rigidity and strong overload protection
Specifications
| Capacity | 98N.m |
|---|---|
| Output | 0.5–4.5 V |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.5% F.S. |
| Hysteresis | ≤0.5% F.S. |
| Excitation | 5 VDC |
| Sampling frequency | ≥300 Hz |
| Protection | IP54 |
| Safe / ultimate load | 200% F.S. / 300% F.S. |
| Crosstalk (axial force / radial force / bending moment) | 240N / 390N / 45N.m |
| Torsional stiffness | 140KN.m/rad |
| Cross-talk error | ≤1% F.S. |
| Operating temperature | −10~60 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.5% F.S./10 °C / ≤0.5% F.S./10 °C |
| Creep (30 min) | ≤0.2% F.S. |
| Material | Aluminum |
| Dimensions | Ø83 × 9 (amplifier height ≤6); Ø14 bore; Ø59.3 amplifier board |
| Mounting | Outer ring 14×Ø3.3 through on Ø75.5 PCD; 11×M4 depth 8 on Ø33 PCD (16.5±0.02); Ø41/Ø44 pilots; Ø4 through; Ø3 depth 3 locating pin |
| Connection | 4-pin connector BM04B-SRSS-TB |
Capacity options
98N.m
Applications
Force/torque detection in industrial automation, automotive industry, bolt tightening technology, electric motors and pumps.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Connector model BM04B-SRSS-TB (4-pin): Pin1 GND; Pin2 5V; Pin3 CH1 (signal); Pin4 NC. Output 0.5 V / 2.5 V / 4.5 V = -FS / 0 / +FS. Inner ring fixed; torque applied to the outer ring in the arrow direction is defined as positive.
