XJCSENSOR X-ST-B Static Torque Sensor, flat disc type, 0.2–100 Nm
By XJCSENSOR
Model: X-ST-B
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

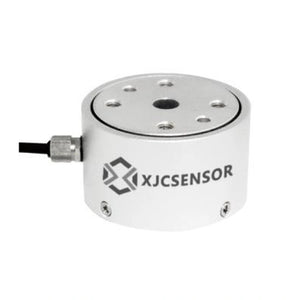

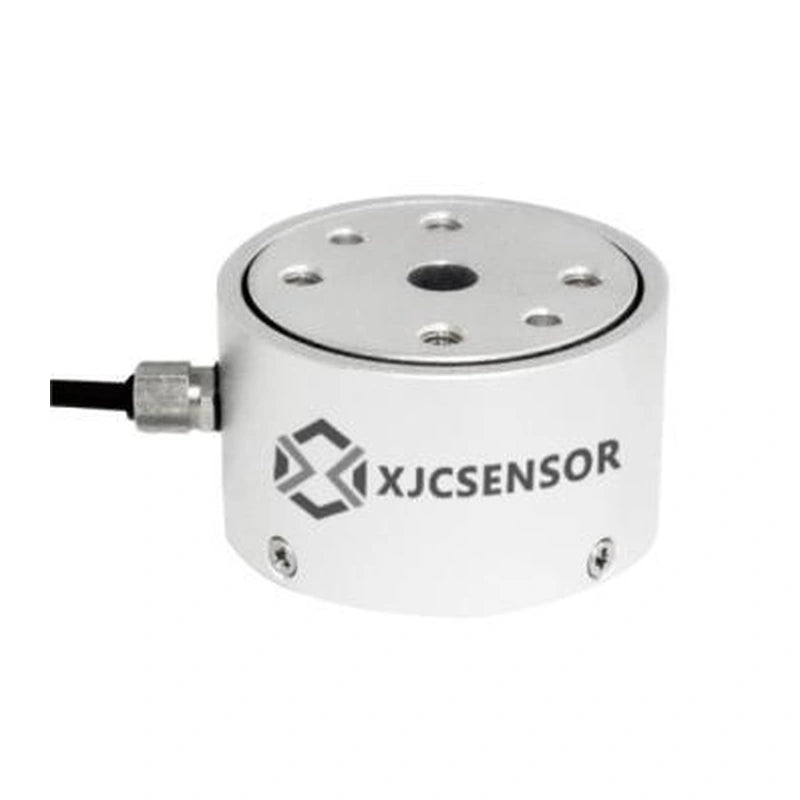

The XJCSENSOR X-ST-B is a static torque sensor (Ø41.2 mm), ranges 0.2Nm, 0.5Nm, 1Nm, 5Nm, 10Nm, 20Nm, 50Nm, 100Nm, with mV/V output.
Features
- High-precision resistance strain principle
- Measuring range 0–100 Nm
- Easy to install
- Compact size
- High response frequency
Specifications
| Capacity | 0.2Nm; 0.5Nm; 1Nm; 5Nm; 10Nm; 20Nm; 50Nm; 100Nm |
|---|---|
| Output | mV/V (0.8–2.0 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.2% F.S. |
| Hysteresis | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP54 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.2% F.S. |
| Input / output impedance | 380±30 Ω / 350±10 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Aluminum alloy / Alloy steel |
| Dimensions | Ø41.2 (Ø36.5 / Ø35.5) × 25 (24) |
| Mounting | 4×M4 depth 6 EQS on Ø25.4 PCD (both faces); 2×Ø3.2 depth 4 locating holes; Ø6.35 centre |
| Connection | Ø3×4 m |
Capacity options
0.2Nm; 0.5Nm; 1Nm; 5Nm; 10Nm; 20Nm; 50Nm; 100Nm
Applications
Motor, engine and other rotary power equipment testing; torque and power measurement in locomotive, automobile, aircraft and mining machinery.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Ex+ Red; Ex- Black; Sig+ Green; Sig- White (bridge with shield).
