XJCSENSOR X-ST-A Static Torque Sensor, flange-to-flange, 1–100 Nm
By XJCSENSOR
Model: X-ST-A
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

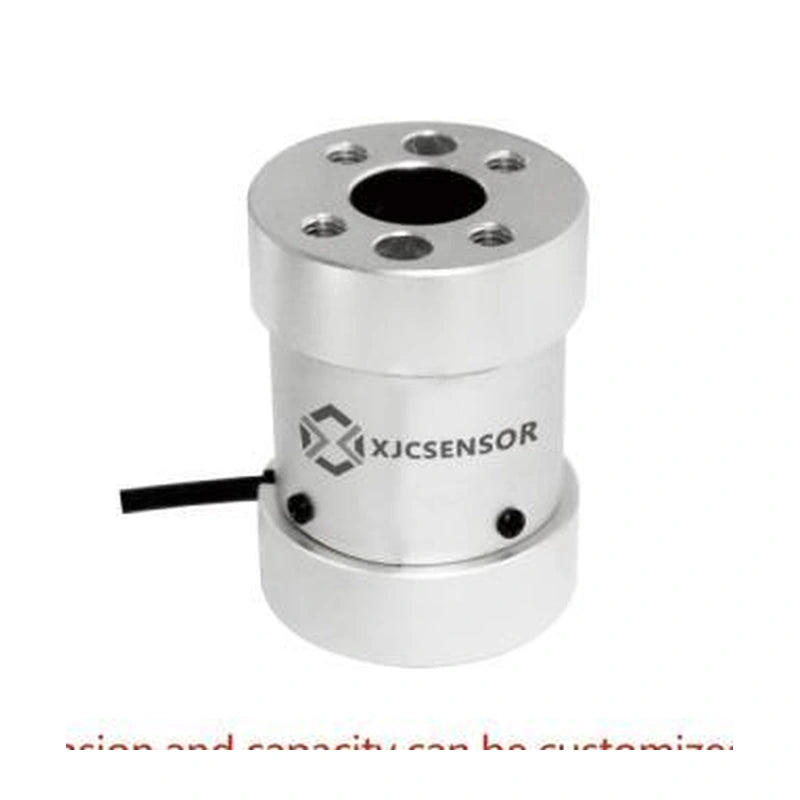

The XJCSENSOR X-ST-A is a static torque sensor (Ø37.6 × 50.8 mm), ranges 1Nm, 5Nm, 10Nm, 20Nm, 50Nm, 100Nm, with mV/V output.
Features
- High-precision resistance strain principle
- Measuring range 0–100 Nm
- Easy to install
- Compact size
Specifications
| Capacity | 1Nm; 5Nm; 10Nm; 20Nm; 50Nm; 100Nm |
|---|---|
| Output | mV/V (1.0–2.0 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.2% F.S. |
| Hysteresis | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP54 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.2% F.S. |
| Input / output impedance | 380±30 Ω / 350±5 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Aluminum alloy / Alloy steel |
| Dimensions | Ø37.6 × 50.8 (12.8 mm flanges) |
| Mounting | 4×M5 depth 9.5 EQS on Ø25.4 PCD; 2×Ø6 depth 9.5 locating holes; Ø14.75 through bore (both ends) |
| Connection | Ø3×4 m |
Capacity options
1Nm; 5Nm; 10Nm; 20Nm; 50Nm; 100Nm
Applications
Motor, engine and other rotary power equipment testing; torque and power measurement in locomotive, automobile, aircraft and mining machinery.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Ex+ Red; Ex- Black; Sig+ Green; Sig- White (bridge with shield).
