XJCSENSOR X-S07-Q-15 Micro Canister Load Cell, Ø15 mm, 5–50 kg
By XJCSENSOR
Model: X-S07-Q-15
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview

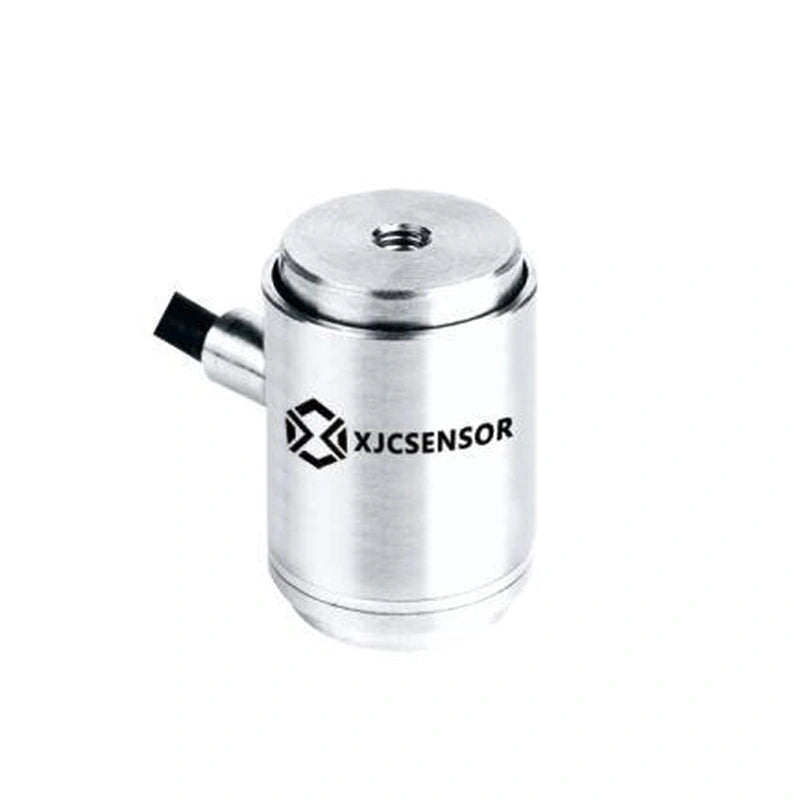

The XJCSENSOR X-S07-Q-15 is a micro canister load cell (Ø15 × 22 mm), available from 5kg to 50kg, with mV/V (2.0±0.2 mV/V rated output) strain-gauge output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–50 kg
- Compression and tension, easy to install
- Small size
Specifications
| Capacity | 5kg; 10kg; 20kg; 50kg |
|---|---|
| Output | mV/V (2.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.05% F.S. |
| Repeatability | ≤0.05% F.S. |
| Hysteresis | ≤0.05% F.S. |
| Zero balance | ±2% F.S. |
| Excitation / power supply | 5–10 VDC (max 10 VDC) |
| Protection | IP54 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.05% F.S. |
| Input / output impedance | 350±10 Ω / 350±5 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø15 × 22 (2 + 18 + 2); Ø13 |
| Mounting | M3 depth 3 centre; 3×M2 depth 3 EQS on Ø10 PCD |
| Connection | Ø3×4 m |
Capacity options
5kg; 10kg; 20kg; 50kg
Applications
Tension and compression testing instruments and automatic equipment: small-range force testing instruments, hopper scales, lifting hook scales, insertion force test instruments.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Ex+ Red; Ex- Black; Sig+ Green; Sig- White (full bridge with shield).
🛠
