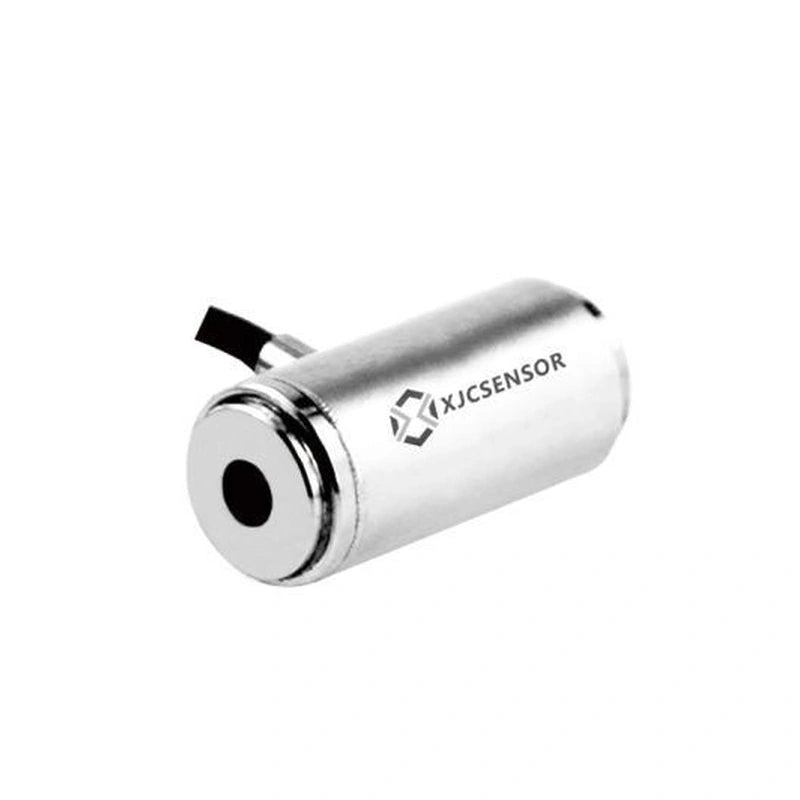

XJCSENSOR X-S07-Q-10 Micro Canister Load Cell, Ø10 mm, 3–10 kg
By XJCSENSOR
Model: X-S07-Q-10
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
The XJCSENSOR X-S07-Q-10 is a micro canister load cell (Ø10 × 22 mm), available from 3kg to 10kg, with mV/V (1.5–2.0 mV/V rated output) strain-gauge output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–10 kg
- Compression and tension, easy to install
- Small size
Specifications
| Capacity | 3kg; 5kg; 10kg |
|---|---|
| Output | mV/V (1.5–2.0 mV/V rated output) |
| Nonlinearity | ≤0.1% F.S. |
| Repeatability | ≤0.1% F.S. |
| Hysteresis | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation / power supply | 5–10 VDC (max 10 VDC) |
| Protection | IP54 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.2% F.S. |
| Input / output impedance | 350±10 Ω (650±10 Ω) / 350±5 Ω (650±10 Ω) |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø10 × 22; Ø9 / Ø4 steps |
| Mounting | M3 depth 5 both ends; side cable Ø3 at 11 |
| Connection | Ø2×4 m |
Capacity options
3kg; 5kg; 10kg
Applications
Tension and compression testing instruments and automatic equipment: small-range force testing instruments, hopper scales, lifting hook scales, insertion force test instruments.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Ex+ Red; Ex- Black; Sig+ Green; Sig- White (full bridge with shield).
🛠
