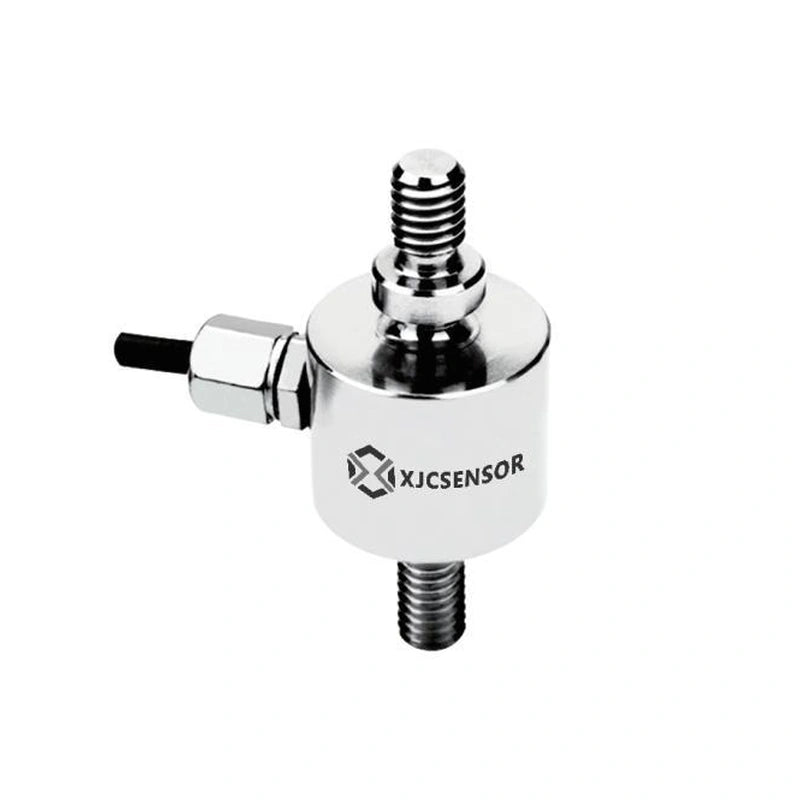

XJCSENSOR X-S05-13 Miniature In-line Load Cell, Ø13 mm, 5–100 kg
By XJCSENSOR
Model: X-S05-13
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-S05-13 is a miniature in-line load cell (Ø13 × 31 mm), available from 5kg to 100kg, with mV/V (5kg 0.5–1.0 mV/V; 10–100kg 1.0±0.2 mV/V rated output) strain-gauge output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–100 kg
- Sealed welded construction, resistant to oil, water and corrosion
- Compression and tension, easy to install
- Small size
Specifications
| Capacity | 5kg; 10kg; 50kg; 100kg |
|---|---|
| Output | mV/V (5kg 0.5–1.0 mV/V; 10–100kg 1.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.5% F.S. |
| Hysteresis | ≤0.5% F.S. |
| Zero balance | ±2% F.S. |
| Excitation / power supply | 5–10 VDC (max 10 VDC) |
| Protection | IP65 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 1000±100 Ω / 1000±100 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø13 × 31 overall (incl. studs) |
| Mounting | M6 threaded studs both ends (Ø6) |
| Connection | Ø2×4 m |
Capacity options
5kg; 10kg; 50kg; 100kg
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Ex+ Red; Ex- Black; Sig+ Green; Sig- White (full bridge with shield).
