XJCSENSOR X-H45 Through-Hole Load Cell, Ø45 mm, Ø26 bore, 50–100 kg
By XJCSENSOR
Model: X-H45
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

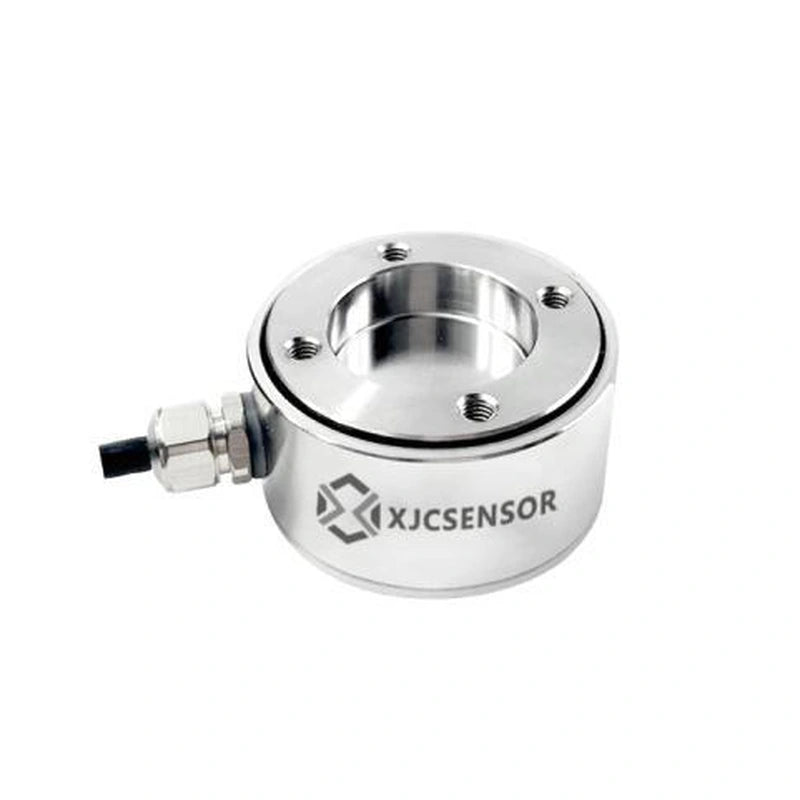

The XJCSENSOR X-H45 is a through-hole load cell (Ø45 mm), available from 50kg to 100kg, with mV/V (1.0±0.2 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–100 kg
- Robust pressure-bearing structure with simplified installation
- High response frequency and high precision
Specifications
| Capacity | 50kg; 100kg |
|---|---|
| Output | mV/V (1.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.1% F.S. |
| Hysteresis | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP54 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 750±50 Ω / 700±10 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø45 (Ø40) × 25 (24); Ø26 through hole |
| Mounting | 4×M4 depth 6 on Ø32 PCD, top and bottom |
| Connection | Ø4×4 m |
Capacity options
50kg; 100kg
Applications
Tension and/or compression testing of screw bolts and rod pieces.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
