XJCSENSOR X-H25 Through-Hole Load Cell, Ø25 mm, Ø6.6 bore, 5–100 kg
By XJCSENSOR
Model: X-H25
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

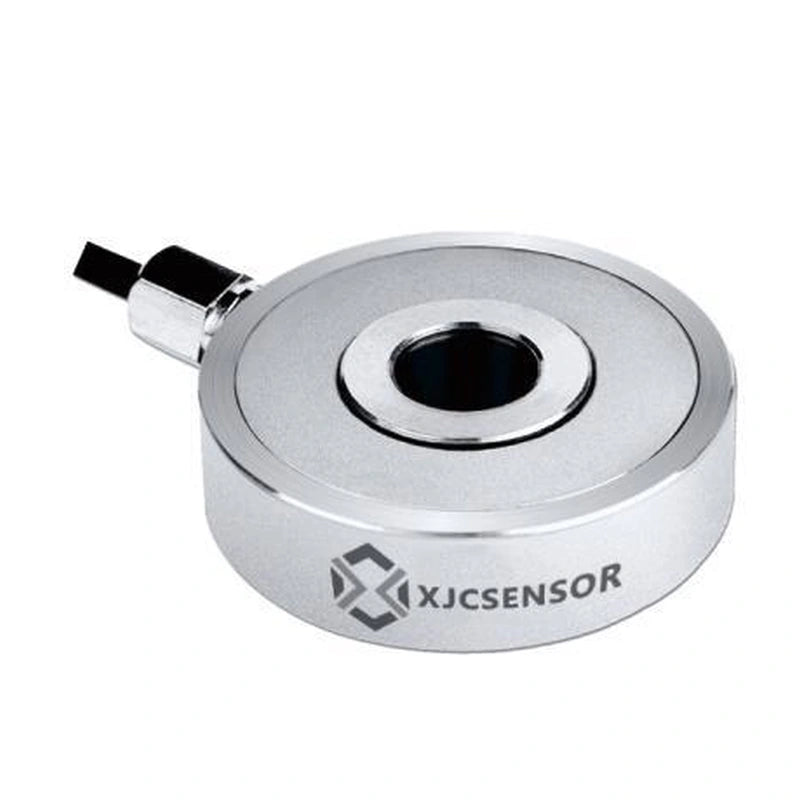

The XJCSENSOR X-H25 is a through-hole load cell (Ø25 × 7.1 mm), available from 5kg to 100kg, with mV/V (1.5–2.0 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–100 kg
- Robust pressure-bearing structure with simplified installation
- Small size
- High response frequency and high precision
Specifications
| Capacity | 5kg; 10kg; 20kg; 50kg; 100kg |
|---|---|
| Output | mV/V (1.5–2.0 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.2% F.S. |
| Hysteresis | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP54 |
| Safe / ultimate load | 120% F.S. / 150% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.2% F.S. |
| Input / output impedance | 350±10 Ω (700±50 Ω) / 350±10 Ω (700±10 Ω) |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø25 × 7.1 (6.6); Ø11.7 load ring; Ø6.6 through hole |
| Mounting | Through-hole (washer) mounting |
| Connection | Ø2×4 m |
Capacity options
5kg; 10kg; 20kg; 50kg; 100kg
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
