XJCSENSOR X-H105 Through-Hole Load Cell, Ø105 mm, M45×1.5 bore, 0.5–5 t
By XJCSENSOR
Model: X-H105
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

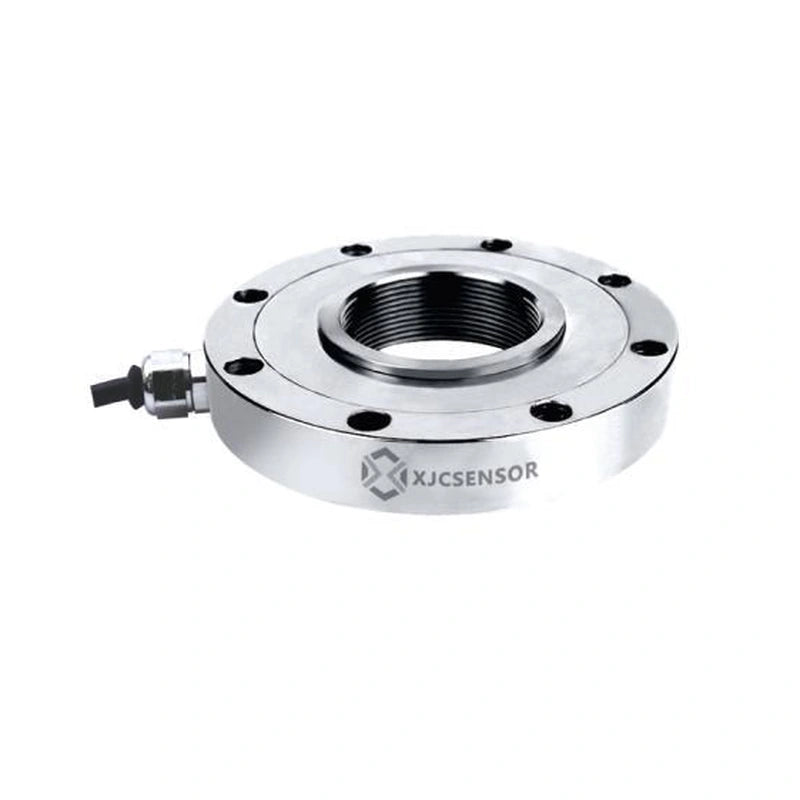

The XJCSENSOR X-H105 is a through-hole load cell (Ø105 × 19 mm), available from 0.5t to 5t, with mV/V (1.0±0.2 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–5 t
- Robust pressure-bearing structure with simplified installation
- High response frequency
Specifications
| Capacity | 0.5t; 1t; 2t; 5t |
|---|---|
| Output | mV/V (1.0±0.2 mV/V rated output) |
| Nonlinearity | 0.1–0.5% F.S. |
| Repeatability | ≤0.2% F.S. |
| Hysteresis | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.2% F.S. |
| Input / output impedance | 750±50 Ω (1450±50) / 700±10 Ω (1400±50) |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Alloy steel |
| Dimensions | Ø105 × 19; Ø55 boss with M45×1.5 internal thread |
| Mounting | 8×M8 through EQS on Ø93 PCD at 22.5°; M45×1.5 bore |
| Connection | Ø4×4 m |
Capacity options
0.5t; 1t; 2t; 5t
Applications
Tension and compression testing instruments and weighing scales: test instruments, press machines, hydraulic presses, hopper scales, electronic lifting hook scales, hot/cold lamination machines.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
