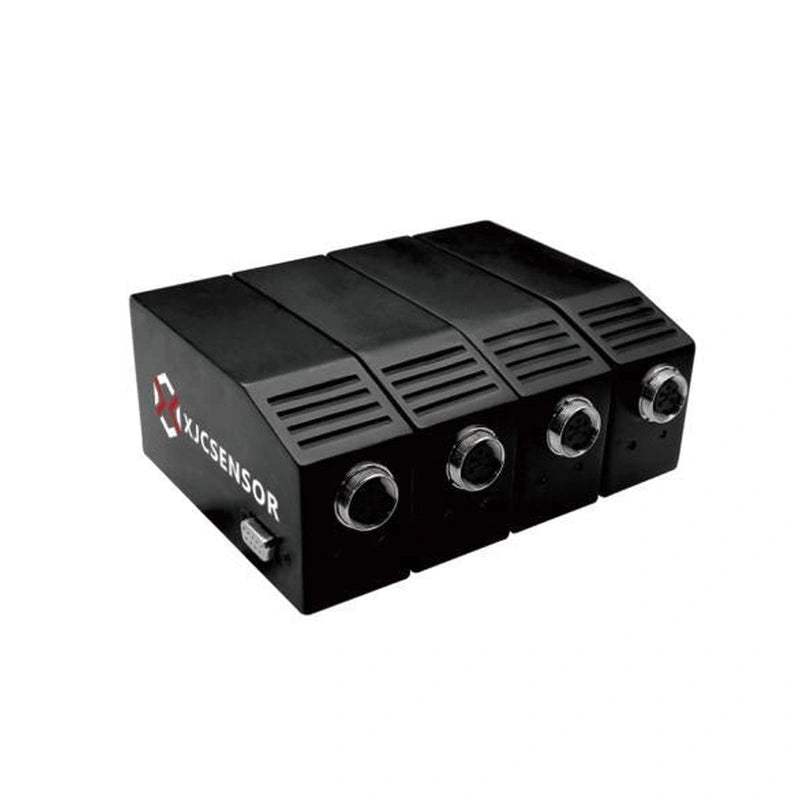

XJCSENSOR X-GMPS-1M Multi-Channel Probe Networking Module, RS485 Modbus RTU, 4 probes per module
By XJCSENSOR
Model: X-GMPS-1M
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
The XJCSENSOR X-GMPS-1M is a multi-channel probe networking module, 4 probe channels per module; up to 32 modules spliced, with RS485 output, powered from 12–28 VDC.
Features
- Can be reset by instruction
- Any channel can receive instructions and send data, or channels send independently
- Free splicing of modules
- Default RS485, optional RS232
Specifications
| Channels / inputs | 4 probe channels per module; up to 32 modules spliced |
|---|---|
| Output | RS485 |
| Excitation / power supply | 12–28 VDC |
| Operating temperature | −10~70 °C |
| Bus type | Modbus RTU |
| Baud rate | Default 115200, settable |
| Max splice quantity | 32 modules |
| Data update time | N × 30 ms (N = number of channels) |
| Trigger mode | Default command mode, switchable to automatic upload |
| Sampling value | 18 digits |
| Resolution | 1 µm |
| Zero function | By instruction |
| Dimensions | 116 × 61 × 38 |
| Mounting | Modules splice side-by-side |
| Connection | 9-pin connector (DB9) |
Applications
Networking multiple X-WLX displacement probes to one RS485 bus.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
🛠
