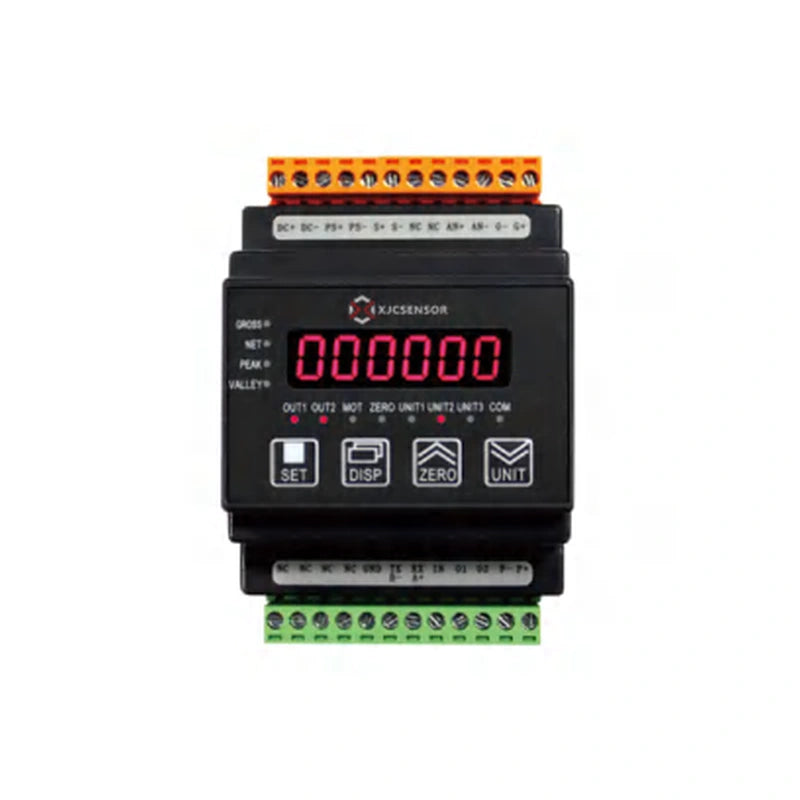

XJCSENSOR X-F60 DIN-Rail Indicator / Transmitter, RS232/RS485/analog

By XJCSENSOR

The XJCSENSOR X-F60 is a din-rail indicator / transmitter, 1 channel, with RS485 + RS232 + ±10 V + 4–20 mA output, powered from 24 VDC (5 VDC sensor supply).

Pricing on request

Your Configuration

Pricing on request

Main product quantity

All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.

  • Software, hardware, and deployment support can be quoted together.
  • Knoxlabs can help with configuration, integration, shipping and support.

Request a quote

Tell us what you need — hardware, software, and deployment support can be quoted together.

We respond within 24 hours — typically much faster during business hours.

Product details

per item

Product details

Overview

The XJCSENSOR X-F60 is a din-rail indicator / transmitter, 1 channel, with RS485 + RS232 + ±10 V + 4–20 mA output, powered from 24 VDC (5 VDC sensor supply).

Features
  • Built-in multi-stage amplification chip with independent power supply for the sensor
  • Multiple sensitivity inputs, switchable
  • High speed, high transmission speed and high dynamic response frequency
  • Good long-term stability and anti-interference performance
Specifications
Channels / inputs 1 channel
Output RS485 + RS232 + ±10 V + 4–20 mA
Nonlinearity 0.1%–0.03% F.S.
Repeatability 0.1%–0.05% F.S.
Hysteresis 0.1%–0.05% F.S.
Zero balance ±2% F.S.
Excitation / power supply 24 VDC (5 VDC sensor supply)
Operating temperature −10~50 °C, humidity below 85%RH
Rated input 0.5–3.0 mV/V
Resolution 1/50000
Sampling rate 15–1920Hz (switchable)
Display −199999–999999
Power ≈5W
Material Plastic
Dimensions 108 × 88.5 × 71.5 (61.5 / 59.1)
Mounting DIN-rail
Connection Ex+ Red; Ex− Black; Sig+ Green; Sig− White
Ordering guide

Model code

MDL Input signal Power supply Transmitting out
X-F60 M: mV D: 24VDC R2: RS232; R4: RS485; V: 0–10V / ±10V; A: 4–20mA
Applications

Works with strain-gauge, ceramic piezoresistive and diffused-silicon piezoresistive sensors to convert and transmit force, pressure, weight, displacement, torque and liquid level; signal can be fed directly to computers or other measurement and control instruments.

Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.

Wiring

Ex+ Red; Ex- Black; Sig+ Green; Sig- White (full bridge with shield).

Features

  • Built-in multi-stage amplification chip with independent power supply for the sensor
  • Multiple sensitivity inputs, switchable
  • High speed, high transmission speed and high dynamic response frequency
  • Good long-term stability and anti-interference performance

Technical Specifications

Product specifications, requirements, and deployment details.

Product specifications

Channels / inputs
1 channel
Output
RS485 + RS232 + ±10 V + 4–20 mA
Nonlinearity
0.1%–0.03% F.S.
Repeatability
0.1%–0.05% F.S.
Hysteresis
0.1%–0.05% F.S.
Zero balance
±2% F.S.
Excitation / power supply
24 VDC (5 VDC sensor supply)
Operating temperature
−10~50 °C, humidity below 85%RH
Rated input
0.5–3.0 mV/V
Resolution
1/50000
Sampling rate
15–1920Hz (switchable)
Display
−199999–999999
Power
≈5W
Material
Plastic
Dimensions
108 × 88.5 × 71.5 (61.5 / 59.1)
Mounting
DIN-rail
Connection
Ex+ Red; Ex− Black; Sig+ Green; Sig− White

MDL: X-F60

MDL
X-F60
Input signal
M: mV
Power supply
D: 24VDC
Transmitting out
R2: RS232; R4: RS485; V: 0–10V / ±10V; A: 4–20mA
🛠
