Product details
Overview

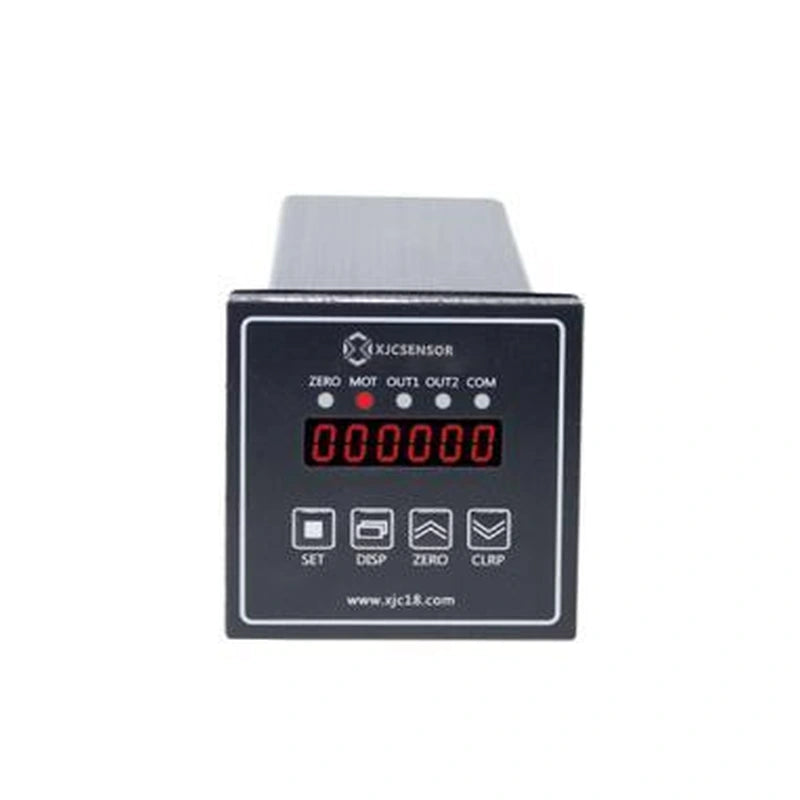

The XJCSENSOR X-F50 is a panel weighing / force indicator, 1 channel, with RS485 + RS232 + RS422 + ±10 V + 4–20 mA output, powered from 24 VDC (5 VDC sensor supply).
Features
- Multiple working modes
- High stability
- Bidirectional isolated serial port (RS232/RS485) for host communication
- Weight calibration, sensitivity calibration, intelligent calibration
Specifications
| Channels / inputs | 1 channel |
|---|---|
| Output | RS485 + RS232 + RS422 + ±10 V + 4–20 mA |
| Nonlinearity | 0.03% |
| Repeatability | 0.03% |
| Hysteresis | 0.03% |
| Excitation / power supply | 24 VDC (5 VDC sensor supply) |
| Operating temperature | −10~50 °C, ≤85%RH |
| Accuracy | 0.03% F.S. |
| Rated input | 0.5–3.0 mV/V |
| Resolution | 1/50000 |
| Sampling rate | 15–1920Hz |
| Display | 0–50000 |
| Switch I/O | 2 alarm outputs / 1 input |
| Power consumption | ≈5W |
| Function switch | Real-time, peak and valley value |
| Material | Metal aluminum housing |
| Dimensions | 55 × 55 face; 84.5 deep; panel cut-out 46 × 46 |
| Mounting | Panel mount, 46 × 46 cut-out |
Ordering guide
Model code
| MDL | Input signal | Power supply | Transmitting out |
|---|---|---|---|
| X-F50 | M: mV | D: 24VDC | R2: RS232; R4: RS485; V: ±10V; A: 4–20mA |
Applications
Automobile, medical, robot, electronic, mechanical and automation equipment; force measurement such as stress tests, pull/compression tests and fit-force detection for assembly of automobiles, motorcycles, bicycles and electric motors.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
