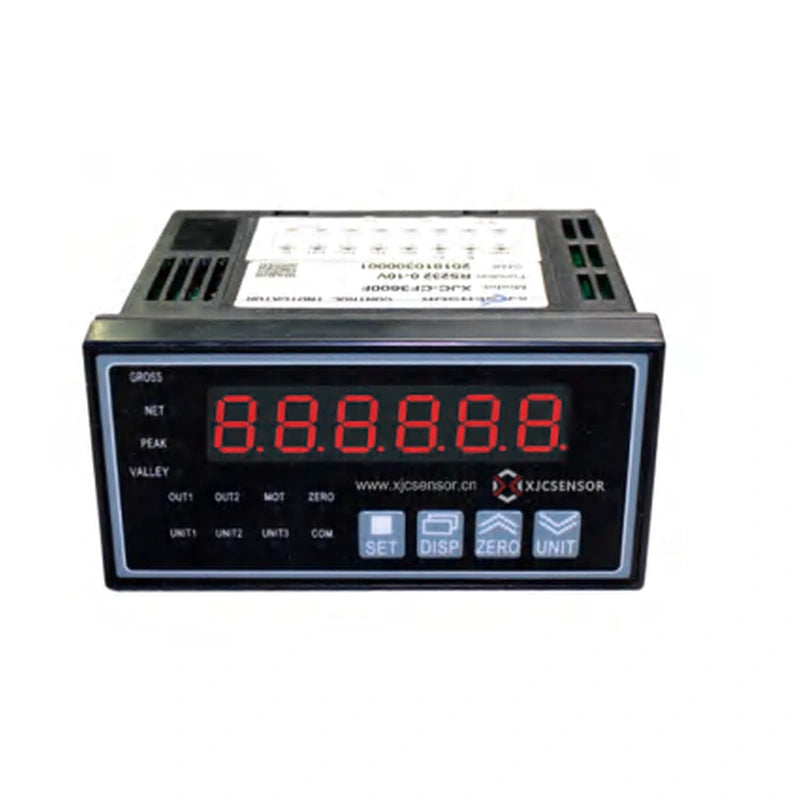

XJCSENSOR X-F30 Panel Weighing / Force Indicator, 96 × 48 panel, RS232/RS485/analog
By XJCSENSOR
The XJCSENSOR X-F30 is a panel weighing / force indicator, 1 channel, with RS485 + RS232 + RS422 + ±10 V + 4–20 mA output, powered from 24 VDC (5 VDC sensor supply).
Pricing on request
Your Configuration
Quote required
One or more selected items need a quote. Your request will include every selected product and quantity.
Quote required for:Pricing on request
All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
The XJCSENSOR X-F30 is a panel weighing / force indicator, 1 channel, with RS485 + RS232 + RS422 + ±10 V + 4–20 mA output, powered from 24 VDC (5 VDC sensor supply).
Features
- Multiple working modes
- High stability
- Bidirectional isolated serial port (RS232/RS485) for host communication
- Calibration function without weights
Specifications
| Channels / inputs | 1 channel |
|---|---|
| Output | RS485 + RS232 + RS422 + ±10 V + 4–20 mA |
| Nonlinearity | 0.03% |
| Repeatability | 0.03% |
| Hysteresis | 0.03% |
| Excitation / power supply | 24 VDC (5 VDC sensor supply) |
| Operating temperature | −10~50 °C, ≤85%RH |
| Accuracy | 0.03% F.S. |
| Rated input | 0.5–3.0 mV/V |
| Resolution | 1/50000 |
| Sampling rate | 15–1920Hz |
| Display | 0–50000 |
| Switch I/O | 2 alarm outputs / 1 input |
| Power consumption | ≈5W |
| Function switch | Real-time, peak and valley value |
| Material | Plastic housing |
| Dimensions | 96 × 48 face; 71 deep; panel cut-out 92 × 45 |
| Mounting | Panel mount, 92 × 45 cut-out |
Ordering guide
Model code
| MDL | Input signal | Power supply | Transmitting out |
|---|---|---|---|
| X-F30 | M: mV | D: 24VDC | R2: RS232; R4: RS485; V: ±10V; A: 4–20mA |
Applications
Automobile, medical, robot, electronic, mechanical and automation equipment; force measurement such as stress tests, pull/compression tests and fit-force detection for assembly of automobiles, motorcycles, bicycles and electric motors.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Features
- Multiple working modes
- High stability
- Bidirectional isolated serial port (RS232/RS485) for host communication
- Calibration function without weights
Technical Specifications
Product specifications, requirements, and deployment details.
Product specifications
- Channels / inputs
- 1 channel
- Output
- RS485 + RS232 + RS422 + ±10 V + 4–20 mA
- Nonlinearity
- 0.03%
- Repeatability
- 0.03%
- Hysteresis
- 0.03%
- Excitation / power supply
- 24 VDC (5 VDC sensor supply)
- Operating temperature
- −10~50 °C, ≤85%RH
- Accuracy
- 0.03% F.S.
- Rated input
- 0.5–3.0 mV/V
- Resolution
- 1/50000
- Sampling rate
- 15–1920Hz
- Display
- 0–50000
- Switch I/O
- 2 alarm outputs / 1 input
- Power consumption
- ≈5W
- Function switch
- Real-time, peak and valley value
- Material
- Plastic housing
- Dimensions
- 96 × 48 face; 71 deep; panel cut-out 92 × 45
- Mounting
- Panel mount, 92 × 45 cut-out
MDL: X-F30
- MDL
- X-F30
- Input signal
- M: mV
- Power supply
- D: 24VDC
- Transmitting out
- R2: RS232; R4: RS485; V: ±10V; A: 4–20mA
