XJCSENSOR X-F100 Compact LCD Transmitter, 65 × 30 mm, RS232/RS485/analog
By XJCSENSOR
Model: X-F100
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

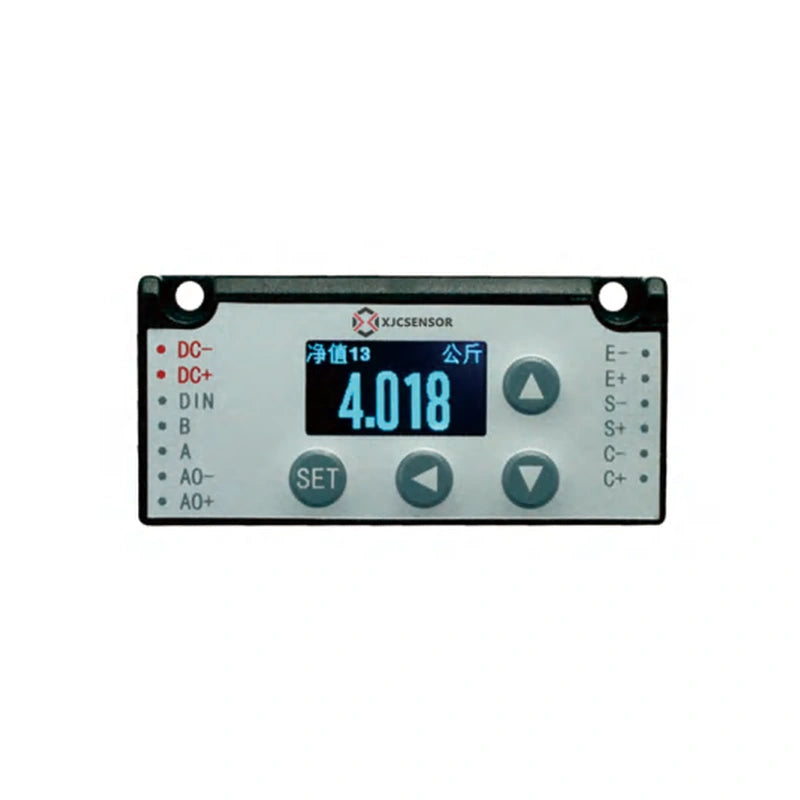

The XJCSENSOR X-F100 is a compact lcd transmitter, 1 channel, with RS485 + RS232 + ±10 V + 4–20 mA output, powered from 12 VDC / 24 VDC (5 VDC sensor supply).
Features
- Built-in multi-stage amplification chip with independent power supply for the sensor
- Multiple sensitivity inputs, switchable
- High speed, high transmission speed and high dynamic response frequency
- Good long-term stability and anti-interference performance
Specifications
| Channels / inputs | 1 channel |
|---|---|
| Output | RS485 + RS232 + ±10 V + 4–20 mA |
| Nonlinearity | 0.1%–0.03% F.S. |
| Repeatability | 0.1%–0.05% F.S. |
| Hysteresis | 0.1%–0.05% F.S. |
| Zero balance | ±2% F.S. |
| Excitation / power supply | 12 VDC / 24 VDC (5 VDC sensor supply) |
| Operating temperature | −10~50 °C, humidity below 85%RH |
| Rated input | 0.5–3.0 mV/V |
| Resolution | 1/50000 |
| Sampling rate | 15–1920Hz (switchable) |
| Display | −99999–99999 |
| Power | ≈5W |
| Material | Plastic |
| Dimensions | 65 × 30 × 10; 53 hole spacing; 2×Ø3.5, 2×Ø5.8 |
| Mounting | 2 screw holes |
| Connection | Ex+ Red; Ex− Black; Sig+ Green; Sig− White |
Ordering guide
Model code
| MDL | Input signal | Power supply | Transmitting out |
|---|---|---|---|
| X-F100 | M: mV | D: 24VDC | R2: RS232; R4: RS485; V: 0–10V / ±10V; A: 4–20mA |
Applications
Works with strain-gauge, ceramic piezoresistive and diffused-silicon piezoresistive sensors to convert and transmit force, pressure, weight, displacement, torque and liquid level; signal can be fed directly to computers or other measurement and control instruments.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
