XJCSENSOR X-EC10X EtherCAT Multi-Channel Digital Module, 1–8 channels, 4 kHz

By XJCSENSOR

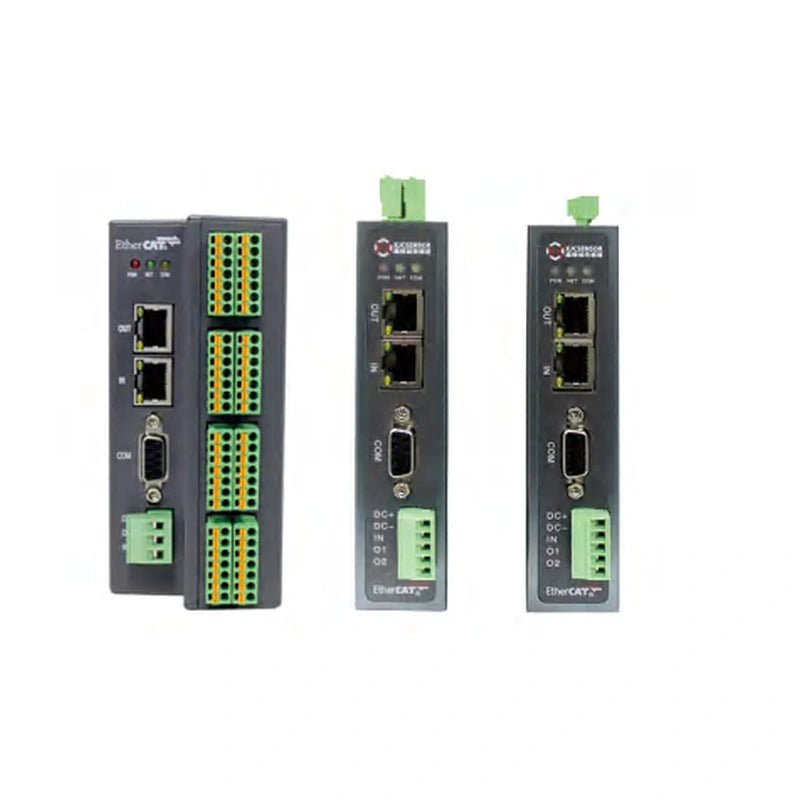

The XJCSENSOR X-EC10X is a ethercat multi-channel digital module, CH1: 1; CH2: 2; CH4: 4; CH6: 6; CH8: 8 channels (X-EC101/102/104/106/108), with EtherCAT + RS485 output, powered from 24 VDC (5 VDC sensor supply).

Pricing on request

Your Configuration

Pricing on request

Main product quantity

All sales are final across all brands. No customer-requested cancellations, returns, exchanges, or refunds, except where required by law or expressly agreed in writing. Manufacturer warranty claims go to the manufacturer; Knoxlabs can help with order details and support contacts.

  • Software, hardware, and deployment support can be quoted together.
  • Knoxlabs can help with configuration, integration, shipping and support.

Request a quote

Tell us what you need — hardware, software, and deployment support can be quoted together.

We respond within 24 hours — typically much faster during business hours.

Product details

per item

Product details

Overview

The XJCSENSOR X-EC10X is a ethercat multi-channel digital module, CH1: 1; CH2: 2; CH4: 4; CH6: 6; CH8: 8 channels (X-EC101/102/104/106/108), with EtherCAT + RS485 output, powered from 24 VDC (5 VDC sensor supply).

Features
  • Built-in multi-stage amplification chip with independent power supply for the sensor
  • Temperature and weight calibration
  • Independent channel sampling, high dynamic response frequency
  • Good long-term stability and anti-interference performance
Specifications
Channels / inputs CH1: 1; CH2: 2; CH4: 4; CH6: 6; CH8: 8 channels (X-EC101/102/104/106/108)
Output EtherCAT + RS485
Nonlinearity 0.002% F.S.
Repeatability 0.1%–0.05% F.S.
Hysteresis 0.1%–0.05% F.S.
Zero balance ±2% F.S.
Excitation / power supply 24 VDC (5 VDC sensor supply)
Operating temperature −10~50 °C, humidity below 85%RH
Rated input 0.2–3.0 mV/V
Resolution 1/10000
Sampling rate 10–4000Hz
Communication protocol EtherCAT
Power ≈10W
Material Engineering plastics
Dimensions EC106/EC108: 130 × 122 × 58.5; EC101/102/104: 147 (130) × 98 × 29
Mounting DIN-rail
Connection Ex+ Red; Ex− Black; Sig+ Green; Sig− White
Ordering guide

Model code

MDL Input channel Power supply Number of channels Smart module
X-EC108; X-EC106; X-EC104; X-EC102; X-EC101 M: mV D: 24VDC CH8: 8; CH6: 6; CH4: 4; CH2: 2; CH1: 1 T: TEDS
Applications

Works with strain-gauge, ceramic piezoresistive and diffused-silicon piezoresistive sensors to convert and transmit force, pressure, weight, displacement, torque and liquid level; signal can be fed directly to computers or other measurement and control instruments.

Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.

Wiring

Ex+ Red; Ex- Black; Sig+ Green; Sig- White (full bridge with shield).

Features

  • Built-in multi-stage amplification chip with independent power supply for the sensor
  • Temperature and weight calibration
  • Independent channel sampling, high dynamic response frequency
  • Good long-term stability and anti-interference performance

Technical Specifications

Product specifications, requirements, and deployment details.

Product specifications

Channels / inputs
CH1: 1; CH2: 2; CH4: 4; CH6: 6; CH8: 8 channels (X-EC101/102/104/106/108)
Output
EtherCAT + RS485
Nonlinearity
0.002% F.S.
Repeatability
0.1%–0.05% F.S.
Hysteresis
0.1%–0.05% F.S.
Zero balance
±2% F.S.
Excitation / power supply
24 VDC (5 VDC sensor supply)
Operating temperature
−10~50 °C, humidity below 85%RH
Rated input
0.2–3.0 mV/V
Resolution
1/10000
Sampling rate
10–4000Hz
Communication protocol
EtherCAT
Power
≈10W
Material
Engineering plastics
Dimensions
EC106/EC108: 130 × 122 × 58.5; EC101/102/104: 147 (130) × 98 × 29
Mounting
DIN-rail
Connection
Ex+ Red; Ex− Black; Sig+ Green; Sig− White

MDL: X-EC108; X-EC106; X-EC104; X-EC102; X-EC101

MDL
X-EC108; X-EC106; X-EC104; X-EC102; X-EC101
Input channel
M: mV
Power supply
D: 24VDC
Number of channels
CH8: 8; CH6: 6; CH4: 4; CH2: 2; CH1: 1
Smart module
T: TEDS
🛠
