Product details
Overview

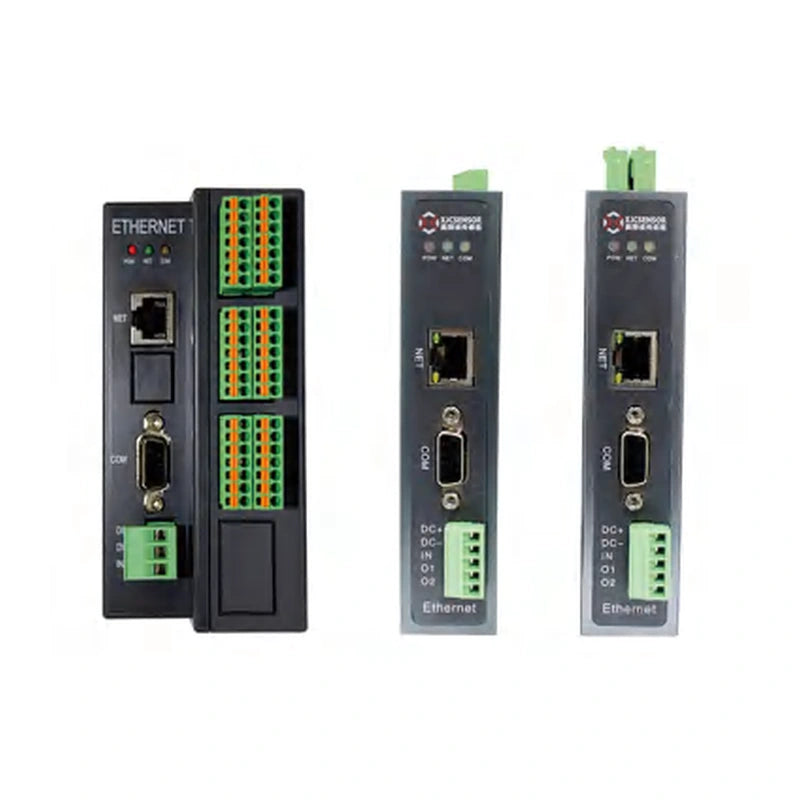

The XJCSENSOR X-E10XF is a modbus tcp multi-channel digital module, CH1: 1; CH2: 2; CH4: 4; CH6: 6; CH8: 8 channels (X-E101F/102F/104F/106F/108F), with Modbus TCP + RS485 output, powered from 24 VDC (5 VDC sensor supply).
Features
- Built-in multi-stage amplification chip with independent power supply for the sensor
- Temperature and weight calibration
- Independent channel sampling, high dynamic response frequency
- Good long-term stability and anti-interference performance
Specifications
| Channels / inputs | CH1: 1; CH2: 2; CH4: 4; CH6: 6; CH8: 8 channels (X-E101F/102F/104F/106F/108F) |
|---|---|
| Output | Modbus TCP + RS485 |
| Nonlinearity | 0.002% F.S. |
| Repeatability | 0.1%–0.05% F.S. |
| Hysteresis | 0.1%–0.05% F.S. |
| Zero balance | ±2% F.S. |
| Excitation / power supply | 24 VDC (5 VDC sensor supply) |
| Operating temperature | −10~50 °C, humidity below 85%RH |
| Rated input | 0.2–3.0 mV/V |
| Resolution | 1/50000 |
| Sampling rate | 10–4000Hz |
| Communication protocol | Modbus TCP/TC-ASC |
| Transmission output | RS485, EtherNET |
| Power | ≈10W |
| Material | Engineering plastics |
| Dimensions | E106/E108: 130 × 122 × 58.5; E101/102/104: 147 (130) × 98 × 29 |
| Mounting | DIN-rail |
| Connection | Ex+ Red; Ex− Black; Sig+ Green; Sig− White |
Ordering guide
Model code
| MDL | Input channel | Power supply | Number of channels | Smart module |
|---|---|---|---|---|
| X-E108F; X-E106F; X-E104F; X-E102F; X-E101F | M: mV | D: 24VDC | CH8: 8; CH6: 6; CH4: 4; CH2: 2; CH1: 1 | T: TEDS (RS485 enabled by default) |
Applications
Works with strain-gauge, ceramic piezoresistive and diffused-silicon piezoresistive sensors to convert and transmit force, pressure, weight, displacement, torque and liquid level; signal can be fed directly to computers or other measurement and control instruments.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
Ex+ Red; Ex- Black; Sig+ Green; Sig- White (full bridge with shield).
