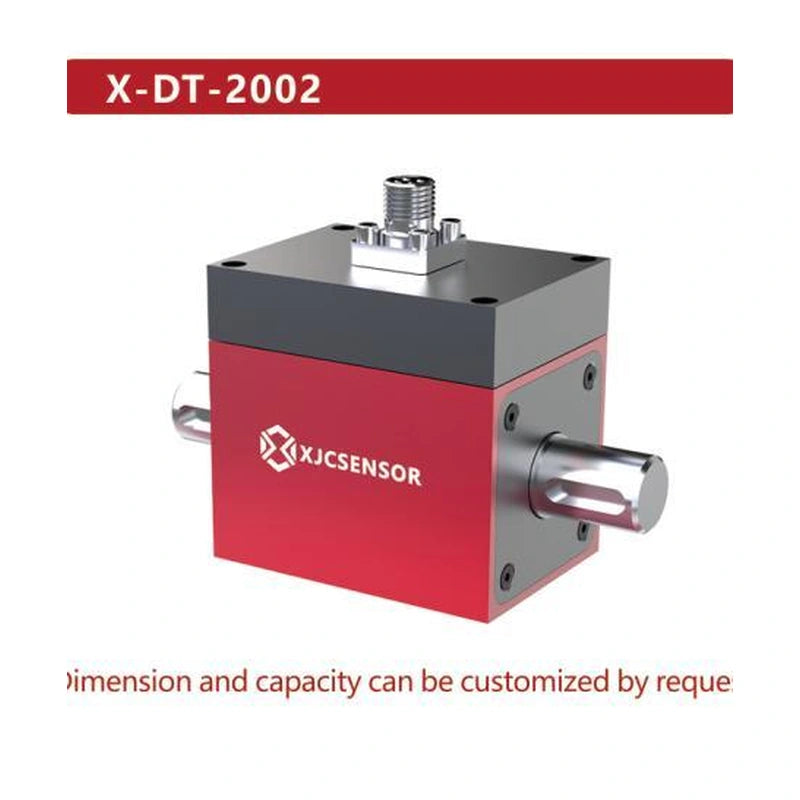

XJCSENSOR X-DT-2002 Dynamic Torque Sensor, non-contact with speed output, 5–100 Nm
By XJCSENSOR
Model: X-DT-2002
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-DT-2002 is a dynamic torque sensor for rotating shafts, ranges 5–100Nm, with ±10 V + RS485 + pulse (speed) output and a maximum speed of 5000 r/min.
Features
- Reset function and speed measurement (pulse output)
- Outputs positive and negative torque signals; several communication options
- Non-contact structure, no wear
- Up to 5000 r/min (customizable)
- High torsional rigidity and strong overload protection
- High-precision resistance strain gauge measuring principle
- High sampling frequency, quick response, strong anti-interference
Specifications
| Capacity | 5–100Nm |
|---|---|
| Output | ±10 V + RS485 + pulse (speed) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 24 VDC |
| Max rotating speed | 5000 r/min |
| Response frequency | 100 μs |
| Protection | IP64 |
| Safe / ultimate load | 200% F.S. |
| Operating temperature | −20~60 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Dimensions | 100 long overall (77 body, 20/26 shaft ends) × 45 wide × 72 high; Ø18 shafts |
| Mounting | 4×M5 depth 5 / depth 8 base holes |
| Connection | Ø5×4 m |
Capacity options
5–100Nm
Applications
Motor, engine and other rotary power equipment testing; torque and power measurement in locomotive, automobile, aircraft and mining machinery.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
24V+ red; 24V- black; Analog output+/RS485+ green; Analog output-/RS485- white; Angular velocity 1 blue; Angular velocity 2 (90° offset from channel 1) yellow; clear brown.
