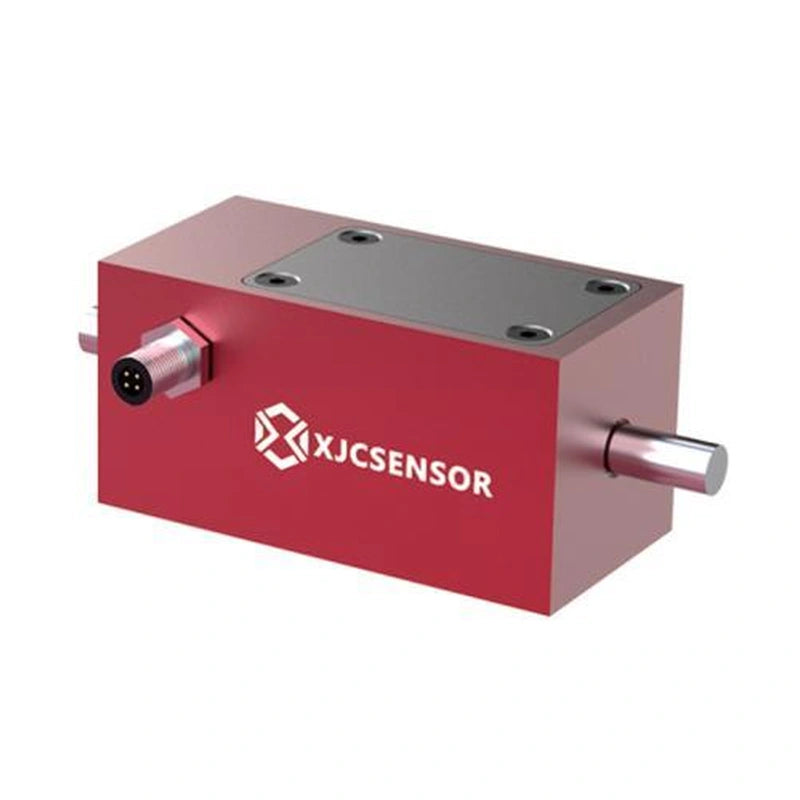

XJCSENSOR X-DT-1002 Dynamic Torque Sensor, contact type, 0.1–500 Nm
By XJCSENSOR
Model: X-DT-1002
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-DT-1002 is a dynamic torque sensor for rotating shafts, ranges 0.1–0.5Nm, 1–2Nm, 5–10Nm, 20–100Nm, 200–500Nm, with mV/V output and a maximum speed of 500 r/min.
Features
- Contact (slip-ring) structure
- Small size
- High torsional rigidity and strong overload protection
- High-precision resistance strain gauge measuring principle
- Outputs positive and negative torque signals; quick response
Specifications
| Capacity | 0.1–0.5Nm; 1–2Nm; 5–10Nm; 20–100Nm; 200–500Nm |
|---|---|
| Output | mV/V (0.5–1.0 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC |
| Max rotating speed | 500 r/min |
| Protection | IP64 |
| Safe / ultimate load | 200% F.S. |
| Operating temperature | −20~60 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Insulation | ≥2000 MΩ/50 VDC |
| Dimensions | Size by range (A×B×C, shaft ØE): 0.1–0.5 Nm 72×52×26, Ø5; 1–2 Nm 97×67×45, Ø8; 5–10 Nm 99×69×45, Ø12; 20–100 Nm 151×73×55, Ø20; 200–500 Nm 165×85×100, Ø30 |
| Mounting | 4×M depth N base holes; flat key and keyway default not optional (M3×6 to M6×8 by range) |
| Connection | Ø4×2 m |
Capacity options and dimensions (mm)
| Capacity | A | B | C | D | E | F | G | H | I | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.1–0.5N.m | 72 | 52 | 26 | 26 | 5 | 10 | 8 | / | / | / | / |
| 1–2N.m | 97 | 67 | 45 | 45 | 8 | 15 | 22.5 | 50 | 38 | M3 | 6 |
| 5–10N.m | 99 | 69 | 45 | 45 | 12 | 16 | 22.5 | 50 | 38 | M3 | 6 |
| 20–100N.m | 151 | 73 | 55 | 55 | 20 | 18 | 27.5 | 50 | 38 | M5 | 6 |
| 200–500N.m | 165 | 85 | 100 | 100 | 30 | 42.5 | 70 | 60 | 80 | M6 | 8 |
Applications
Motor, engine and other rotary power equipment testing; torque and power measurement in locomotive, automobile, aircraft and mining machinery.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
Wiring
EXC+ Brown/Red; SIG+ Blue/Green; SIG- White; EXC- Black.
