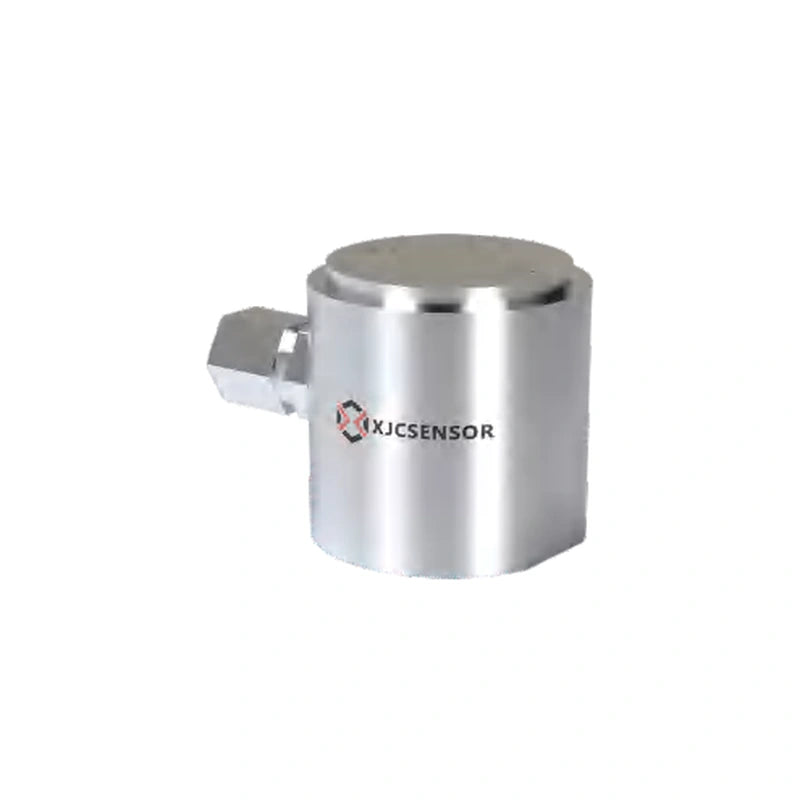

XJCSENSOR X-CS15-H15 Micro Column Load Cell, Ø13 × 15 mm, 5–100 kg
By XJCSENSOR
Model: X-CS15-H15
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-CS15-H15 is a micro column load cell (Ø13 body / Ø15 × 15 mm), available from 5kg to 100kg, with mV/V (2.0±0.2 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–100 kg
- Robust pressure-bearing structure with simplified installation
- Small size
- High response frequency and high precision
Specifications
| Capacity | 5kg; 10kg; 20kg; 50kg; 100kg |
|---|---|
| Output | mV/V (2.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.05% F.S. |
| Repeatability | ≤0.05% F.S. |
| Hysteresis | ≤0.05% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP54 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.05% F.S. |
| Input / output impedance | 350±10 Ω / 350±10 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø13 body / Ø15 × 15 (14); 9 / 14; Ø2×1 groove; top cable exit |
| Mounting | 2×M2 depth 2.5 top and bottom |
| Connection | Ø2×4 m |
Capacity options
5kg; 10kg; 20kg; 50kg; 100kg
Applications
Small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and robot gripper grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
