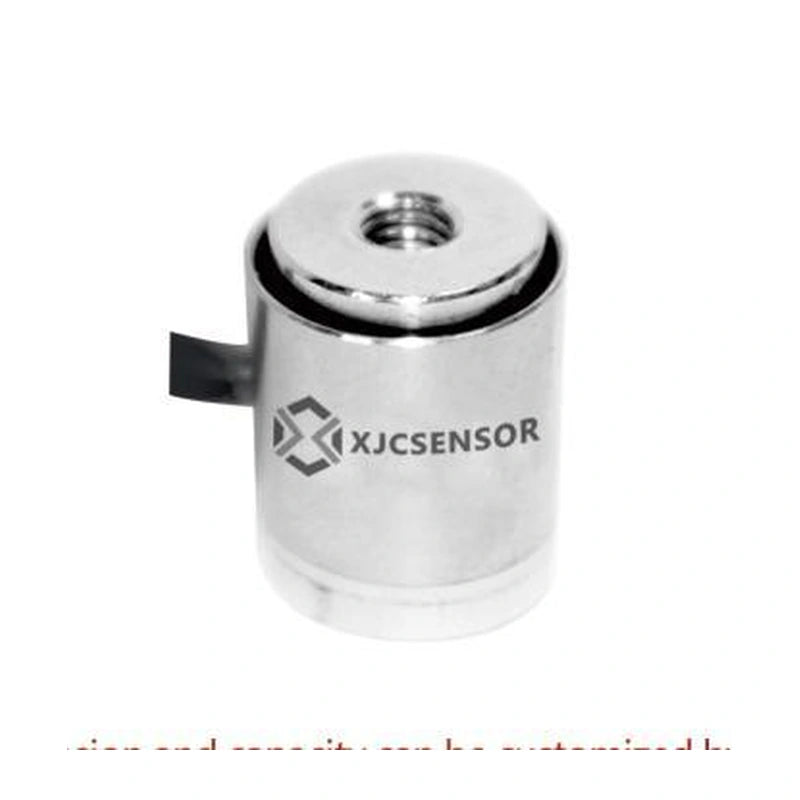

XJCSENSOR X-CS10-2M-H12-KL Micro Column Load Cell, Ø10 × 12 mm, 2–5 kg
By XJCSENSOR
Model: X-CS10-2M-H12-KL
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
The XJCSENSOR X-CS10-2M-H12-KL is a micro column load cell (Ø10 × 12±0.1 mm), available from 2kg to 5kg, with mV/V (1.0–2.2 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–5 kg
- Robust pressure-bearing structure with simplified installation
- Small size
- High response frequency and high precision
Specifications
| Capacity | 2kg; 3kg; 5kg |
|---|---|
| Output | mV/V (1.0–2.2 mV/V rated output) |
| Nonlinearity | ≤0.05% F.S. |
| Repeatability | ≤0.05% F.S. |
| Hysteresis | ≤0.05% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5 VDC (max 10 V DC) |
| Protection | IP54 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.05% F.S. |
| Input / output impedance | 350±10 Ω / 350±10 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø10 × 12±0.1; Ø4.5 neck; Ø3.8 cable boot ≤20 long (axial exit) |
| Mounting | M3 depth 2.5 top; 2×M2 depth 2.5 bottom |
| Connection | Ø2×4 m |
Capacity options
2kg; 3kg; 5kg
Applications
Small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
🛠
