Product details
Overview

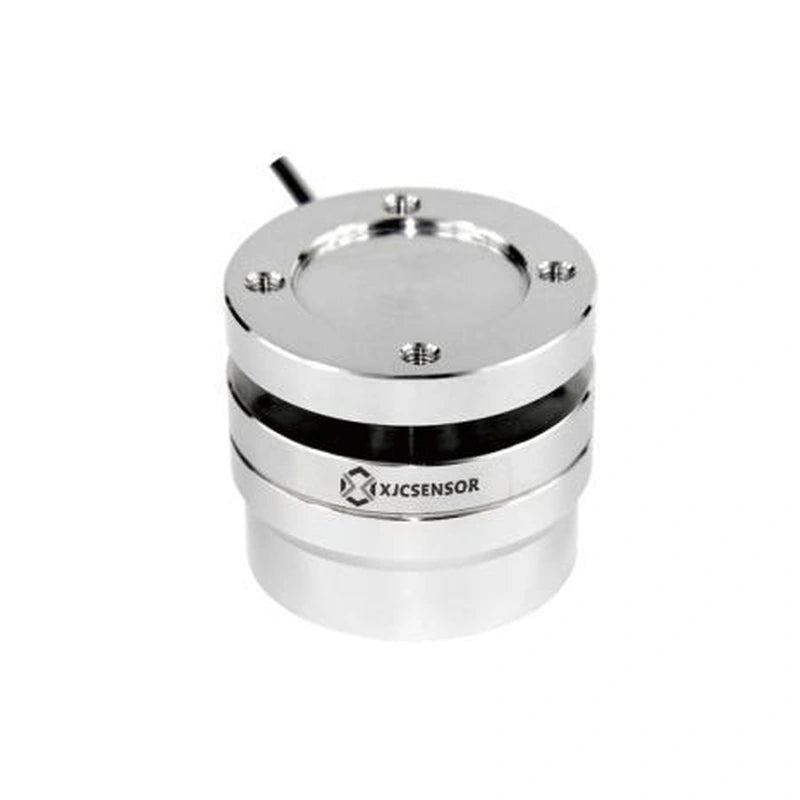

The XJCSENSOR X-CS-U3 is a tension-compression pancake load cell (ØA 54 × 34 mm), available from 0.05t to 10t, with mV/V (1.0±0.2 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–10 t
- Oil, water and corrosion resistance
- Robust pressure-bearing structure with simplified installation
- High response frequency
Specifications
| Capacity | 0.05t; 0.1t; 0.2t; 0.5t; 1t; 2t; 5t; 10t |
|---|---|
| Output | mV/V (1.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.1% F.S. |
| Repeatability | ≤0.1% F.S. |
| Hysteresis | ≤0.1% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.05% F.S./10 °C / ≤0.05% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 380±30 Ω (750±50 Ω) / 350±5 Ω (700±10 Ω) |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | ØA 54 × 34 (0.05–1 t) or ØA 95 × 55 (2–10 t); see table |
| Mounting | 4×M5 (0.05–1 t) or 8×M10 (2–10 t) top and bottom; ØH through holes |
| Connection | Ø3×4 m / Ø5×4 m |
Capacity options and dimensions (mm)
| Capacity | A | B | C | D | E | F | G | H | K | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 / 0.1 / 0.2 / 0.5 / 1 t | 54 | 50 | 34 | 8.5 | 5 | 13 | 47 | 5.5 | 42 | 4×M5 | 8 |
| 2 / 5 / 10 t | 95 | 90 | 55 | 15 | 5.5 | 20 | 72 | 11 | 70 | 8×M10 | 10.5 |
Applications
Tension and compression testing instruments, automatic equipment and test fields such as insertion force testers, riveting machines, welding machines, hot/cold lamination machines and keyboard-switch feel testers.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
