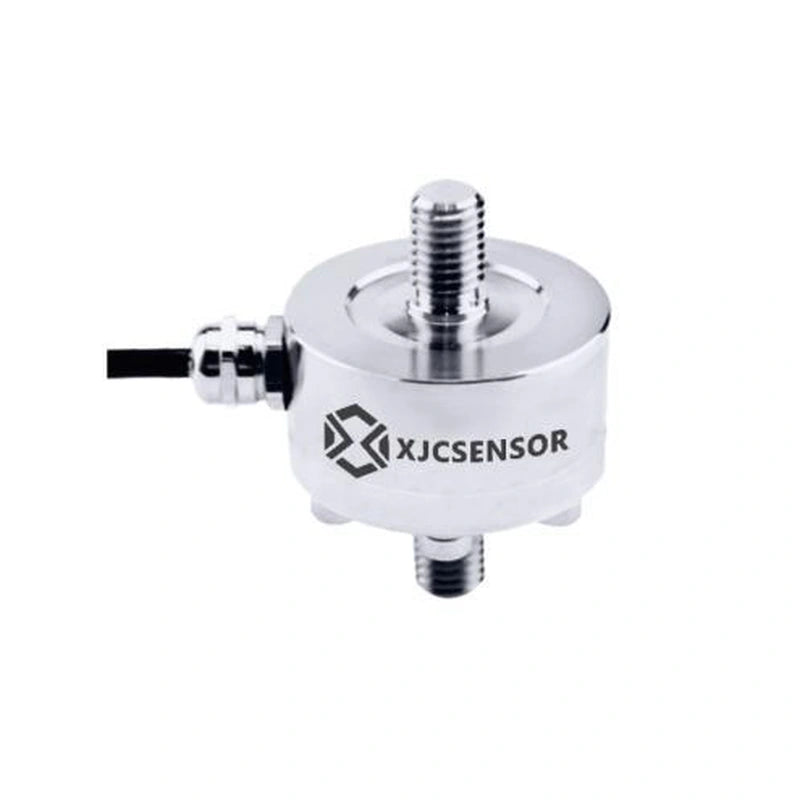

XJCSENSOR X-CS-51LW-B Tension-Compression Load Cell, Ø51 mm, M12 studs, 0.2–2 t
By XJCSENSOR
Model: X-CS-51LW-B
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview
The XJCSENSOR X-CS-51LW-B is a tension-compression load cell (Ø51 × 71 overall mm), available from 0.2t to 2t, with mV/V (1.0±0.2 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–2 t
- Oil, water and corrosion resistance
- Robust pressure-bearing structure with simplified installation
- High response frequency
Specifications
| Capacity | 0.2t; 0.5t; 1t; 2t |
|---|---|
| Output | mV/V (1.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.1% F.S. |
| Hysteresis | ≤0.5% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 750±50 Ω / 700±10 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø51 × 71 overall (16 + 28 + 16); Ø25 hub |
| Mounting | M12 threaded studs both ends; 14 across flats |
| Connection | Ø4×3 m |
Capacity options
0.2t; 0.5t; 1t; 2t
Applications
Impact force testing equipment, pneumatic and hydraulic equipment, powder metallurgy industry.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
🛠
