Product details
Overview

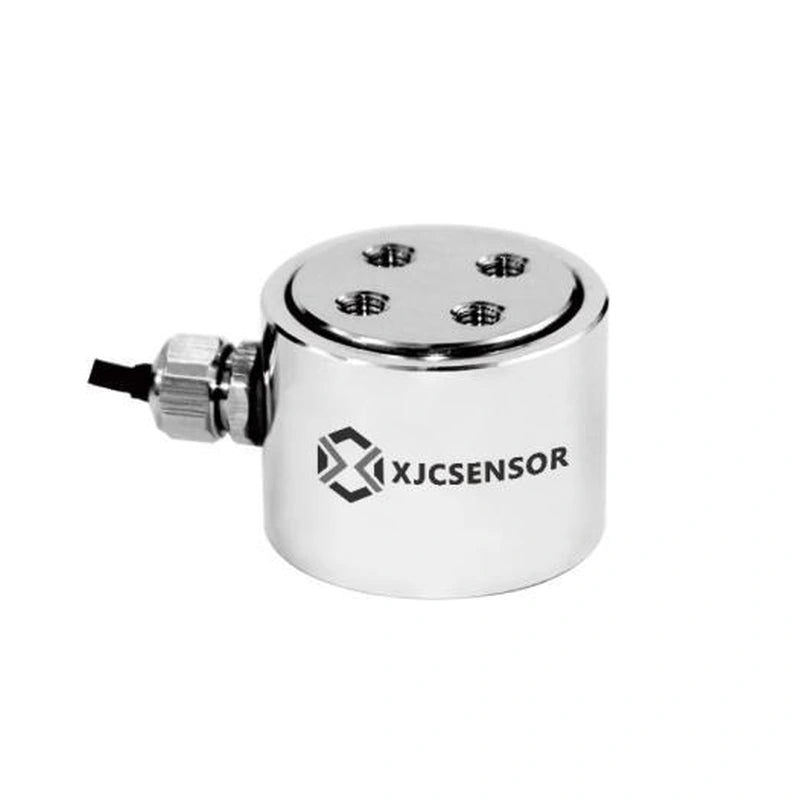

The XJCSENSOR X-C08-H30 is a column compression load cell (Ø31 × 30 mm), available from 5kg to 500kg, with mV/V (2.0±0.2 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–500 kg
- Robust pressure-bearing structure with simplified installation
- Stainless steel construction
- High response frequency
Specifications
| Capacity | 5kg; 10kg; 20kg; 50kg; 100kg; 300kg; 500kg |
|---|---|
| Output | mV/V (2.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.2% F.S. |
| Hysteresis | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP54 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.1% F.S./10 °C / ≤0.1% F.S./10 °C |
| Creep (30 min) | ≤0.2% F.S. |
| Input / output impedance | 380±30 Ω / 350±5 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø31 × 30 (29) |
| Mounting | 4×M5 depth 5 EQS on Ø18 PCD, top and bottom |
| Connection | Ø3×4 m |
Capacity options
5kg; 10kg; 20kg; 50kg; 100kg; 300kg; 500kg
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
