XJCSENSOR X-C08-B Column Compression Load Cell, Ø50 mm, 0.1–5 t
By XJCSENSOR
Model: X-C08-B
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview

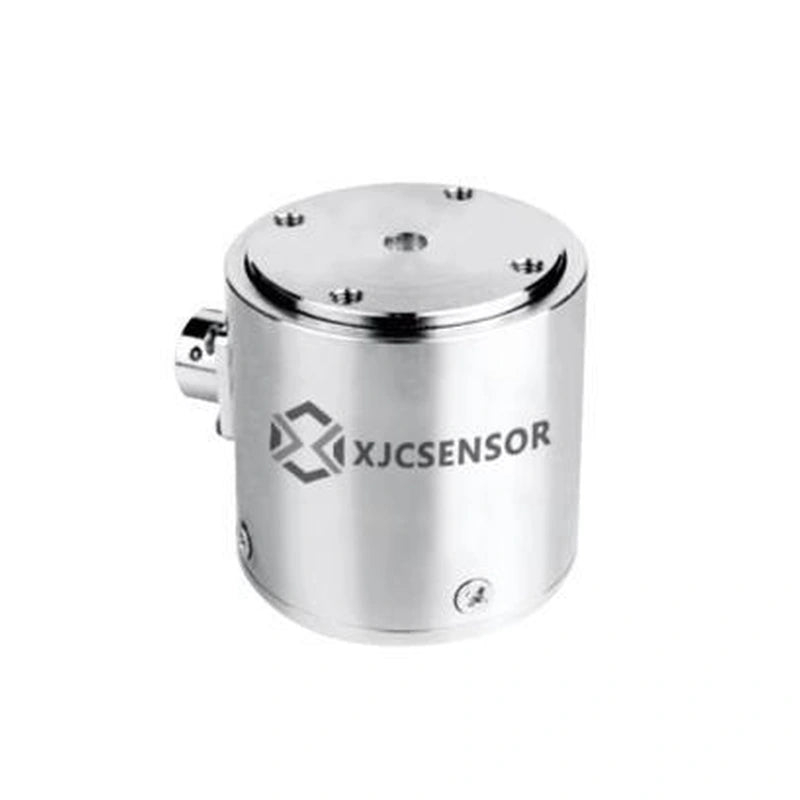

The XJCSENSOR X-C08-B is a column compression load cell (Ø50 mm), available from 0.1t to 5t, with mV/V (2.0±0.2 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–5 t
- Robust pressure-bearing structure with simplified installation
- Stainless steel construction
- High response frequency
Specifications
| Capacity | 0.1t; 0.5t; 1t; 2t; 5t |
|---|---|
| Output | mV/V (2.0±0.2 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.1% F.S. |
| Hysteresis | ≤0.2% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP54 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.1% F.S./10 °C / ≤0.1% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 380±30 Ω (1400±10 Ω) / 350±10 Ω (1400±10 Ω) |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø50 (Ø43 step) × 50 (48); top cable gland |
| Mounting | 4×M4 depth 6 EQS on Ø36 PCD, top and bottom; Ø6 depth 3 centre |
| Connection | Ø5×4 m |
Capacity options
0.1t; 0.5t; 1t; 2t; 5t
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
