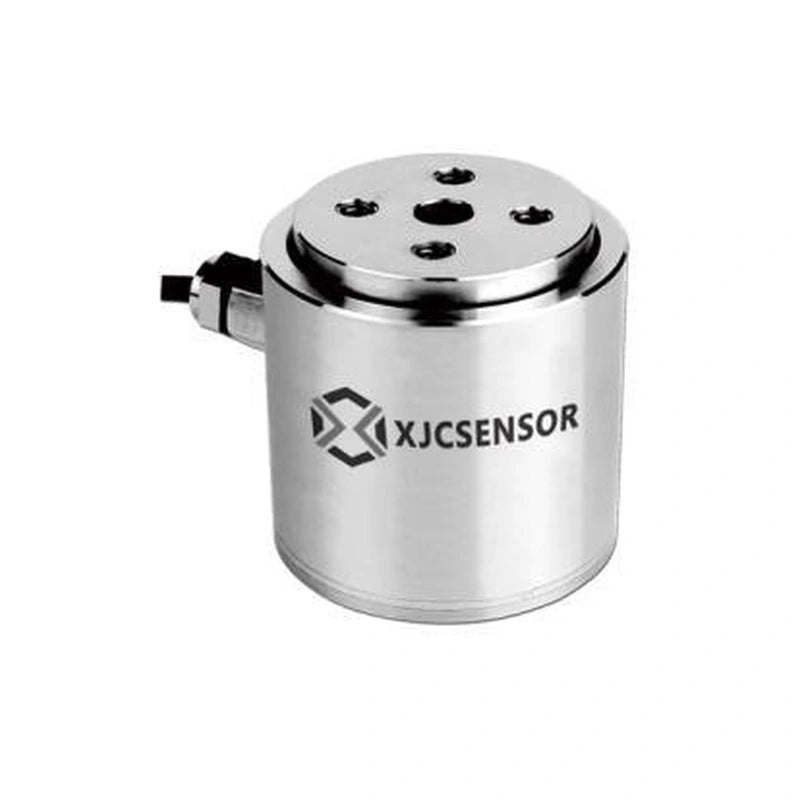

XJCSENSOR X-C08 Column Compression Load Cell, Ø38 mm, 5–100 kg, 0.05% class
By XJCSENSOR
Model: X-C08
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-C08 is a column compression load cell (Ø38 × 38 mm), available from 5kg to 100kg, with mV/V (1.0–2.0 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–100 kg
- Robust pressure-bearing structure with simplified installation
- Stainless steel construction
- High response frequency
Specifications
| Capacity | 5kg; 10kg; 20kg; 50kg; 100kg |
|---|---|
| Output | mV/V (1.0–2.0 mV/V rated output) |
| Nonlinearity | ≤0.05% F.S. |
| Repeatability | ≤0.05% F.S. |
| Hysteresis | ≤0.05% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP54 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.1% F.S./10 °C / ≤0.1% F.S./10 °C |
| Creep (30 min) | ≤0.05% F.S. |
| Input / output impedance | 380±30 Ω / 350±10 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø38 × 38 (body 35) |
| Mounting | 4×M4 depth 5 EQS on Ø18 PCD, top and bottom; Ø6 depth 4 centre |
| Connection | Ø3×4 m |
Capacity options
5kg; 10kg; 20kg; 50kg; 100kg
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
