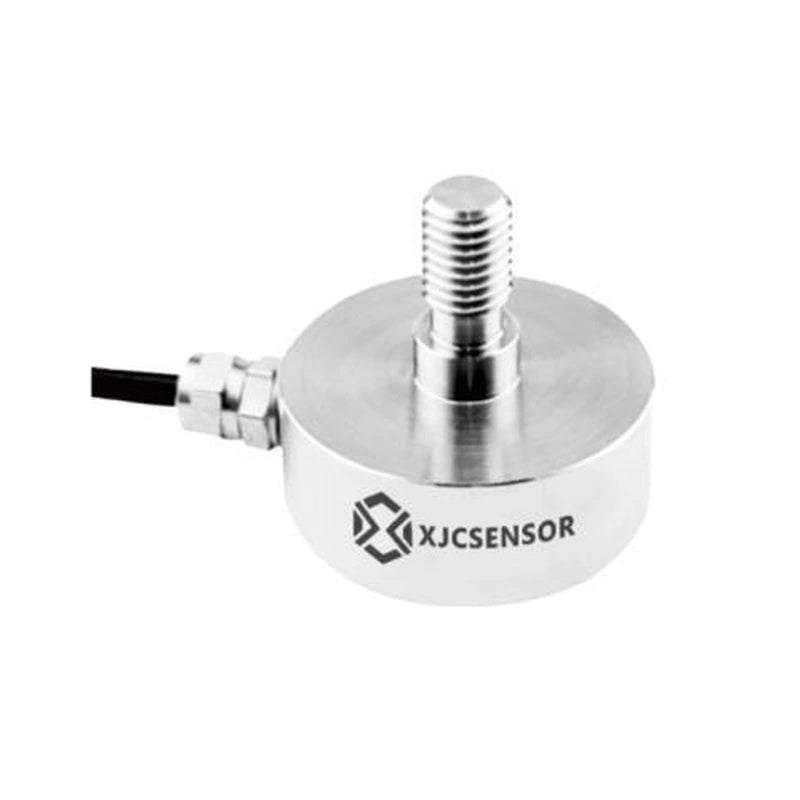

XJCSENSOR X-C04 Compression Load Cell, Ø51 mm with M12 stud, 0.05–5 t
By XJCSENSOR
Model: X-C04
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-C04 is a compression load cell (Ø51 × 39 overall mm), available from 0.05t to 5t, with mV/V (1.0–1.5 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–5 t
- Oil, water and corrosion resistance
- Robust pressure-bearing structure with simplified installation
- Stainless steel construction
- High response frequency
Specifications
| Capacity | 0.05t; 0.1t; 0.2t; 0.5t; 1t; 2t; 5t |
|---|---|
| Output | mV/V (1.0–1.5 mV/V rated output) |
| Nonlinearity | ≤0.3% F.S. |
| Repeatability | ≤0.1% F.S. |
| Hysteresis | ≤0.3% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 750±50 Ω / 700±10 Ω |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø51 × 39 overall (body 20 + M12 stud 16) |
| Mounting | 4×M5 depth 8 EQS on Ø42 PCD at 45°; M12 load stud |
| Connection | Ø4×4 m |
Capacity options
0.05t; 0.1t; 0.2t; 0.5t; 1t; 2t; 5t
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
