XJCSENSOR X-C03-80 Compression Load Cell, Ø80 mm, 0.2–30 t
By XJCSENSOR
Model: X-C03-80
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
Product details
Overview

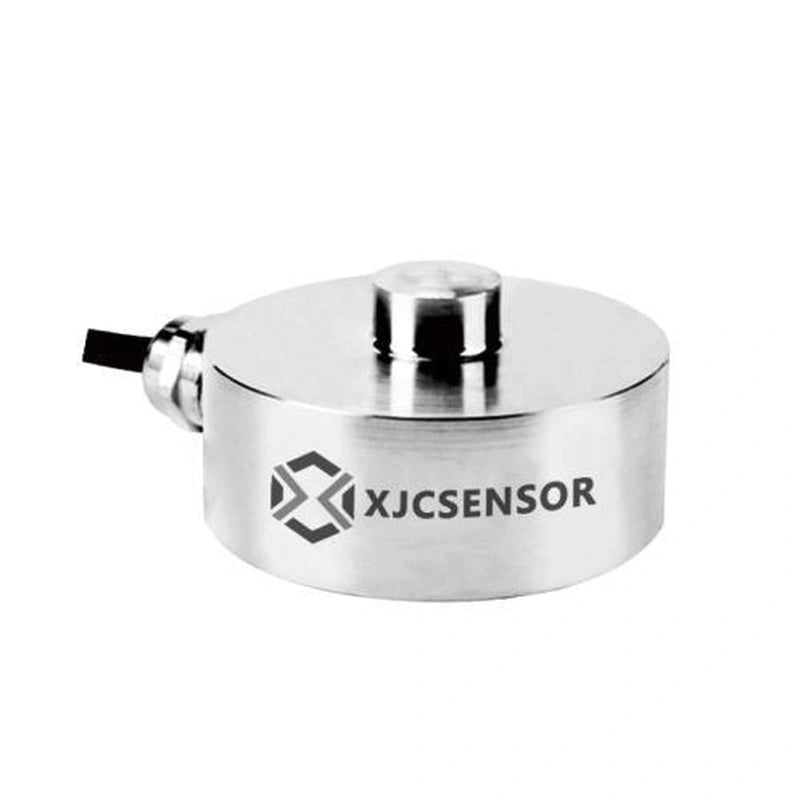

The XJCSENSOR X-C03-80 is a compression load cell (Ø80 × 44 mm), available from 0.2t to 30t, with mV/V (1.0–1.5 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–30 t
- Oil, water and corrosion resistance
- Robust pressure-bearing structure with simplified installation
- Stainless steel construction
- High response frequency
Specifications
| Capacity | 0.2t; 0.5t; 1t; 2t; 5t; 10t; 20t; 30t |
|---|---|
| Output | mV/V (1.0–1.5 mV/V rated output) |
| Nonlinearity | ≤0.2% F.S. |
| Repeatability | ≤0.2% F.S. |
| Hysteresis | ≤0.5% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.5% F.S. |
| Input / output impedance | 380±30 Ω (750±50 Ω) / 350±10 Ω (700±10 Ω) |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø80 × 44 (body 32); Ø22 boss with SR button |
| Mounting | 4×M8 depth 15 EQS on Ø68 PCD at 45° |
| Connection | Ø5×4 m |
Capacity options
0.2t; 0.5t; 1t; 2t; 5t; 10t; 20t; 30t
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
🛠
