Product details
Overview

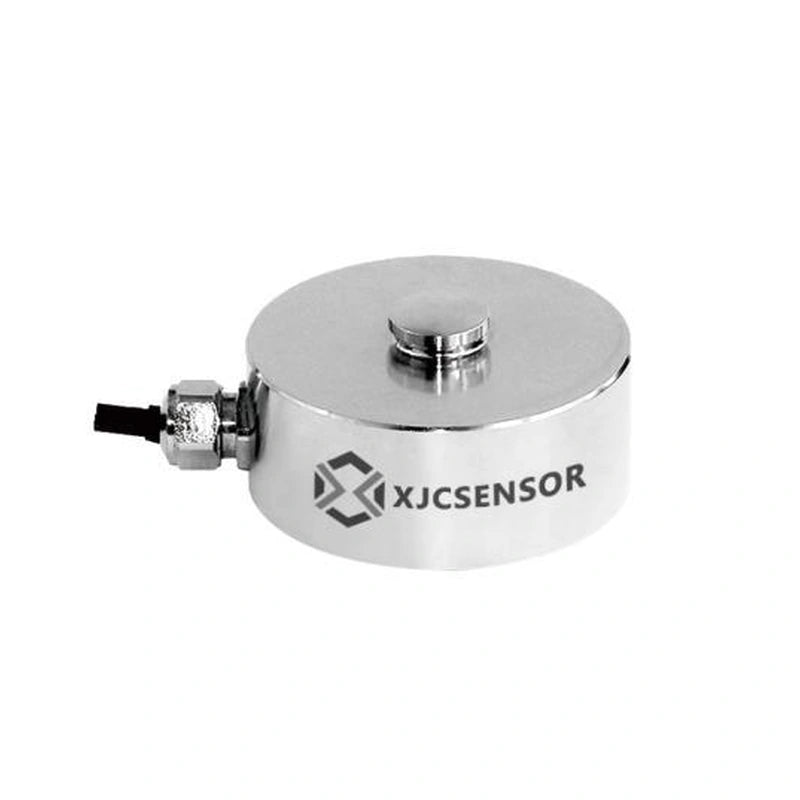

The XJCSENSOR X-C02-4M is a compression load cell (Ø82 × 44 mm), available from 0.1t to 100t, with mV/V (1.0–1.5 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–100 t
- Strong sealing: oil-proof, moisture-proof and corrosion-resistant
- Capsule structure with robust pressure-bearing design and simplified installation
- Stainless steel construction
- High response frequency
Specifications
| Capacity | 0.1t; 0.2t; 0.5t; 1t; 2t; 5t; 10t; 15t; 20t; 30t; 50t; 100t |
|---|---|
| Output | mV/V (1.0–1.5 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.5% F.S. |
| Hysteresis | ≤0.5% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 380±30 Ω (750±50 Ω) / 350±10 Ω (700±10 Ω) |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Stainless steel |
| Dimensions | Ø82 × 44 (0.1–10 t) up to Ø165 × 82 (50–100 t); see table |
| Mounting | 4×M8/M10 depth 15 EQS at 45° (see table) |
| Connection | Ø5×4 m |
Capacity options and dimensions (mm)
| Capacity (T) | A | B | C | D | E | F | M |
|---|---|---|---|---|---|---|---|
| 0.1–10 T | 82 | 44 | 32 | 22 | 50 | 68 | M8 |
| 15 / 20 T | 100 | 48 | 36 | 28 | 100 | 80 | M8 |
| 30 T | 126 | 54 | 40 | 35 | 100 | 101 | M10 |
| 50–100 T | 165 | 82 | 60 | 60 | 150 | 144 | M10 |
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
