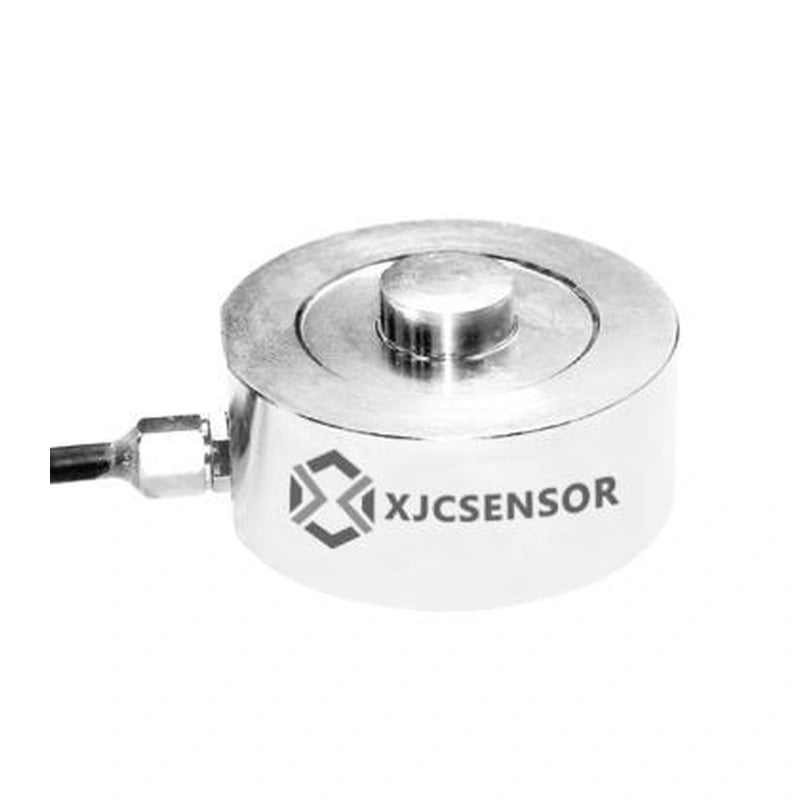

XJCSENSOR X-C02-3M Compression Load Cell, Ø20–51 mm, 5 kg–12 t
By XJCSENSOR
Model: X-C02-3M
Your Configuration
- Software, hardware, and deployment support can be quoted together.
- Knoxlabs can help with configuration, integration, shipping and support.
🛠
Deployment Expertise
Product specialists on staff
⚙
Device Configuration
Provisioned & ready to use
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Shipped worldwide
Product details
Overview
The XJCSENSOR X-C02-3M is a compression load cell (Ø20 × 12 mm), available from 5kg to 12t, with mV/V (1.0–1.5 mV/V rated output) output.
Features
- High-precision resistance strain gauge principle
- Force measurement range 0–12 t
- Capsule structure with robust pressure-bearing design and simplified installation
- Stainless steel construction
- Small size
- High response frequency
Specifications
| Capacity | 5kg; 10kg; 20kg; 50kg; 100kg; 200kg; 500kg; 1t; 2t; 5t; 10t; 12t |
|---|---|
| Output | mV/V (1.0–1.5 mV/V rated output) |
| Nonlinearity | ≤0.5% F.S. |
| Repeatability | ≤0.1% F.S. |
| Hysteresis | ≤0.5% F.S. |
| Zero balance | ±2% F.S. |
| Excitation | 5–10 VDC (max 10 V DC) |
| Protection | IP64 |
| Safe / ultimate load | 150% F.S. / 200% F.S. |
| Operating temperature | −20~80 °C |
| Compensated temperature | −10~40 °C |
| Temperature effect on output / zero | ≤0.2% F.S./10 °C / ≤0.2% F.S./10 °C |
| Creep (30 min) | ≤0.1% F.S. |
| Input / output impedance | 1000±100 Ω (750±50 Ω) / 1000±100 Ω (700±10 Ω) |
| Insulation | ≥5000 MΩ/100 VDC |
| Fatigue life | Full scale more than 1 million cycles |
| Material | Alloy steel / Stainless steel |
| Dimensions | Ø20 × 12 (5–100 kg) up to Ø51 × 30 (5–12 t); SR15–SR50 button (see table) |
| Mounting | 3×M3–M8 EQS on bottom face (see table) |
| Connection | Ø2×4 m / Ø3×4 m |
Capacity options and dimensions (mm)
| Capacity | D1 | D2 | D3 | H1 | H2 | SR | D | M |
|---|---|---|---|---|---|---|---|---|
| 5 kg–100 kg | 20 | 2.5 | 15.5 | 12 | 10 | 15 | 4.5 | M3 |
| 10 kg–200 kg | 25 | 6 | 19 | 16 | 13.5 | 30 | 5 | M4 |
| 100 kg–1 T | 32 | 7 | 25.4 | 16 | 13.5 | 30 | 5.3 | M5 |
| 2 T–5 T | 38 | 11 | 30 | 20 | 16 | 50 | 5 | M5 |
| 5 T–12 T | 51 | 15 | 41 | 30 | 25 | 50 | 7.5 | M8 |
Applications
Automotive, medical, robot, electronic, mechanical and automation equipment; small-space force measurement such as keyboard-switch feel testers, hot/cold lamination press force and dexterous-hand grasping force.
Dimensions and capacity can be customized on request. Quote-only; contact Knoxlabs for pricing and lead time.
